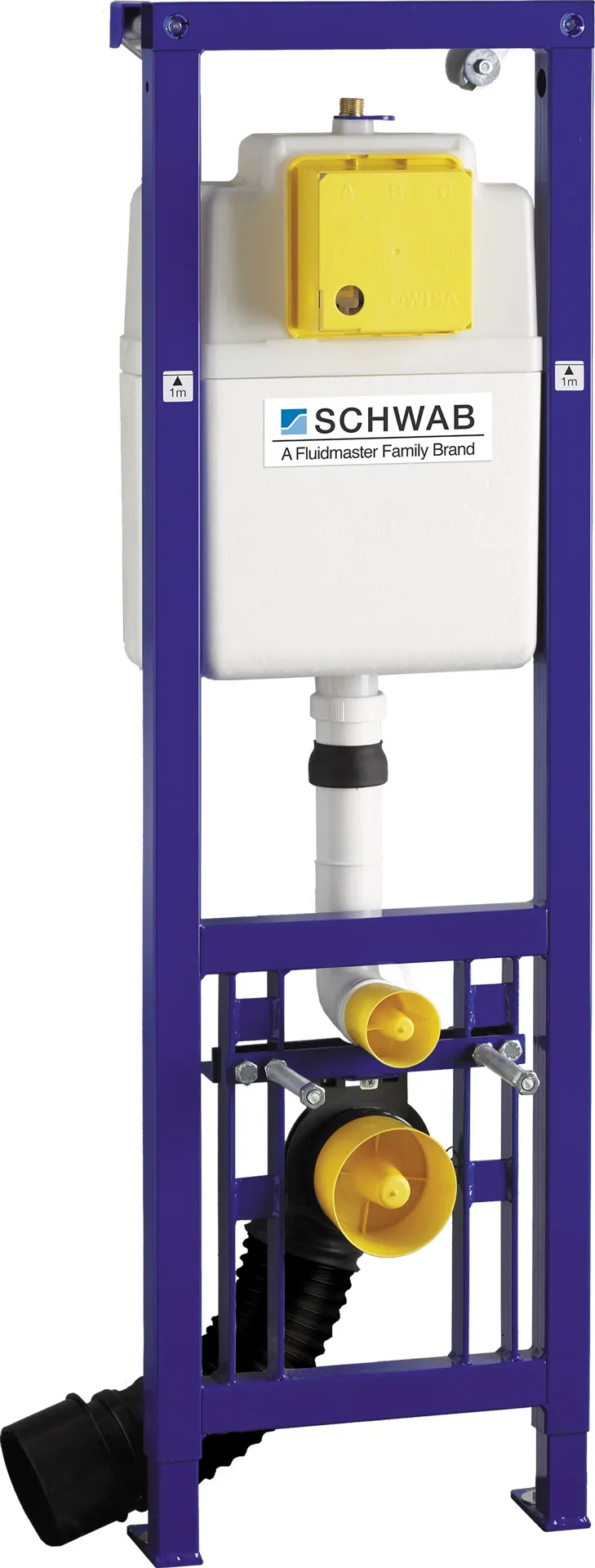

DUPLO WC 380 VARIO
Product number:
4060452735
EAN:
8711778213852
- Installation in prefabricated walls, pre-wall installation in dry walls, universal installation into solid walls
- Supporting, blue powder coated WC element, square profile 40 x 40 mm with pre-assembled flushing cistern SCHWAB 380 UP
- Frontal flushing, start-stop flushing (6 l) or dual flushing (3/6 l)
- Adjustable flushing volume between 6 and 7.5 l
- Pre-mounted filing elements and adjustable support legs (0–200 mm)
- Water connection possibility in four positions
- Fully insulated against condensation
- Silent hydraulic filling valve (noise emission class 1 ISO 3822)
- Variable height adjustment of the toilet (+ 100 mm) after completed pre-wall installation
- Mounting height WC including the seat according to DIN 18040-1 / DIN 18040-2: 460 – 480 mm
- Depth adjustable drain elbow (+/-20 mm)
- Concealed flushing cistern equipped with preassembled angle valve – top center
- Water connection G 1/2
- PE wall drain elbow Ø 90 mm with a gasket
- PE eccentric adapter reduction piece Ø 90/110 mm with a gasket
- Set with VARIO cover plate (PE)
- Complete installation and fixing material
- The flushing plate needs to be ordered separately
- Possible installation of flushing plates: NEA, VERIA, ATENA, ARTE, ITEA
| Adjustable depth: | Yes |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | Yes |
| Adjustable toilet height: | Yes |
| Adjustable width: | No |
| Depth: | 160 to 200 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 7.5 l |
| Frame suitable for wc with offset >60cm: | Yes |
| Frame suitable for wc with offset >60cm: | Yes |
| Height: | 1300 to 1500 mm |
| Load capacity >=400 kg according to EN 997: | Yes |
| Material: | Steel |
| Material flushing reservoir: | Plastic |
| Outer pipe diameter drainage: | 110 mm |
| Outer pipe diameter tap water: | 20.96 mm |
| Programmable with remote control: | No |
| Quality class flushing reservoir: | Polypropylene (PP) |
| Reservoir type: | 380 |
| Self-bearing construction: | Yes |
| Series: | 380 |
| Size of tap water connection: | 1/2 inch |
| Spacer under reservoir: | No |
| Suitable for drywall: | Yes |
| Suitable for electrical operation: | Yes |
| Suitable for front operation: | Yes |
| Suitable for infrared operation: | No |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | Yes |
| Suitable for radar operation: | No |
| Suitable for sanitary installation wall system: | Yes |
| Suitable for shelf operation: | No |
| Suitable for shower toilet: | No |
| Suitable for solid wall: | Yes |
| Surface protection: | Coated |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Width: | 380 to 380 mm |
| With anti-condensation insulation: | Yes |
| With bracket suitable for floor mounting: | No |
| With bracket suitable for high wall mounting: | No |
| With bracket suitable for low wall mounting: | No |
| With contact sound insulation set: | Yes |
| With control panel: | No |
| With drainage bend: | Yes |
| With front cladding: | No |
| With inlet and outlet fittings: | Yes |
| With mounting material for the element: | Yes |
| With mounting material for the toilet: | Yes |
| With stop valve: | Yes |
| Product number: | Description | Image |
|---|---|---|
| 8035432795 | Fill valve HVK G 3/8 brass shank |
 |
| 8050801525 | Flush valve |
 |

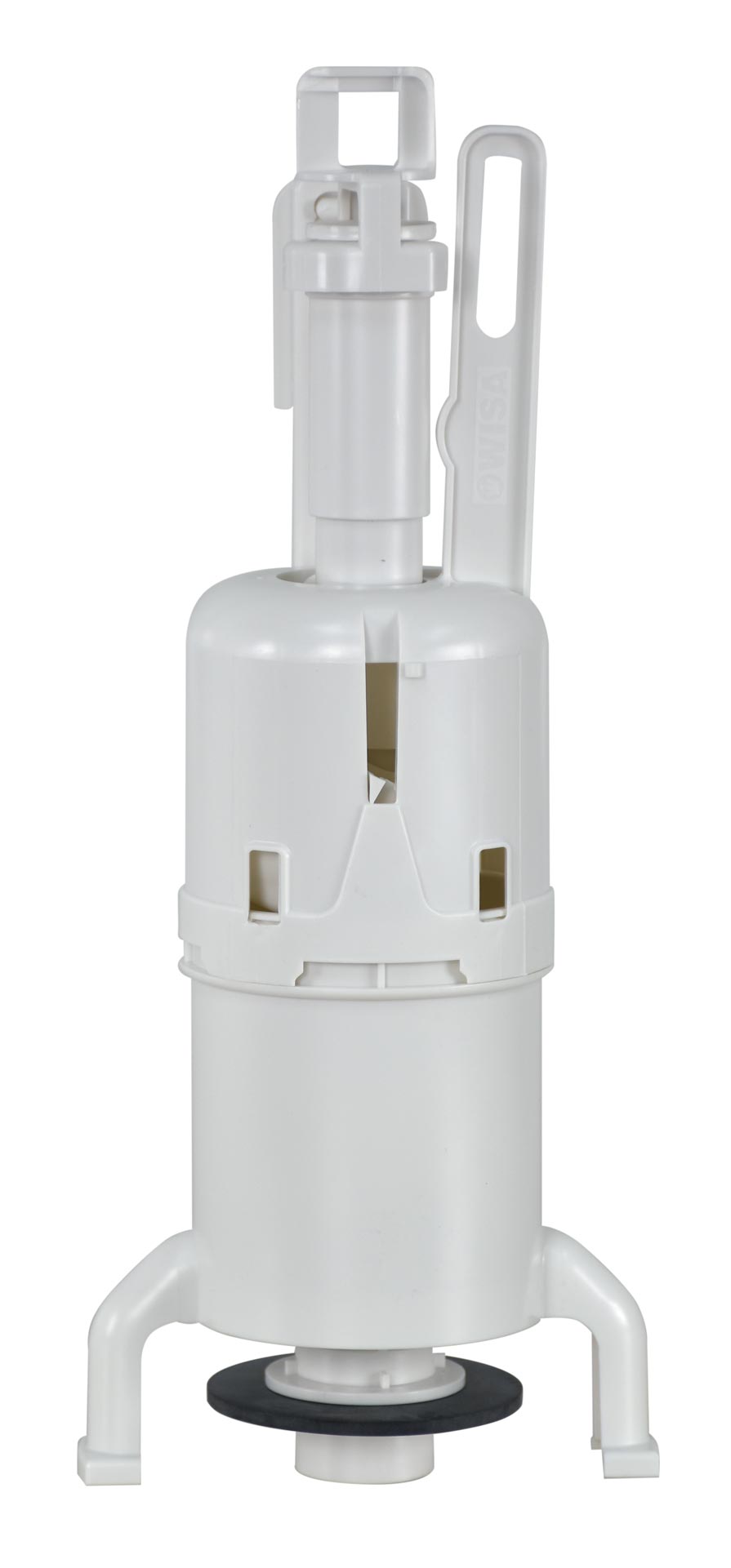

| 8050801525FM | Flush valve with rubber seal |
 |
| 8050801522 | Flush valve (DFF) |
 |
| 8050801527 | FLUSH VALVE, CISTERN 4/2 L |
 |
| 1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
 |
| 8050887175 | Tightening nut |
 |
| 8050887113 | Cistern lid, cisterns XS, 380, 3800 |
 |
| 8050887079 | Bridge for fill valve |
 |
| 8050390034 | Clamp with control hooks, cisterns 3800/380, mechanical |
 |
| 8050390032 | Clamp with control hooks, pneumatic |
 |
| 8050390052 | DFF clamp with control hooks |
 |
| 8050390051 | SF clamp with control hocks |
 |
| 8050390108 | Set of fixation pins and control pins for XS, 380, 3800 FI plates |
 |
| 8050390109 | Mounting and regulation pin set for DUO plates, cisterns 3800/380 |
 |
| 8050887097 | Clamp for mounting the drain elbow |
 |
| 8050887145 | Inspection opening protection, front |
 |
| 8050887355 | Flush pipe with tongue |
 |
| 8050390061 | Set of rubber seals for 90 mm drain pipe and drain elbow |
 |
| 8050390090 | Discharge elbow Ø 90/90 mm |
 |
| 8050390091 | Adapter reduction piece Ø 90/110 mm |
 |
| 8050390080 | WC connection kit Ø 90 mm, L=230 mm |
 |
| 8050390081 | Extra long WC connection kit Ø 90 mm, L=300 mm |
 |
| 8050802329 | Flexible hose |
 |
| 8050802325 | Flexible hose with G3/8 F - G1/2 Eurocone + ball valve |
 |
| 8050802326 | FLEXIBLE CONNECTION TUBE, G 1/2 INTERIOR |
 |
| 8050390037 | Bag of rubber gaskets for flush valve 28 x 65 x 3 (5 pc.) |
 |
