EXPOSED CISTERN AP210, white




Product number: 4060421600
EAN: 8711778213128


  • Exposed flushing cistern
  • Wall mounting, high installation
  • Flushing volume 6(6-9) L
  • Water connection possible on left and right side
  • Insulated against condensation
  • Color: white
  • Flushing operation on the right side
  • Silent Hydraulic Fill valve
  • Cover
  • Mounting material
  • Stainless steel flushing pipe clamp with buffer
  • Connector between flushing pipe and nozzle
  • Glue
  • Without corner valve, pull chain, breaker bar and flushing pipe
  • Downloads

    Adjustable flushing water quantity: Yes
    Colour: White
    Depth: 166 mm
    Filling valve noise class: Group I, , Group I,
    Flushing: Interruptible
    Flushing water quantity: 6 to 9 l
    Height: 315 mm
    KIWA certified: Yes
    Material flushing reservoir: Plastic
    Material quality: Other
    Operation: Push button
    Outer pipe diameter reservoir side flushing bend: 50 mm
    Outer pipe diameter tap water: 16.66 mm
    Reservoir position: Low
    Series: AP210
    Size of tap water connection: 3/8 inch
    Sound class according to EN ISO 3822: Group I,
    Suitable for close coupled toilet: No
    Suitable for electrical operation: No
    Suitable for manual operation: Yes
    Suitable for pneumatic operation: No
    Tap water connection: External thread
    Warranty: 10 years
    Water connection, bottom: No
    Water connection, left: Yes
    Water connection, rear: No
    Water connection, right: Yes
    Water connection, top: No
    Width: 420 mm
    With anti-condensation insulation: Yes
    With flushing bend: Yes
    With stop valve: No

    Product number: Description Image

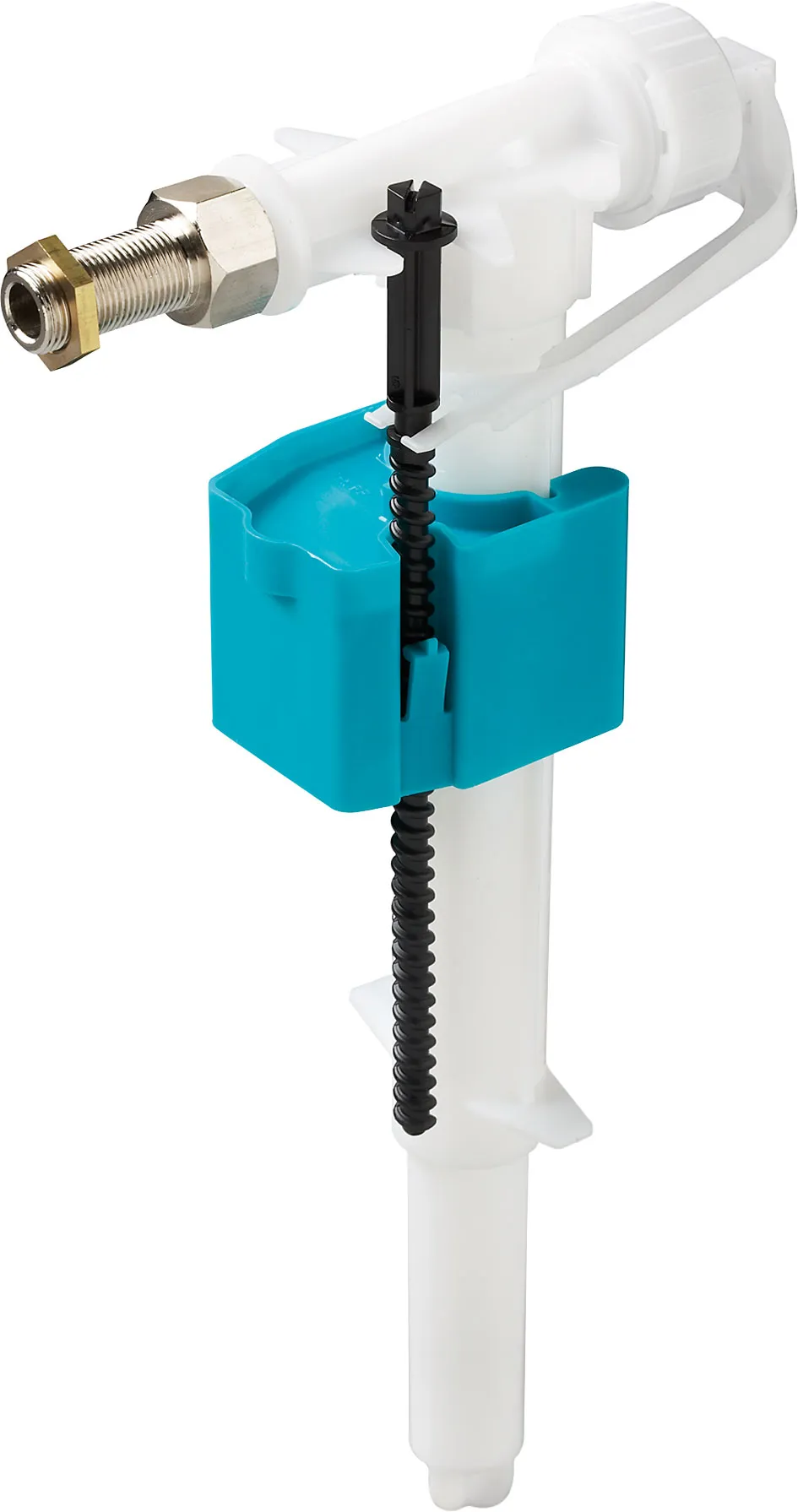

    8035432572 FILL VALVE HVK G 3/8
    8050800500 FLUSH VALVE WITH A RUBBER GASKET
    1411988440 FLUSH VALVE GASKET, RUBBER, 65 mm, hole 28,5 mm, black
    8050882450 FLUSHING CISTERN OUTLET SEAL
    8050800078 HOLDER (SCREW AND INSERT) WITH FLUSH PIPE GASKET

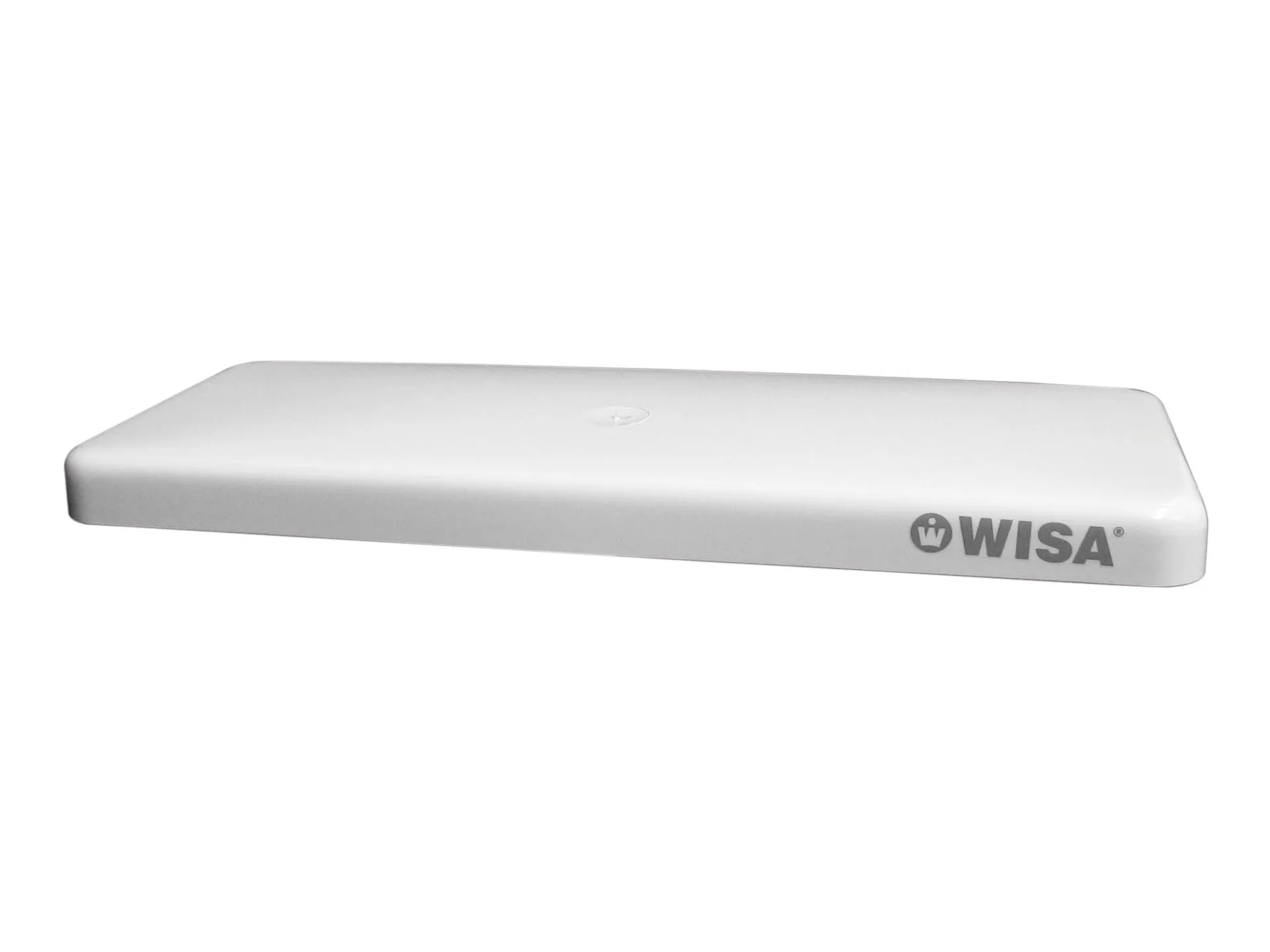

    8050411101 CISTERN COVER
    8050881400 BRIDGE
    8050882480 CLOSING CUP, white
    8050882430 NUT FOR FLUSH PIPE, white
    1409111901 SET OF FLUSH PIPE AND FLUSH PIPE ELBOW
    8050800080 FIXATION SET FLUSH PIPE

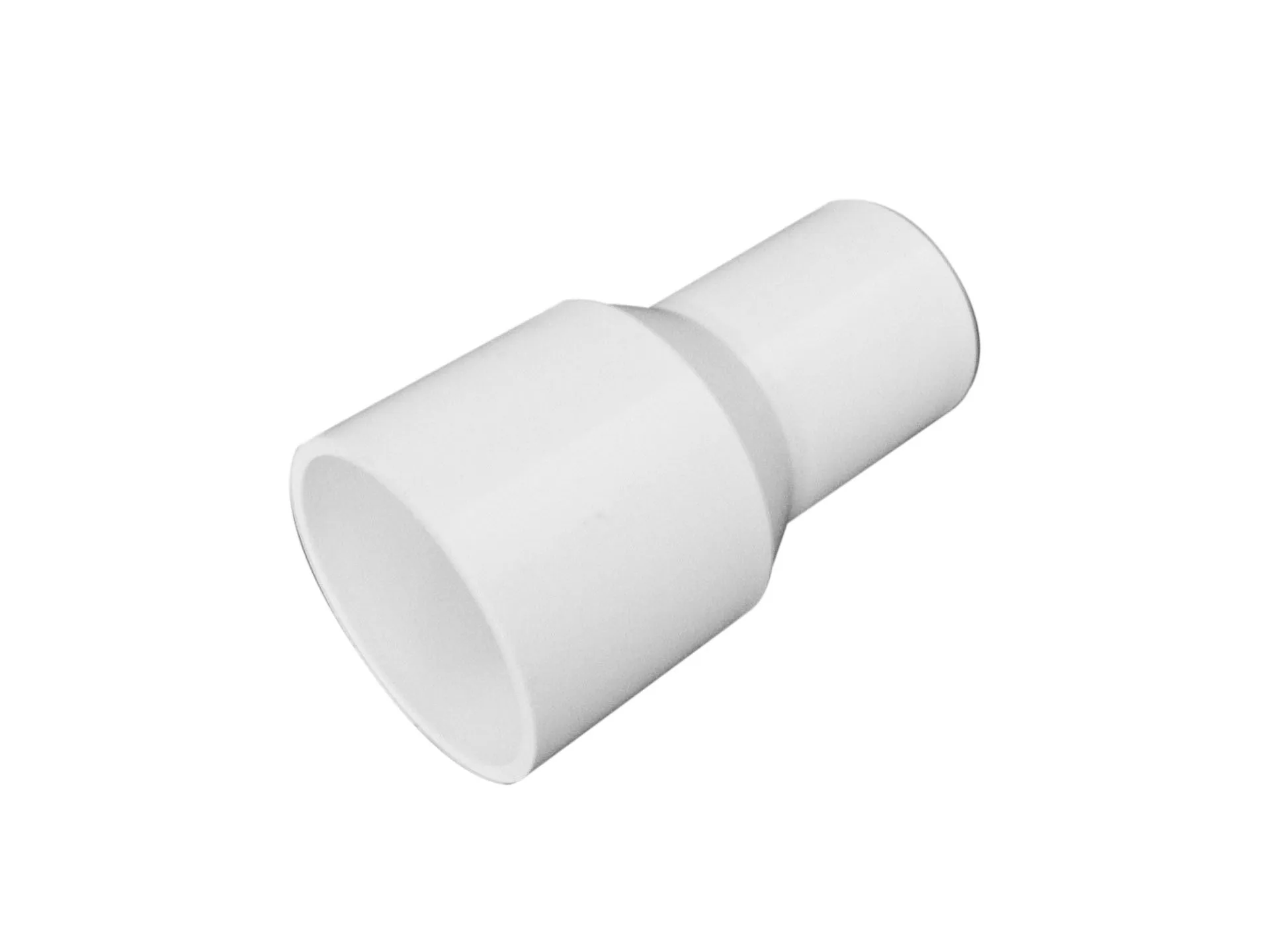

    8050882100 FLOW REDUCER, white

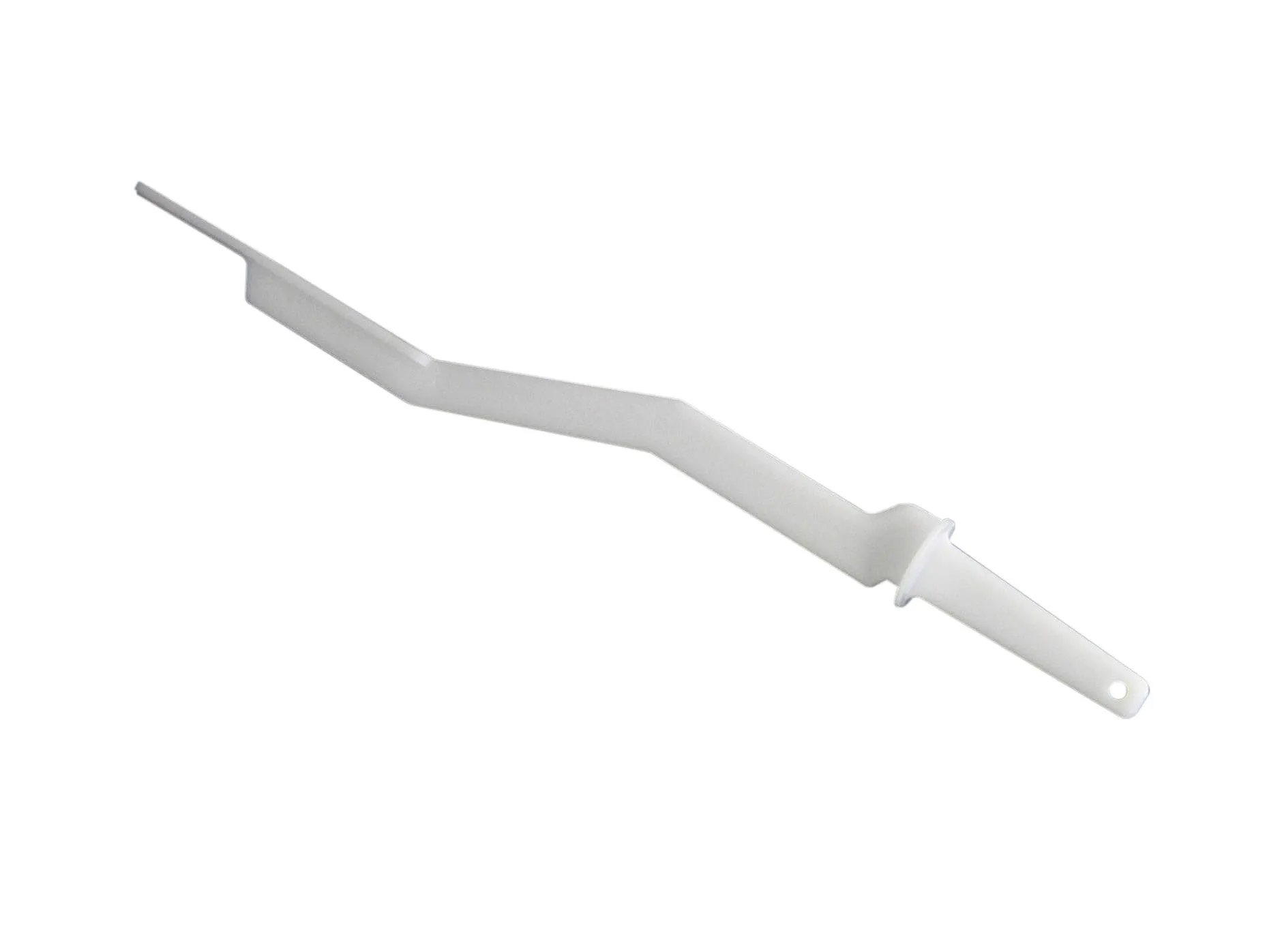

    8050882050 LEVER
    1409986070 PULL CHAIN
    8050421550 PULL BAR for high hanging exposed cisterns
    8050390037 BAG OF RUBBER GASKETS FOR FLUSH VALVE 28 x 65 x 3 (5 pc.)
    8050390025 BAG OF GASKETS FOR FLUSH PIPE (5 pc.)
    8050390067 CLOSING CAPS, white (5 pcs)
    8050390002 BAG OF NUTS FOR FLUSH PIPE, white (5 pc.)
    1409986000 FLUSH PIPE, white

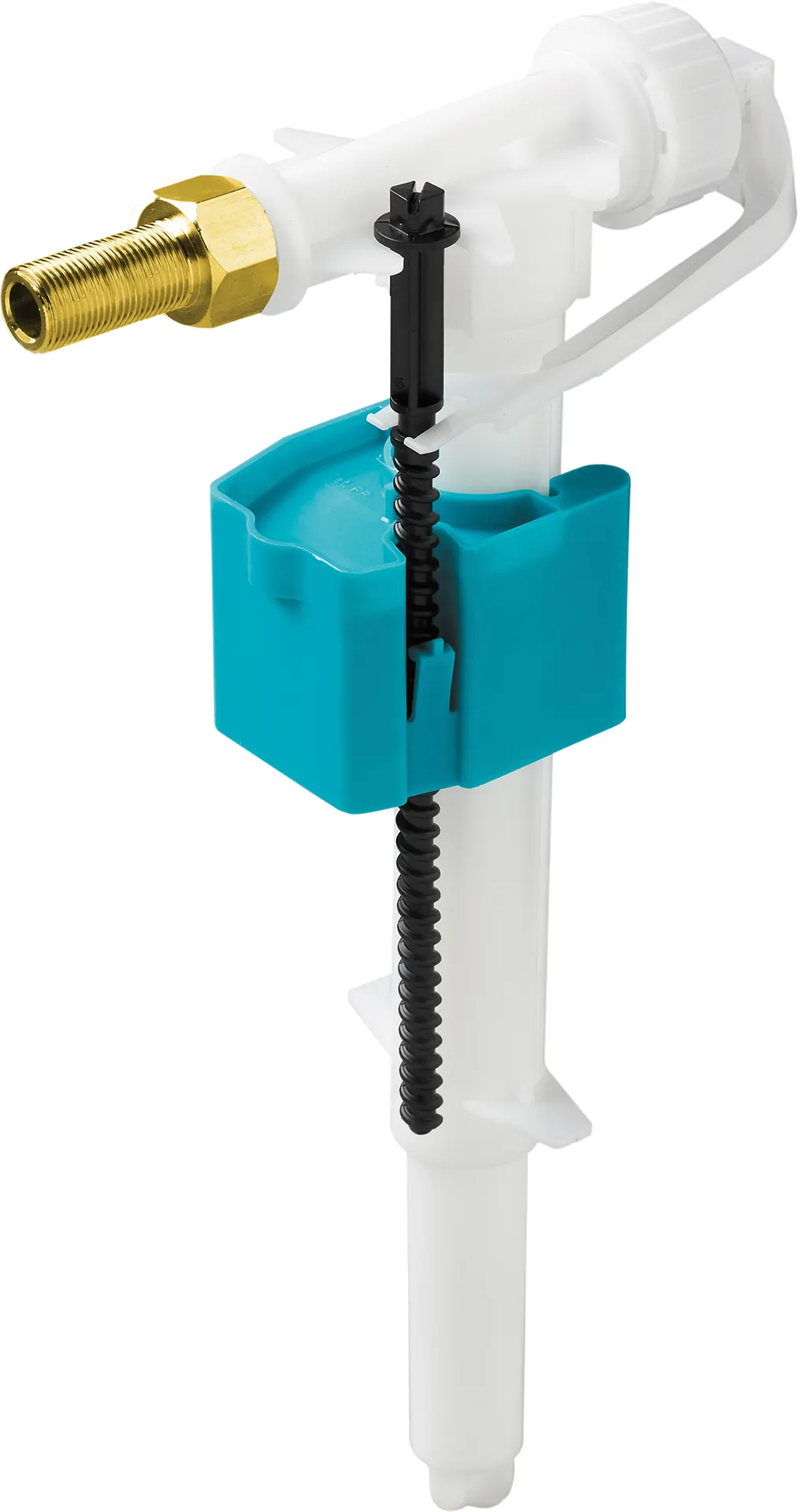

    8035432795 FILL VALVE HVK G 3/8 BRASS SHANK
