Exposed cistern AP220, white
Our exposed flushing cisterns are suitable for both new construction and renovations. They come in various styles, materials, designs, colors, and installation types to meet specific requirements.
All of our products are manufactured in compliance with EU regulations and come with a 10-year warranty (excluding rubber parts and electronics), along with a 25-year guarantee of spare parts availability.
All of our products are manufactured in compliance with EU regulations and come with a 10-year warranty (excluding rubber parts and electronics), along with a 25-year guarantee of spare parts availability.
Product number:
4060422640
EAN:
8711778213135
- Exposed flushing cistern
- Wall mounting, low-hanging
- Start-Stop flushing
- Flushing volume 6(6-9) L
- Water connection possible on left and right side
- Insulated against condensation
- Color: white
- Flushing operation in the center
- Quiet Hydraulic Fill valve
- Stop valve
- Chromed Cu water connection pipe
- Flush pipe connector
- Flush pipe 270 x 220 mm, Ø 50 / 44 mm
- Supplied parts for the installation of the flushing cistern
- EN 14055 - CL 1 - 6 - NL I - VR II
Adjustable flushing water quantity: | Yes |
---|---|
Colour: | White |
Depth: | 106 mm |
Filling valve noise class: | Group I, <=20 dB(A) |
Flushing: | Interruptible |
Flushing water quantity: | 6 to 9 l |
Height: | 355 mm |
KIWA certified: | Yes |
Material flushing reservoir: | Plastic |
Material quality: | Other |
Operation: | Push button |
Outer pipe diameter reservoir side flushing bend: | 50 mm |
Outer pipe diameter tap water: | 16.66 mm |
Reservoir position: | Low |
Series: | AP220 |
Size of tap water connection: | 3/8 inch |
Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
Suitable for close coupled toilet: | No |
Suitable for electrical operation: | No |
Suitable for manual operation: | Yes |
Suitable for pneumatic operation: | No |
Tap water connection: | External thread |
Warranty: | 10 years |
Water connection, bottom: | No |
Water connection, left: | Yes |
Water connection, rear: | No |
Water connection, right: | Yes |
Water connection, top: | No |
Width: | 512 mm |
With anti-condensation insulation: | Yes |
With flushing bend: | Yes |
With stop valve: | No |
Product number: | Description | Image |
---|---|---|
8035432572 | Fill valve HVK G 3/8 | |
8050800504 | Flush valve with rubber gasket, cisterns Fortuna, W 500/750/790, AP 200 | |
1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black | |

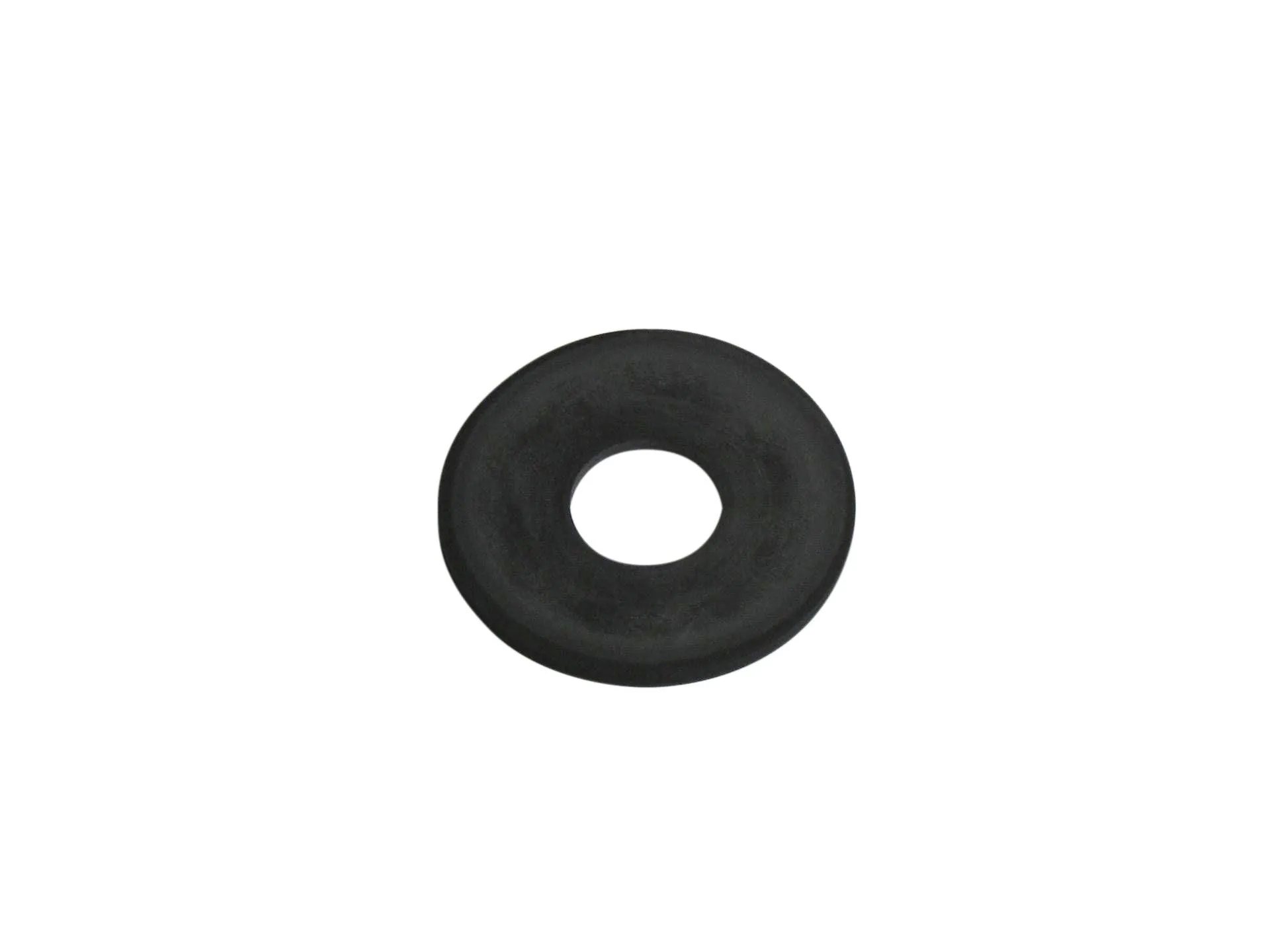

1411988436 | Flush valve rubber seal Ø 65 x 23,5 WISA 500/750 (old version till 07/1987) | |
8050882450 | Flushing cistern outlet seal | |

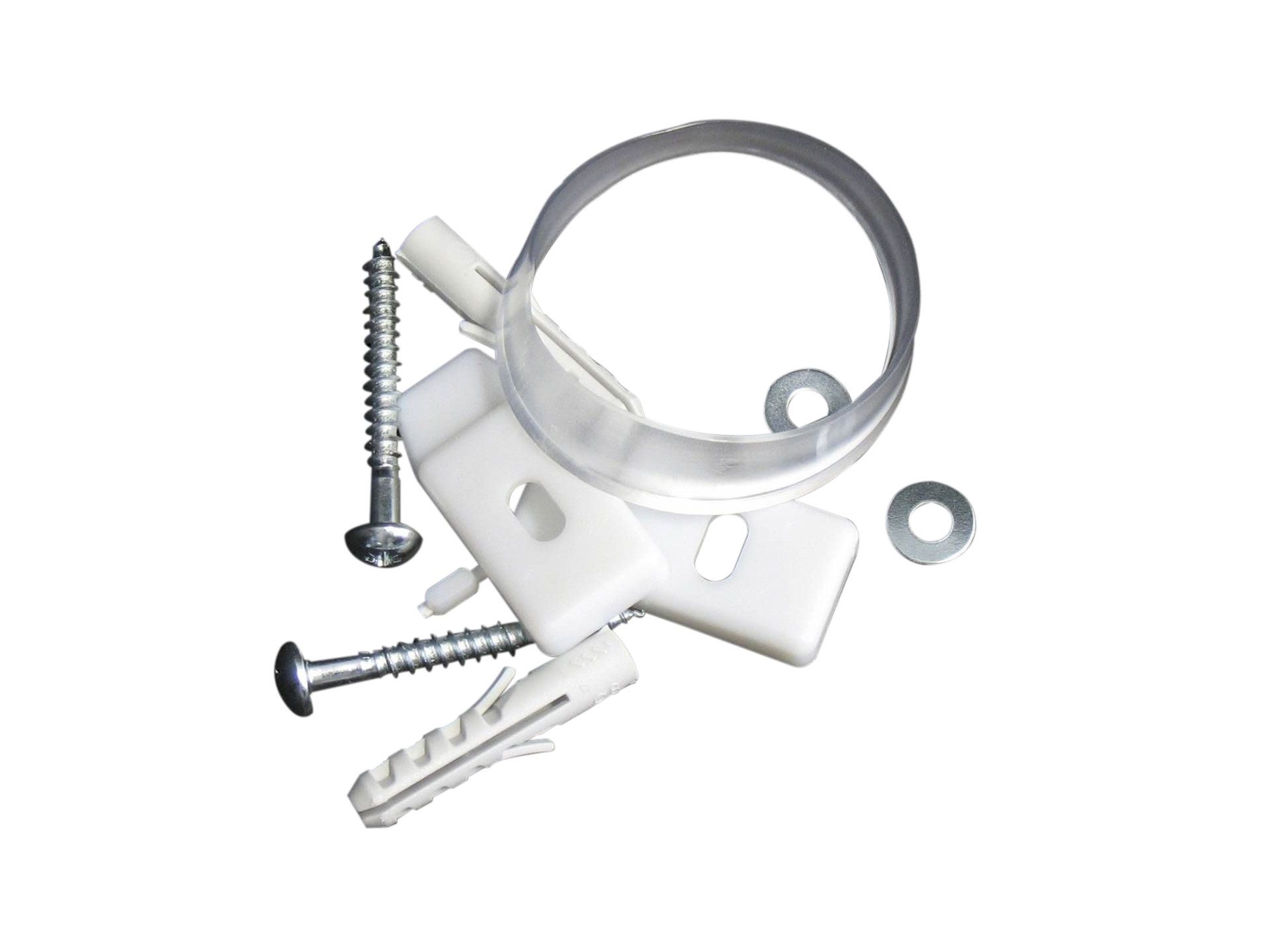

8050800078 | Holder (screw and insert) with flush pipe gasket | |

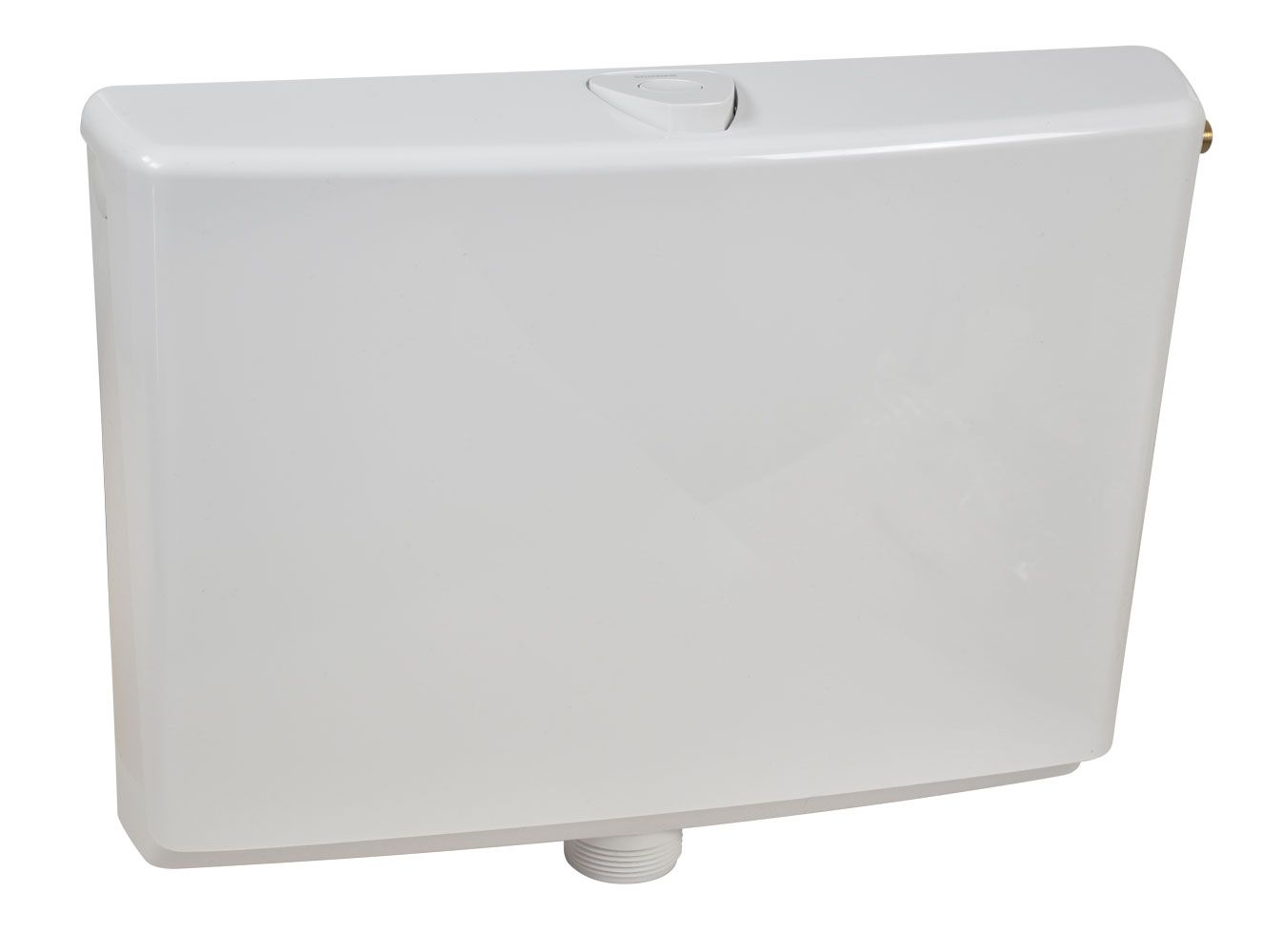

8050411201 | Cistern cover with function button, with flush interruption, white | |
8050411203 | Cistern cover with a function button, with flush interruption, beige | |
8050411214 | Cistern cover with a function button, with flush interruption, pergamon | |

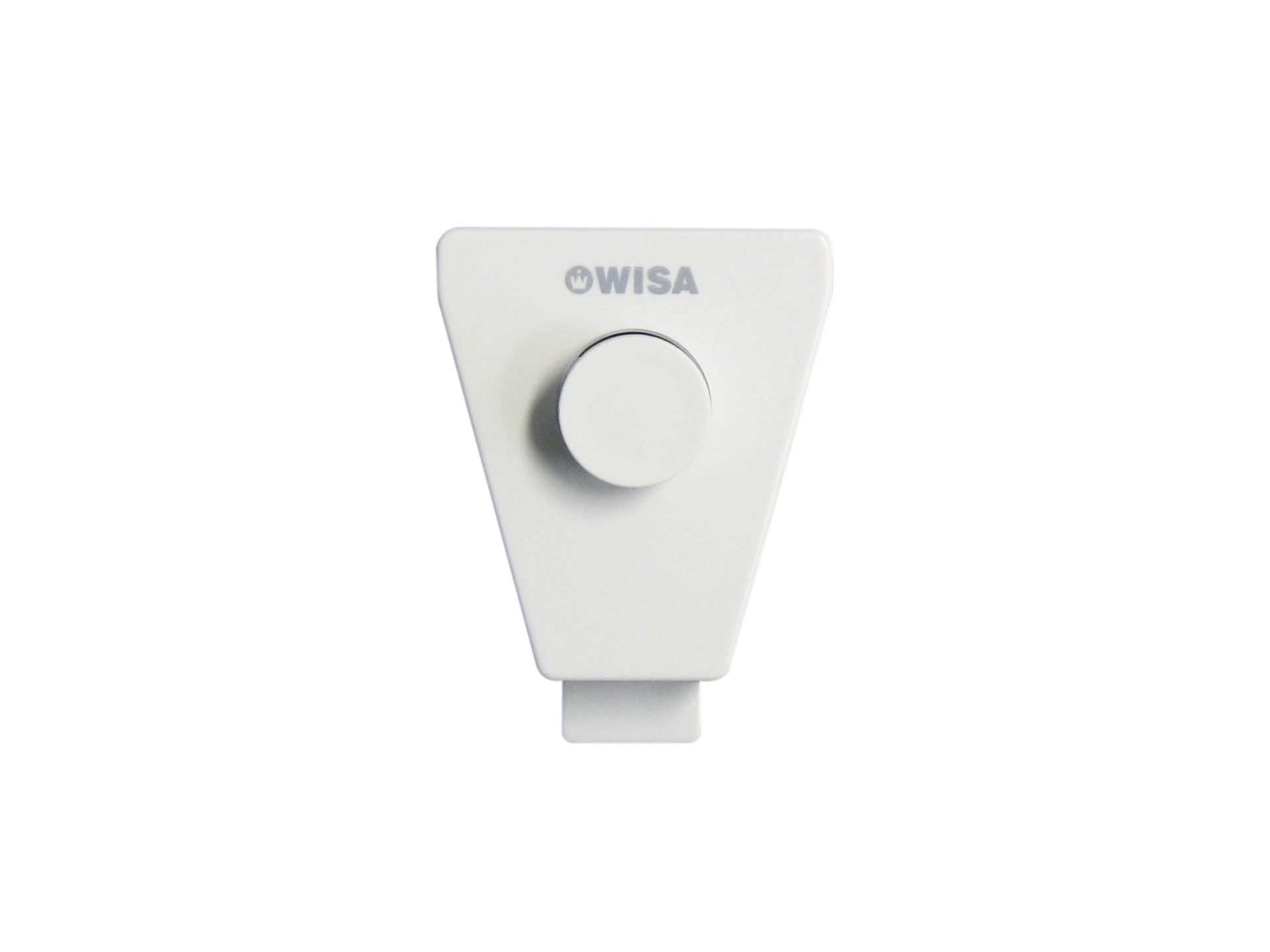

8050411901 | Function button with flush interruption, white (old model) | |

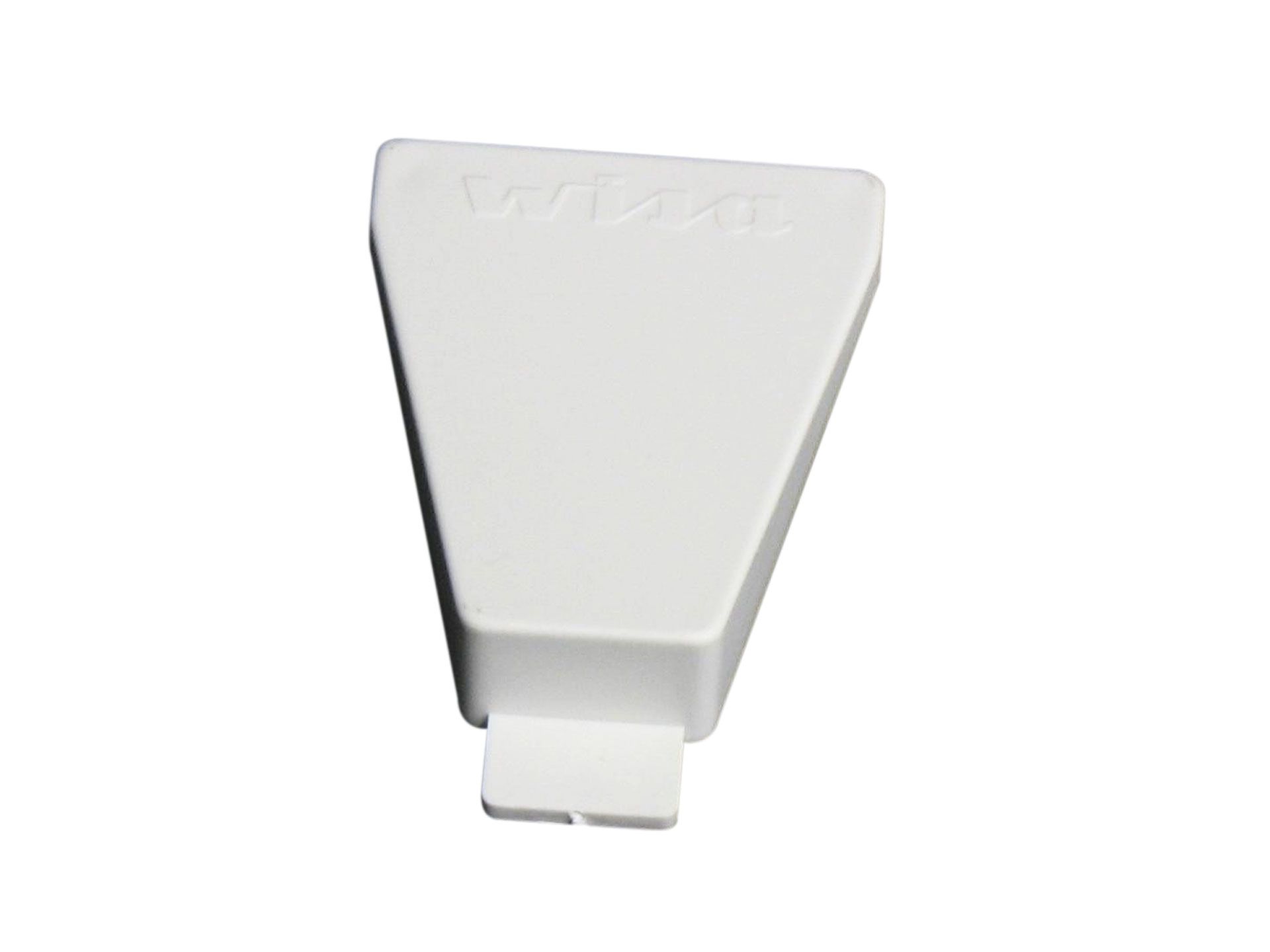

8050885500 | Function button, without start/stop function, white (old model) | |
8050800198 | Bridge, cisterns Fortuna, AP220, SLIM, W500 | |
8050882382 | Rosette, white | |
8050886394 | Closing cap, beige | |
8050886379 | Closing cap, manhattan | |
8050886397 | Closing cap, pergamon | |
8050882480 | Closing cap, cistern Fortuna, Linea, W250/870/1250, AP210/AP260, white | |
8050882482 | Closing cap, beige | |
8050886249 | Closing cap, manhattan | |
8050886237 | Closing cap, pergamon | |
8050882430 | Flush pipe rosette, white | |

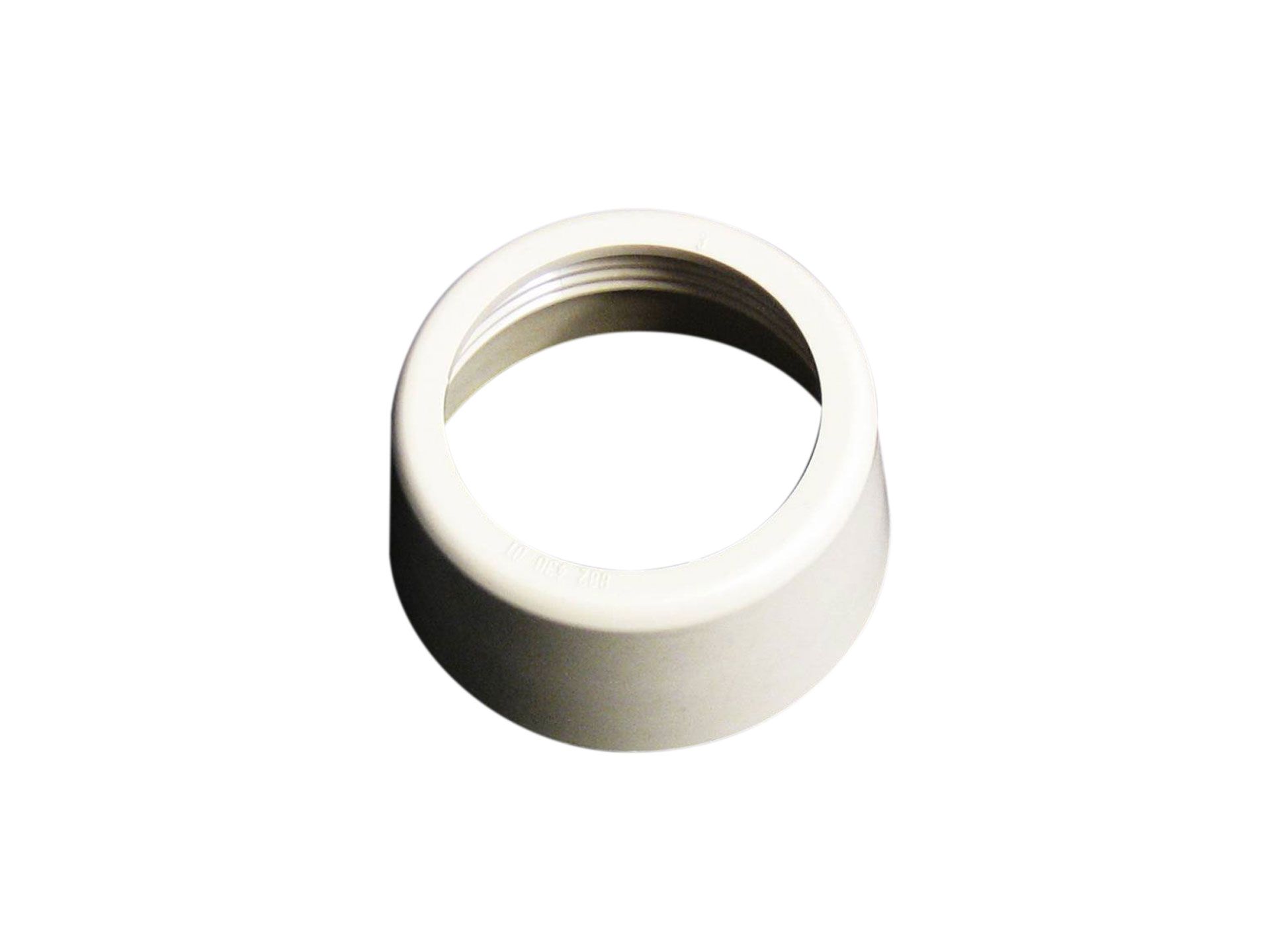

8050882432 | Nut for flush pipe, beige | |

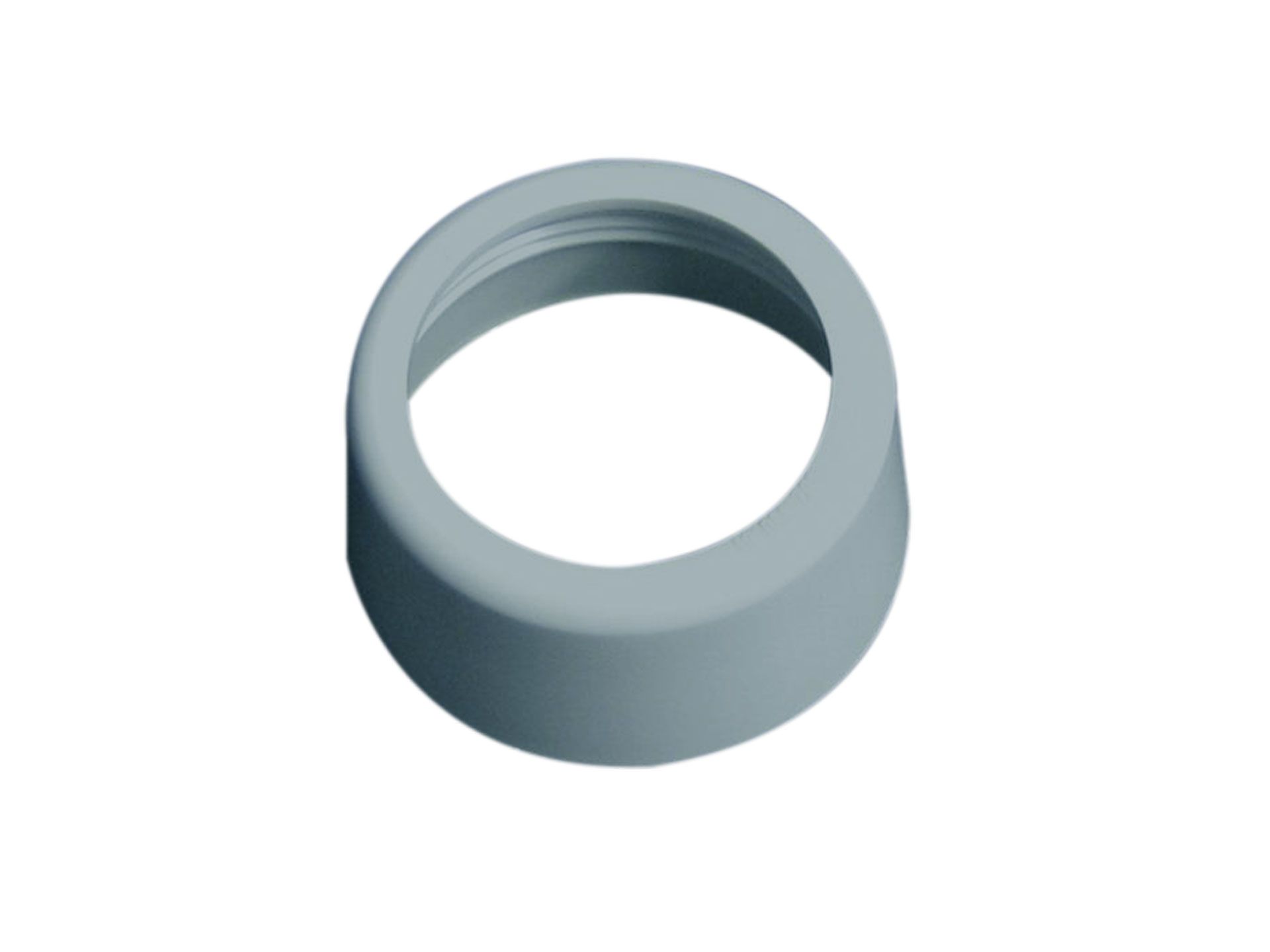

8050882224 | Nut for flush pipe, manhattan | |

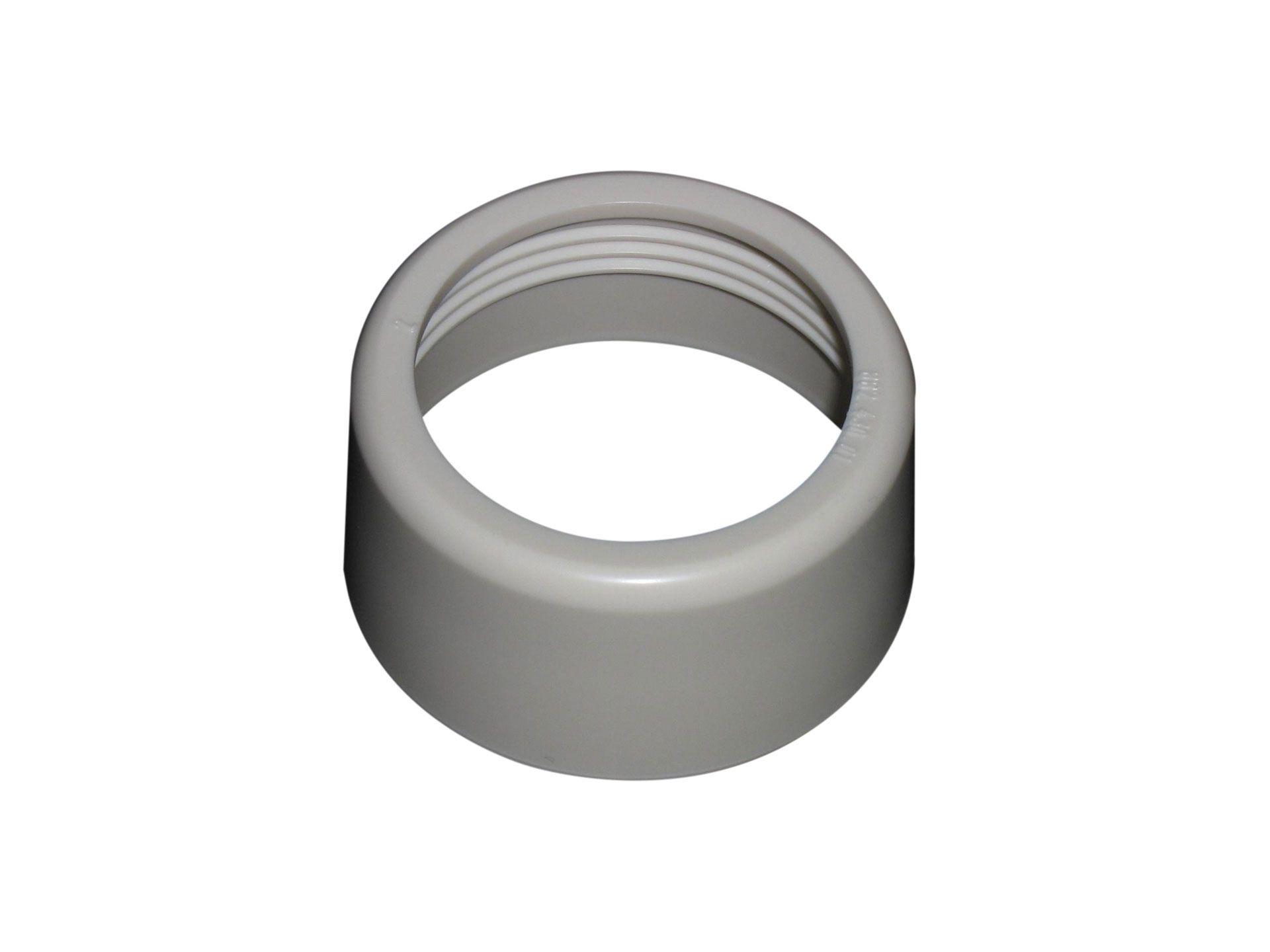

8050882227 | Nut for flush pipe, pergamon | |
8050110101 | Flush pipe elbow, 230 x 210 mm, white | |
8050110103 | Flush pipe elbow, 230 x 210 mm, beige | |
8050110110 | Flush pipe elbow, 230 x 210 mm, manhattan | |
8050110114 | Flush pipe elbow, 230 x 210 mm, pergamon | |
8050985530 | WC Flush pipe connector seal No. 101 | |
1403987112 | Angle valve G 1/2 | |
1405987117 | Copper connection pipe | |

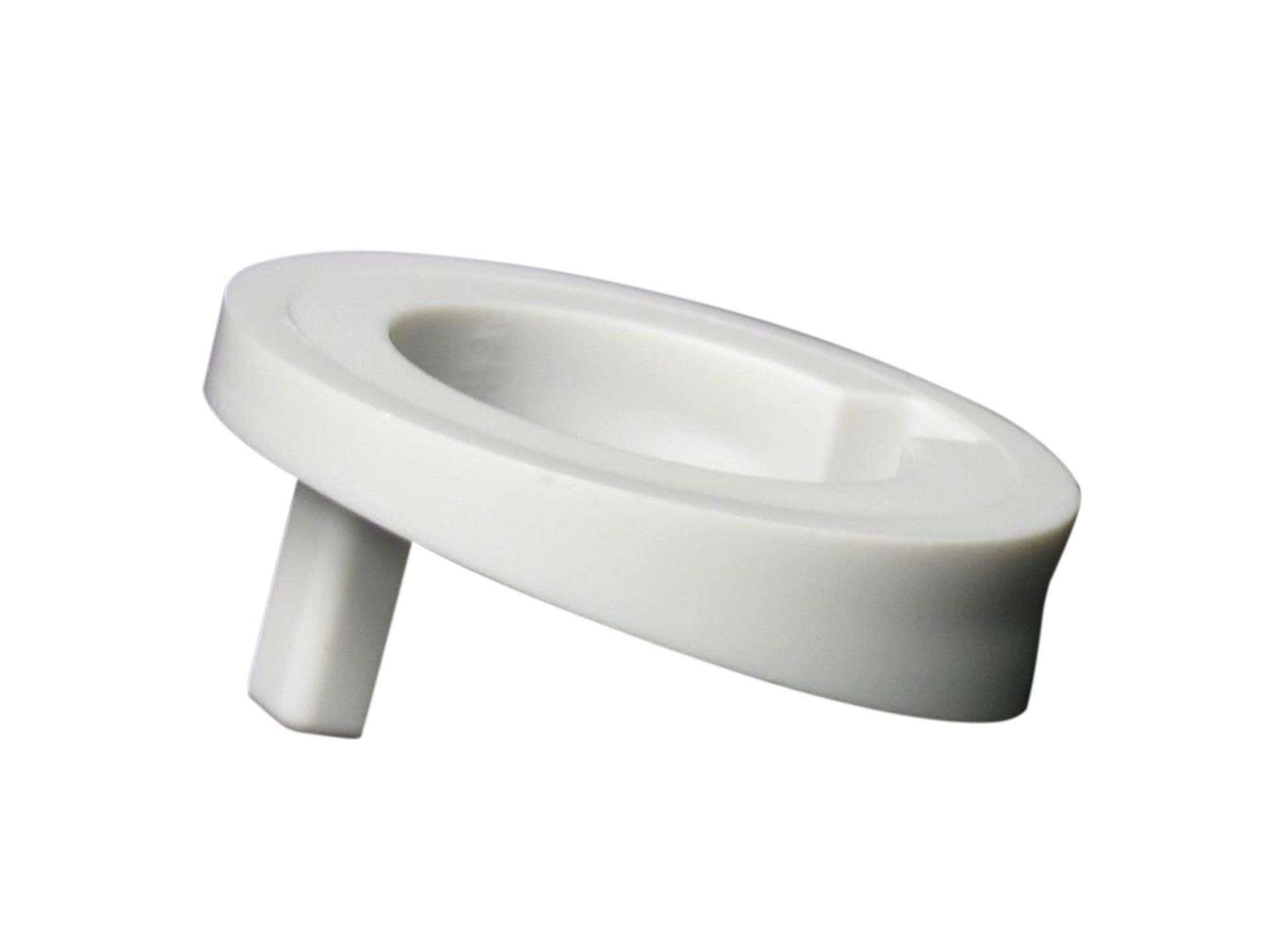

8050882490 | Spacer, white, cisterns W500, AP220, SLIM, Fortuna | |

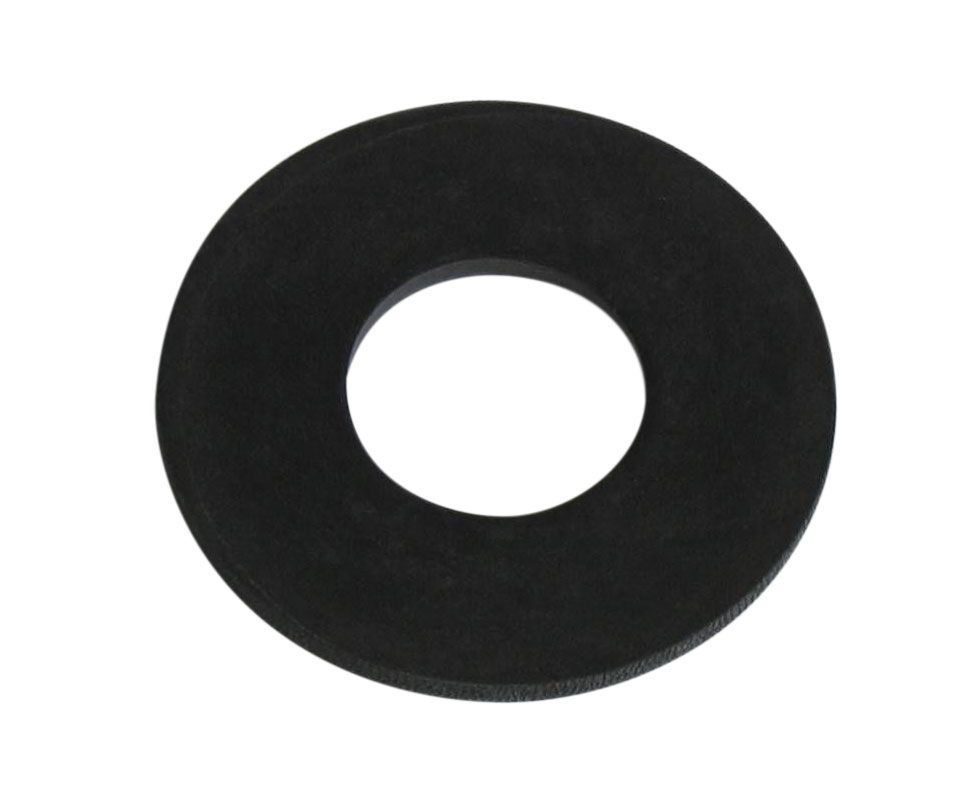

8050390037 | Bag of rubber gaskets for flush valve 28 x 65 x 3 (5 pc.) | |
8050390025 | Bag of gaskets for flush pipe (5 pc.) | |

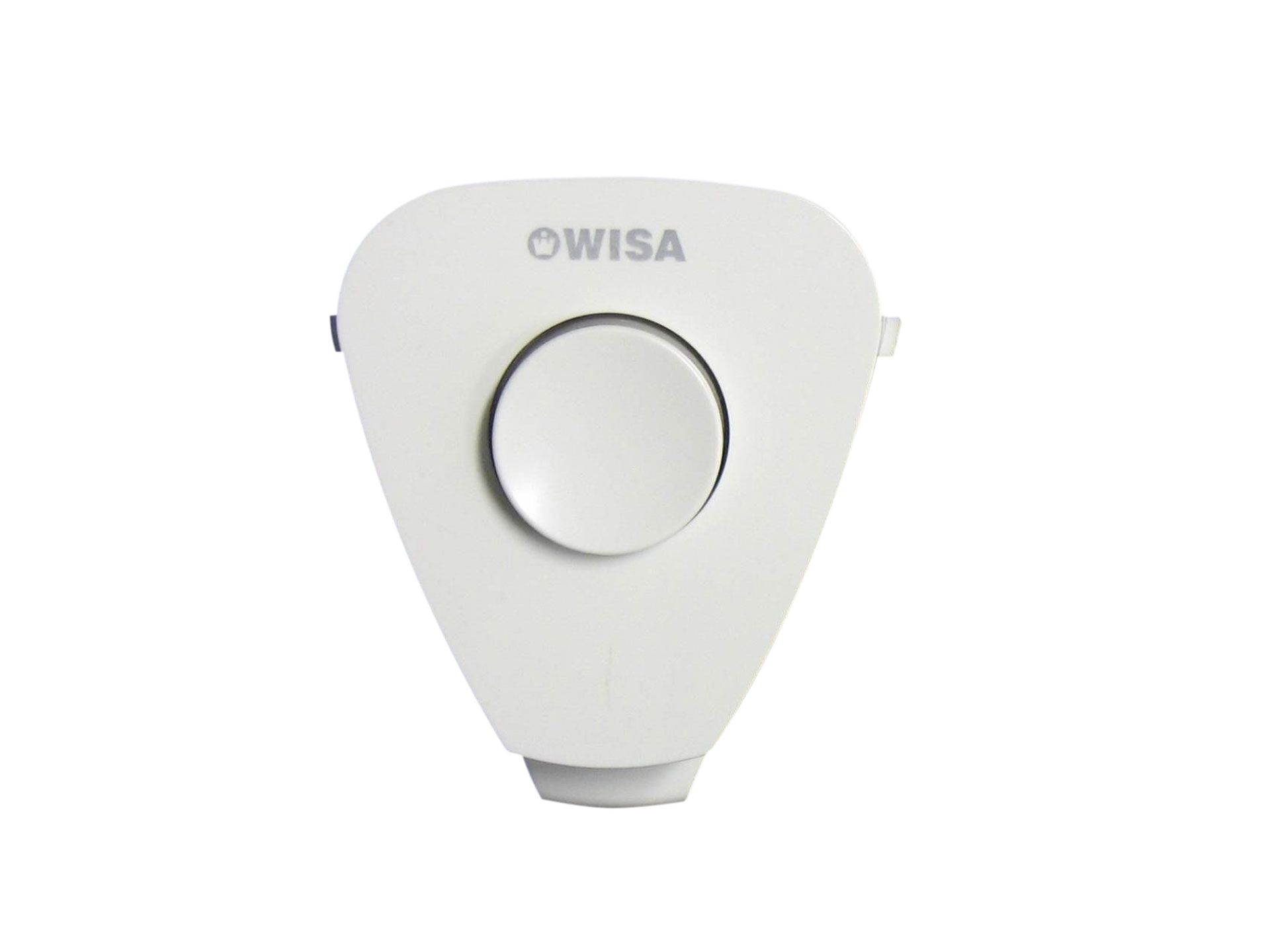

8050899149 | FUNCTION BUTTON, white | |

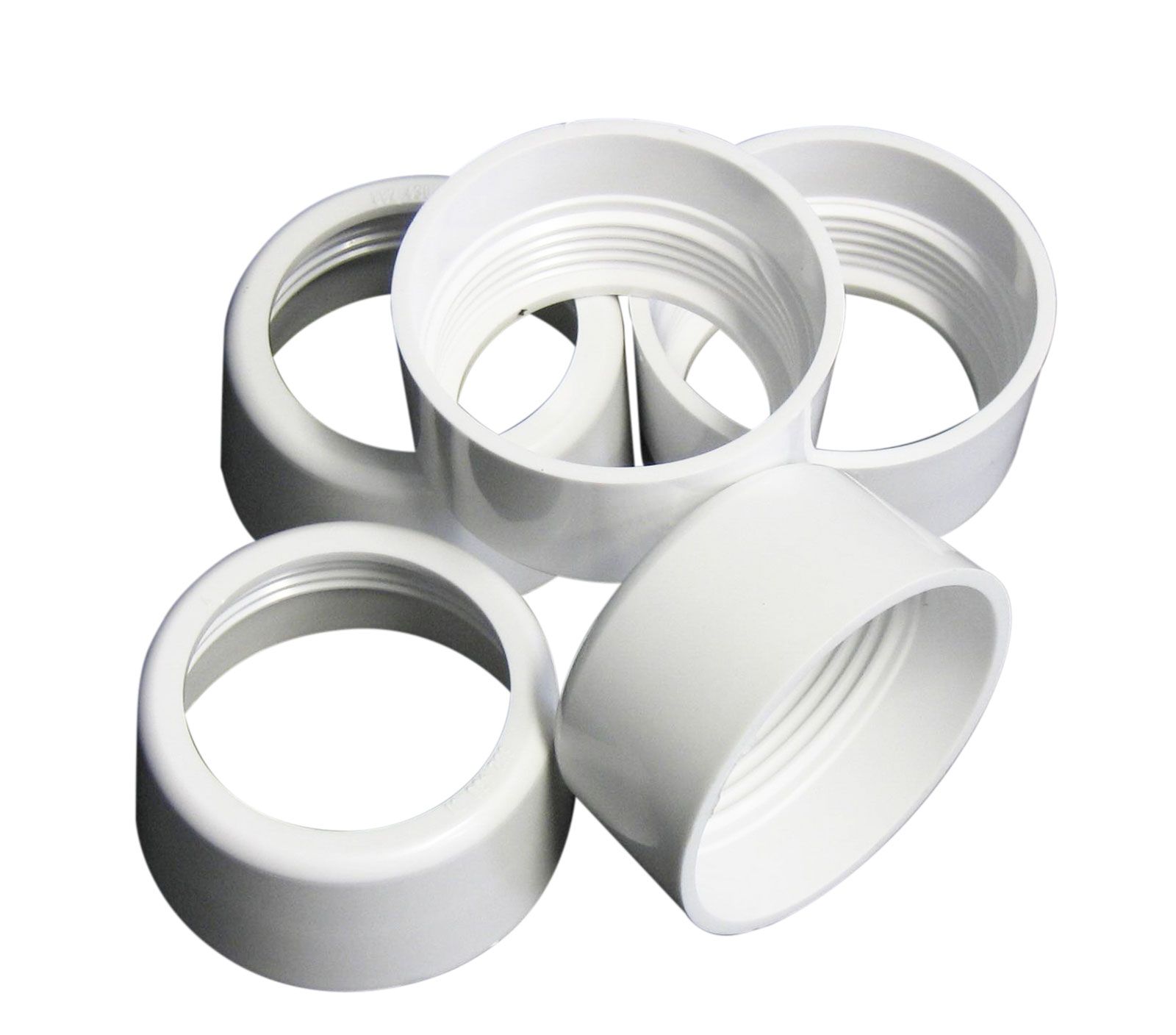

8050390002 | Bag of nuts for flush pipe white (5 pc.) | |
8050390093 | WC flush pipe connector seals (5 pcs) | |

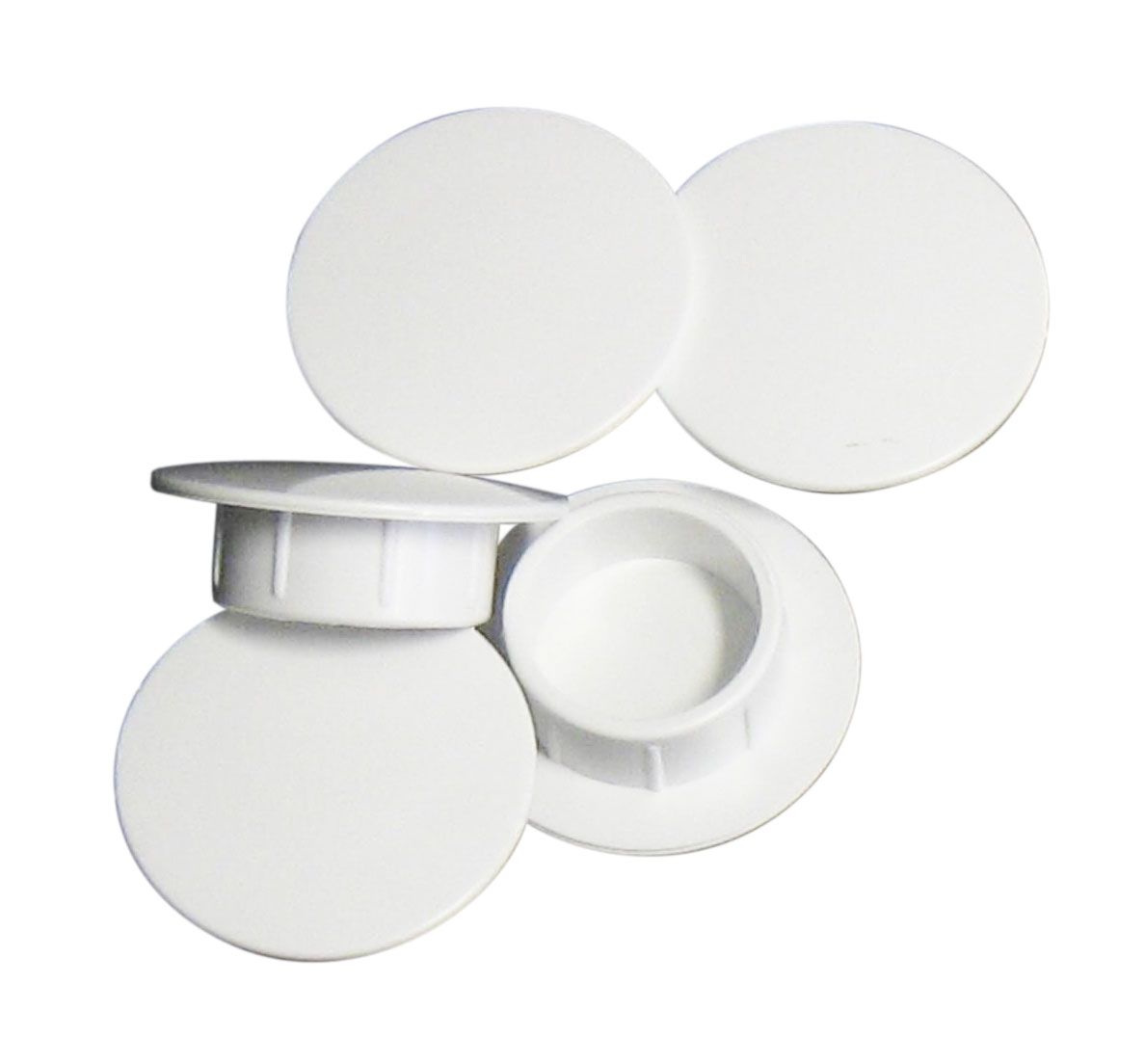

8050390067 | Bag of decoration caps, white (5 pc.) | |
8035432795 | Fill valve HVK G 3/8 brass shank |
