Exposed cistern AP230, white
All of our products are manufactured in compliance with EU regulations and come with a 10-year warranty (excluding rubber parts and electronics), along with a 25-year guarantee of spare parts availability.
Product number:
4060430801
EAN:
8711778213746
- Exposed flushing cistern
- For wall mounting, low-hanging
- Dual flushing
- Flushing volume 3/6 L
- Water connection possible on left, right or at the rear center
- Insulated against condensation
- Color: white
- Flushing operation on the right side
- Silent Hydraulic Fill valve
- Stop valve
- Chromed Cu water connection pipe
- Flush pipe connector
- Flush pipe 270 x 220 mm, Ø 50 / 44 mm
- Supplied parts for the installation of the flushing cistern
- EN 14055 - CL 1 - 6 - NL I - VR II
| Adjustable flushing water quantity: | Yes |
|---|---|
| Colour: | White |
| Depth: | 134 mm |
| Filling valve noise class: | Group I, <= 20 dB(A) |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 6 l |
| Height: | 420 mm |
| KIWA certified: | Yes |
| Material flushing reservoir: | Plastic |
| Material quality: | Other |
| Operation: | Push button |
| Outer pipe diameter connection tap water: | 16.66 mm |
| Outer pipe diameter reservoir side flushing bend: | 50 mm |
| Reservoir position: | Low |
| Series: | AP230 |
| Size of tap water connection: | 3/8 inch |
| Sound class according to EN ISO 3822: | Group I, <= 20 dB(A) |
| Suitable for close coupled toilet: | No |
| Suitable for electrical operation: | No |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | No |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Water connection, bottom: | No |
| Water connection, left: | Yes |
| Water connection, rear: | Yes |
| Water connection, right: | Yes |
| Water connection, top: | No |
| Width: | 338 mm |
| With anti-condensation insulation: | Yes |
| With flushing bend: | Yes |
| With stop valve: | No |
| Product number: | Description | Image |
|---|---|---|

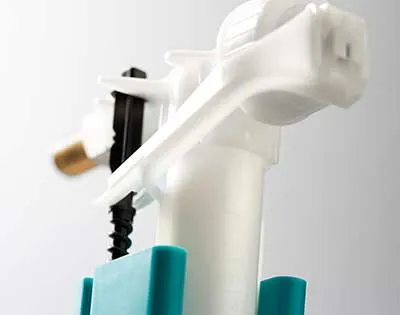

| 8035432572 | Fill valve HVK G 3/8 |
|

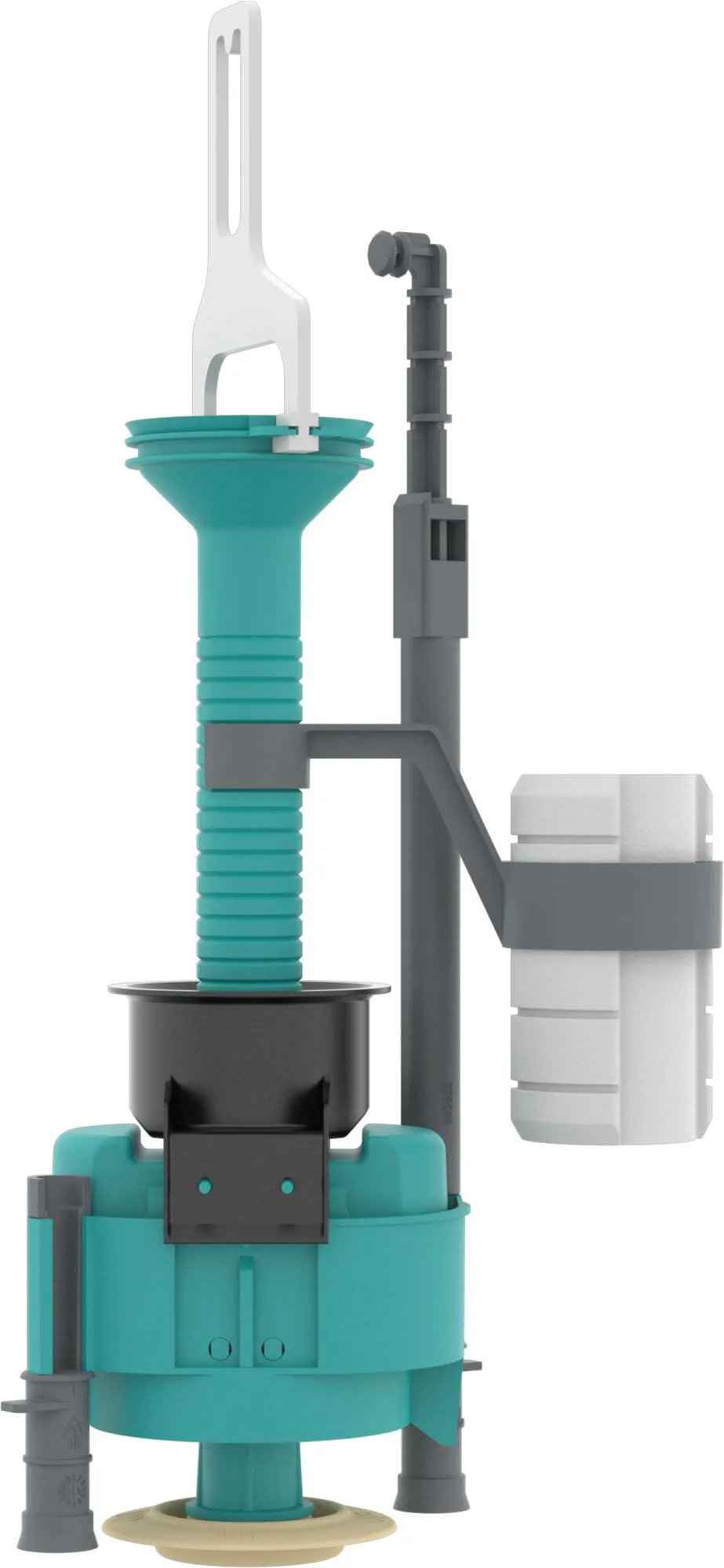

| 8050800336 | FLUSH VALVE |
|
| 8035390111 | Rubber gasket for DF 3/6 l |
|
| 8050882450 | Flushing cistern outlet seal |
|
| 8050800078 | Holder (screw and insert) with flush pipe gasket |
|
| 8050411401 | Cistern cover with a function buttons, white |
|
| 8050883276FM | Bridge / spacer |
|

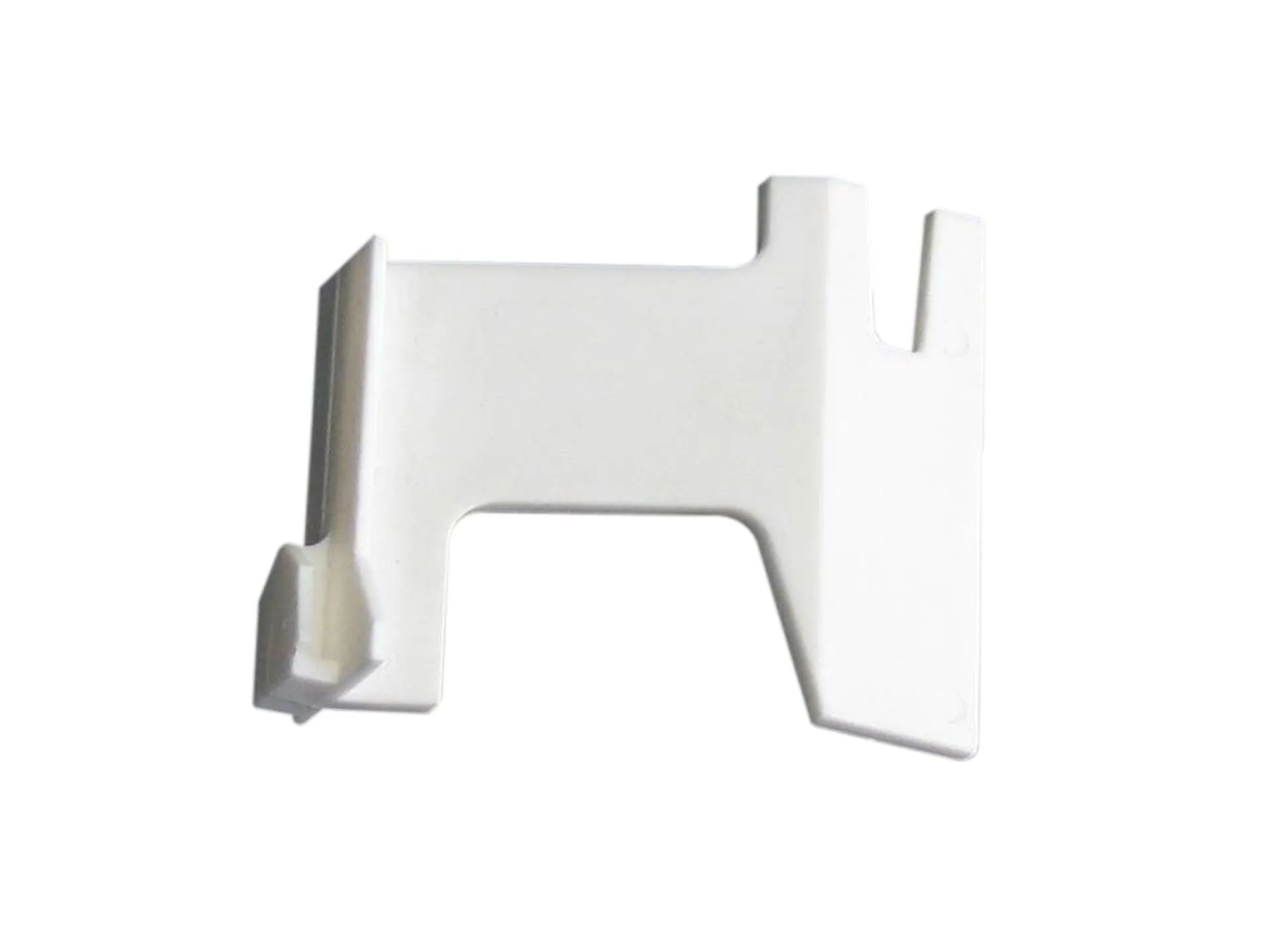

| 8050883276 | Bridge / spacer, cisern WISA 300/336/450 |
|
| 8050882382 | Rosette, white |
|
| 8050882480 | Closing cap, cistern Fortuna, Linea, W250/870/1250, AP210/AP260, white |
|
| 8050882430 | Flush pipe rosette, white |
|
| 8050110101 | Flush pipe elbow, 230 x 210 mm, white |
|
| 8050985530 | WC Flush pipe connector seal No. 101 |
|
| 1403987112 | Angle valve G 1/2 |
|
| 1405987116 | Copper connection pipe |
|
| 8050883649 | Bridging piece, button |
|
| 8050800101 | CONVERSION SET, white |
|
| 8050412601 | Function buttons, white |
|
| 8050886397 | Closing cap, pergamon |
|
| 8050886237 | Closing cap, pergamon |
|
| 8050882227 | Nut for flush pipe, pergamon |
|
| 8050110114 | Flush pipe elbow, 230 x 210 mm, pergamon |
|
| 8035432795 | Fill valve HVK G 3/8 brass shank |
|
| 8050801518 | FLUSH VALVE WITH GASKET |
|
| 8050887260 | Bridge / spacer |
|
| 1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
|
