Exposed cistern AP240, white
Product number:
4060428401
EAN:
8711778213739
- Exposed flushing cistern
- Wall mounting, corner installation
- Start-Stop flushing
- Flushing volume 6(6-9) L
- Water connection possible on left and right side
- Insulated against condensation
- Color: white
- Flushing operation on the right side
- Silent Hydraulic Fill valve
- Stop valve
- Chromed Cu water connection pipe
- Flush pipe connector
- Flush pipe 270 x 220 mm, Ø 50 / 44 mm
- Supplied parts for the installation of the flushing cistern
- EN 14055 - CL 1 - 6 - NL I - VR II
Adjustable flushing water quantity: | Yes |
---|---|
Colour: | White |
Depth: | 289 mm |
Filling valve noise class: | Group I, <=20 dB(A) |
Flushing: | Interruptible |
Flushing water quantity: | 6 to 9 l |
Height: | 342 mm |
KIWA certified: | Yes |
Material flushing reservoir: | Plastic |
Material quality: | Other |
Operation: | Push button |
Outer pipe diameter reservoir side flushing bend: | 50 mm |
Outer pipe diameter tap water: | 16.66 mm |
Reservoir position: | Low |
Series: | AP240 |
Size of tap water connection: | 3/8 inch |
Sound class according to EN ISO 3822: | Group I, <=20 dB(A) |
Suitable for close coupled toilet: | No |
Suitable for electrical operation: | No |
Suitable for manual operation: | Yes |
Suitable for pneumatic operation: | No |
Tap water connection: | External thread |
Warranty: | 10 years |
Water connection, bottom: | No |
Water connection, left: | Yes |
Water connection, rear: | No |
Water connection, right: | Yes |
Water connection, top: | No |
Width: | 313 mm |
With anti-condensation insulation: | Yes |
With flushing bend: | Yes |
With stop valve: | No |
Product number: | Description | Image |
---|---|---|

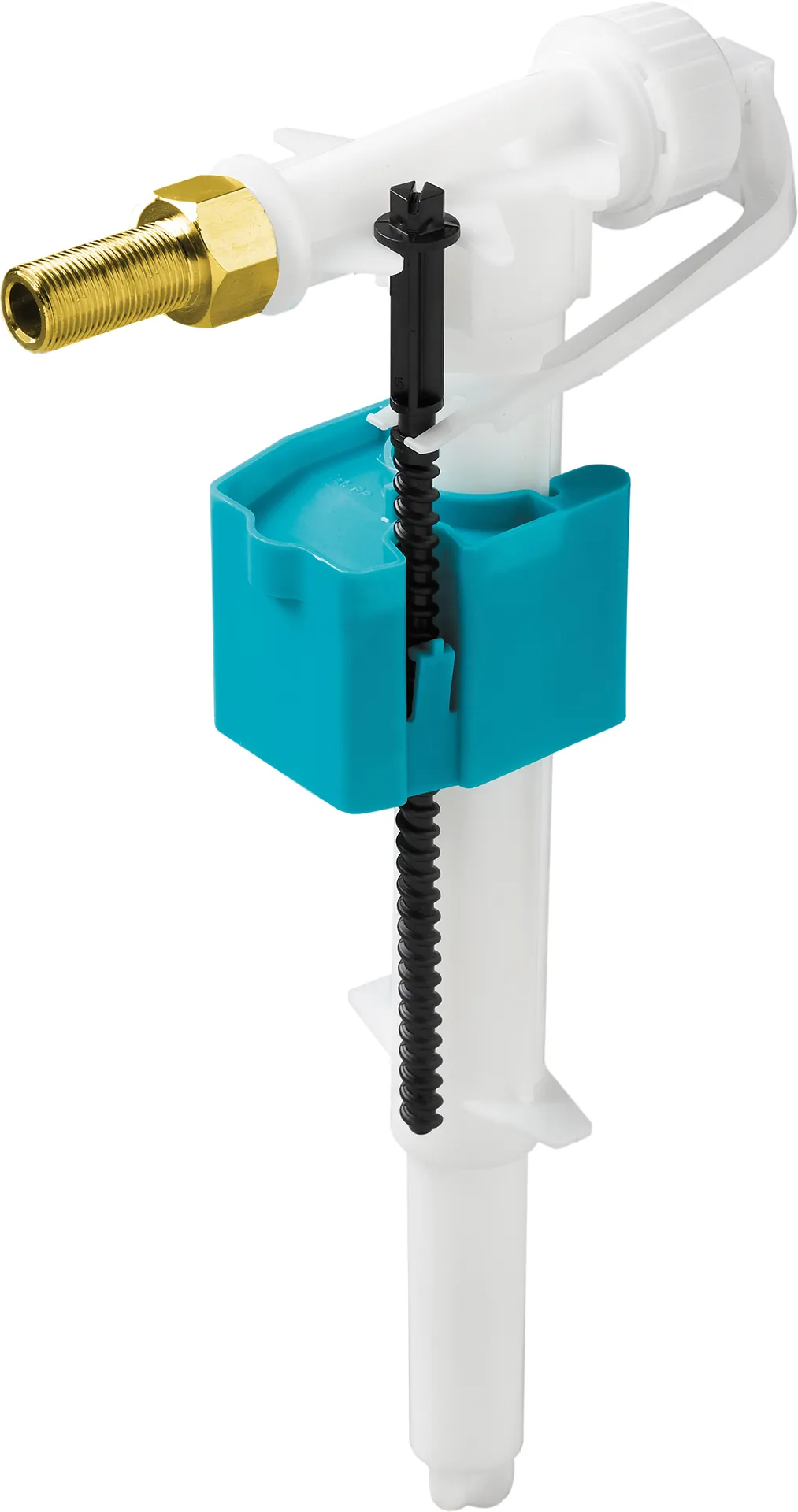

8035432795 | Fill valve HVK G 3/8 brass shank |
![]() |

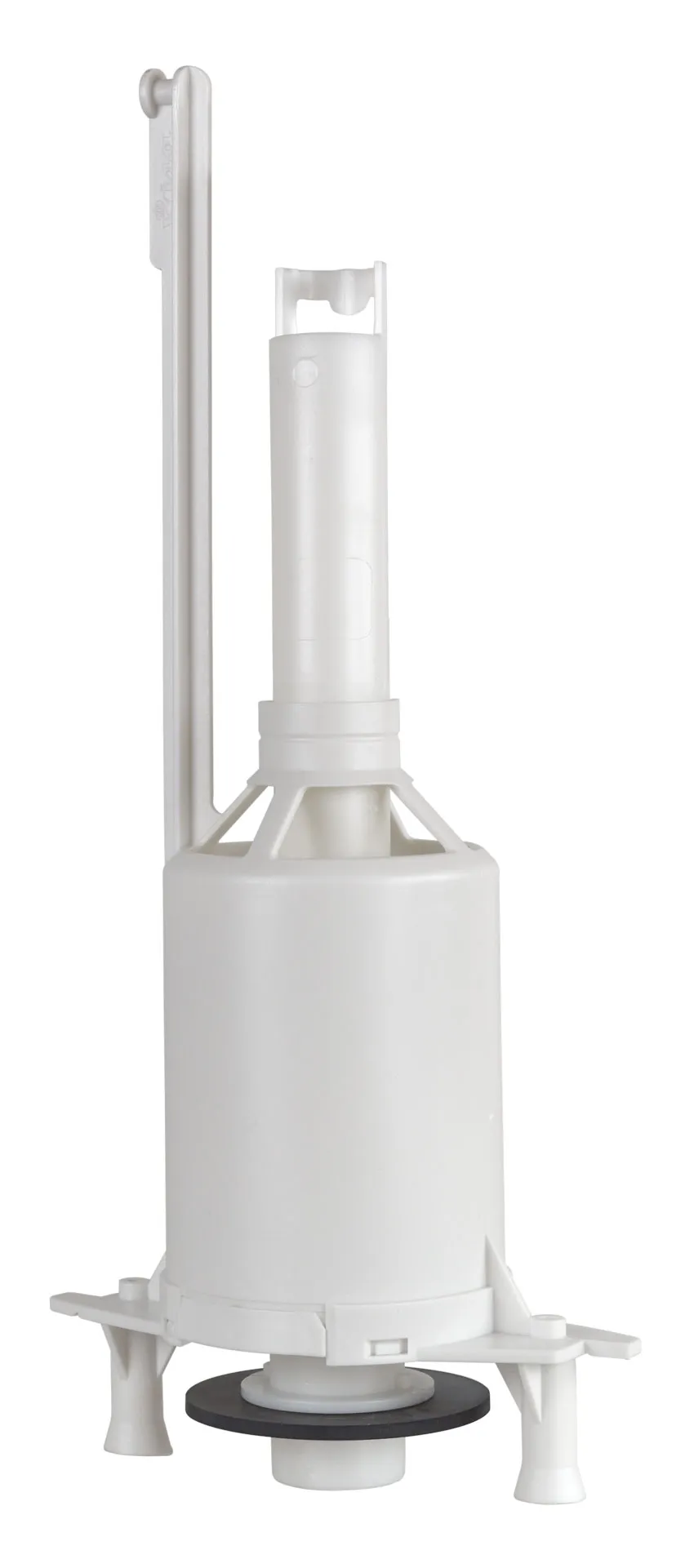

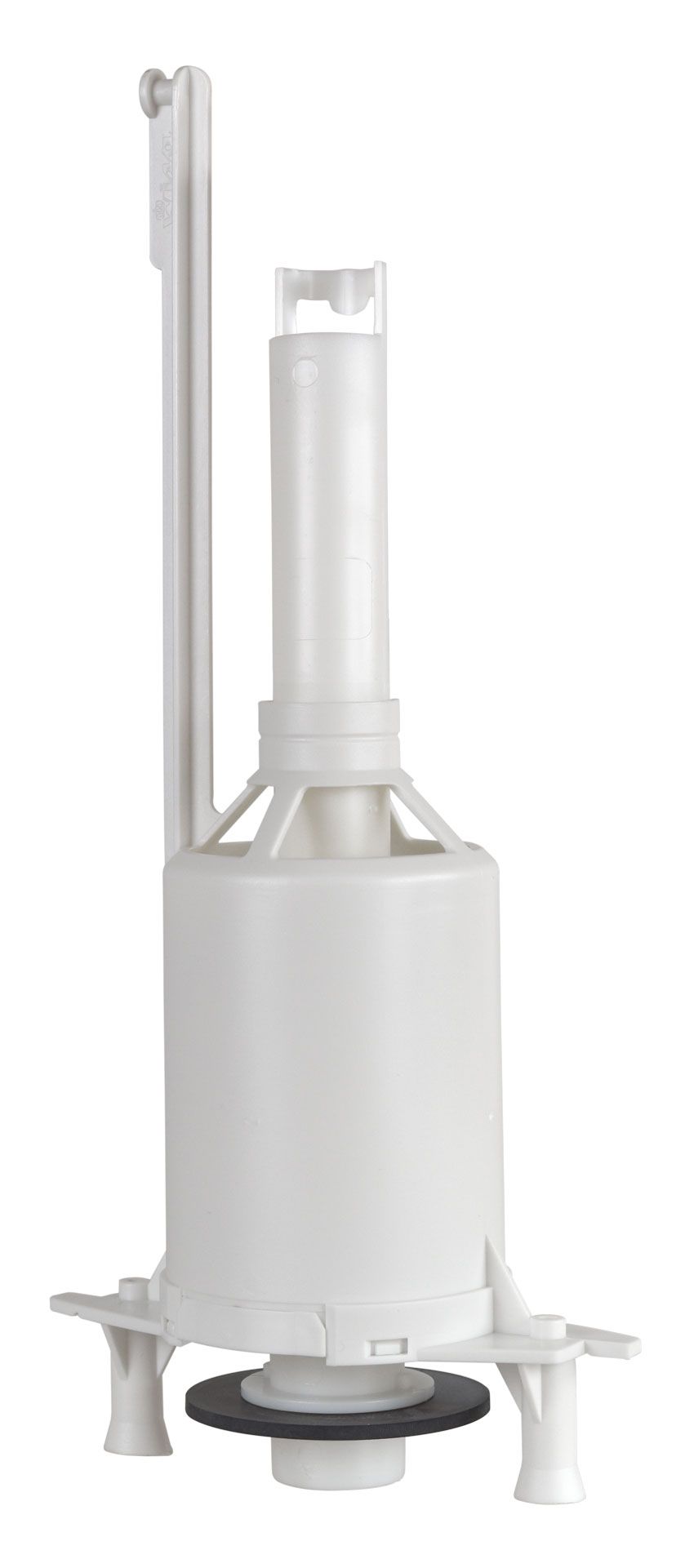

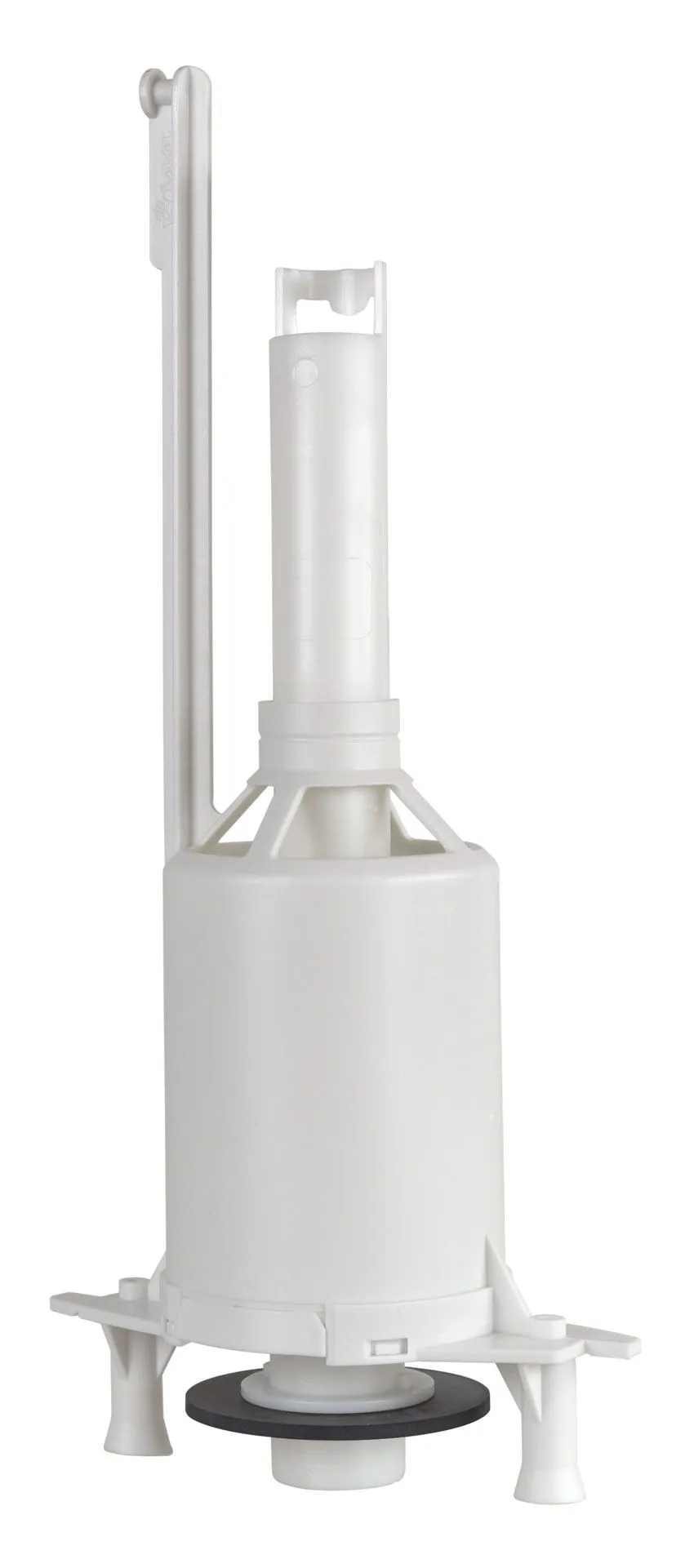

8050800500 | Flush valve with rubber gasket, cisterns Linea, W 285/350/444/900, AP210/AP240 |
![]() |

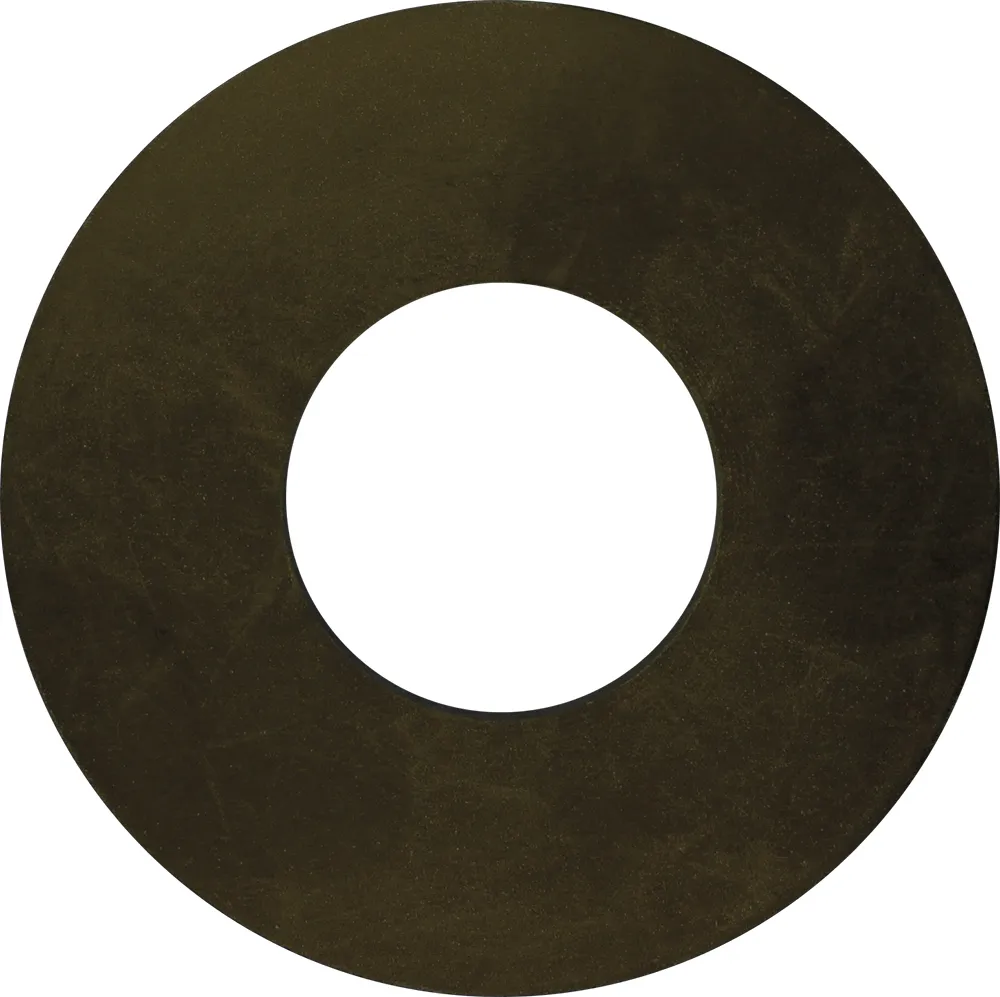

1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
![]() |
8050882450 | Flushing cistern outlet seal |
![]() |

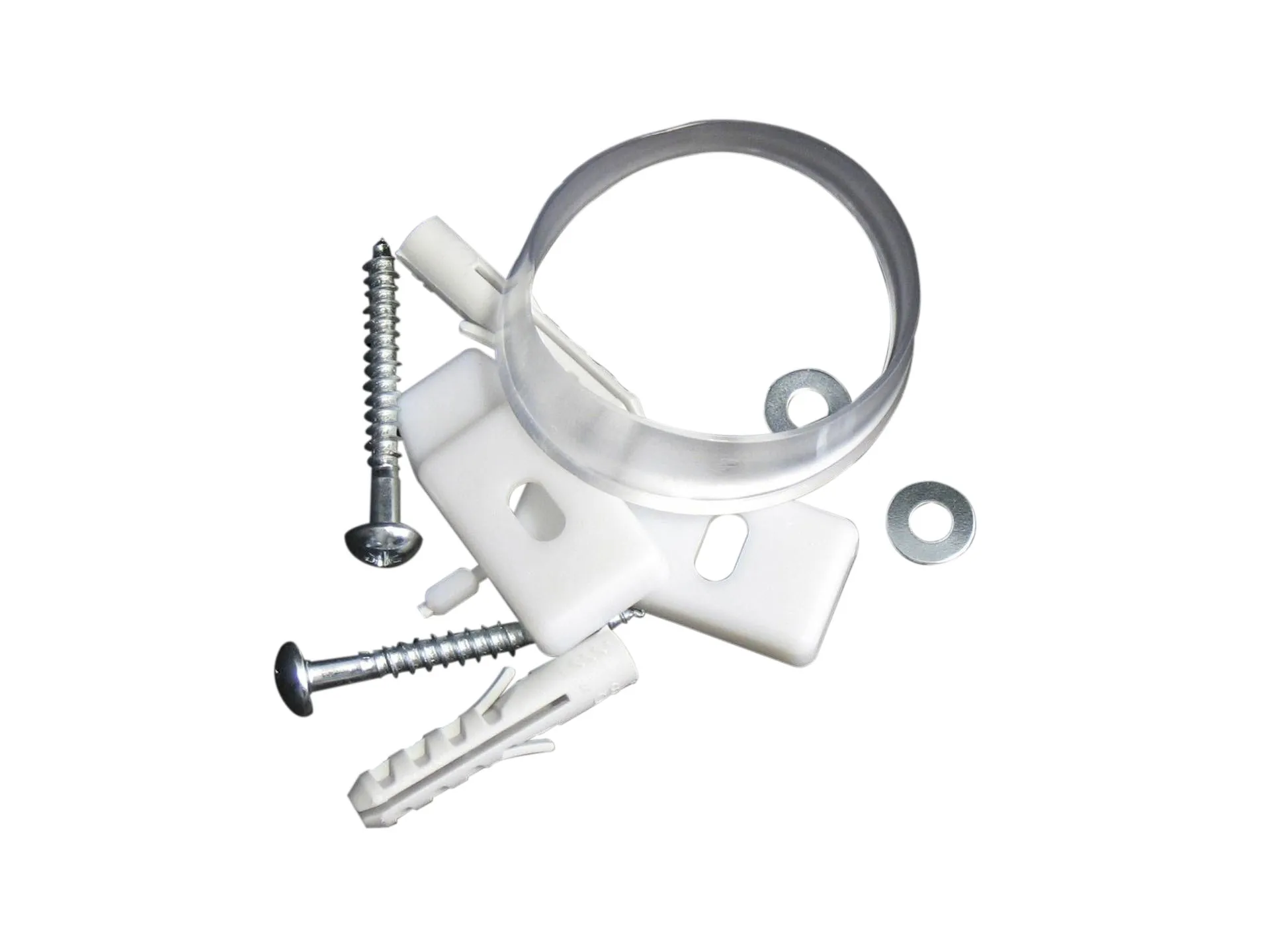

8050800078 | Holder (screw and insert) with flush pipe gasket |
![]() |

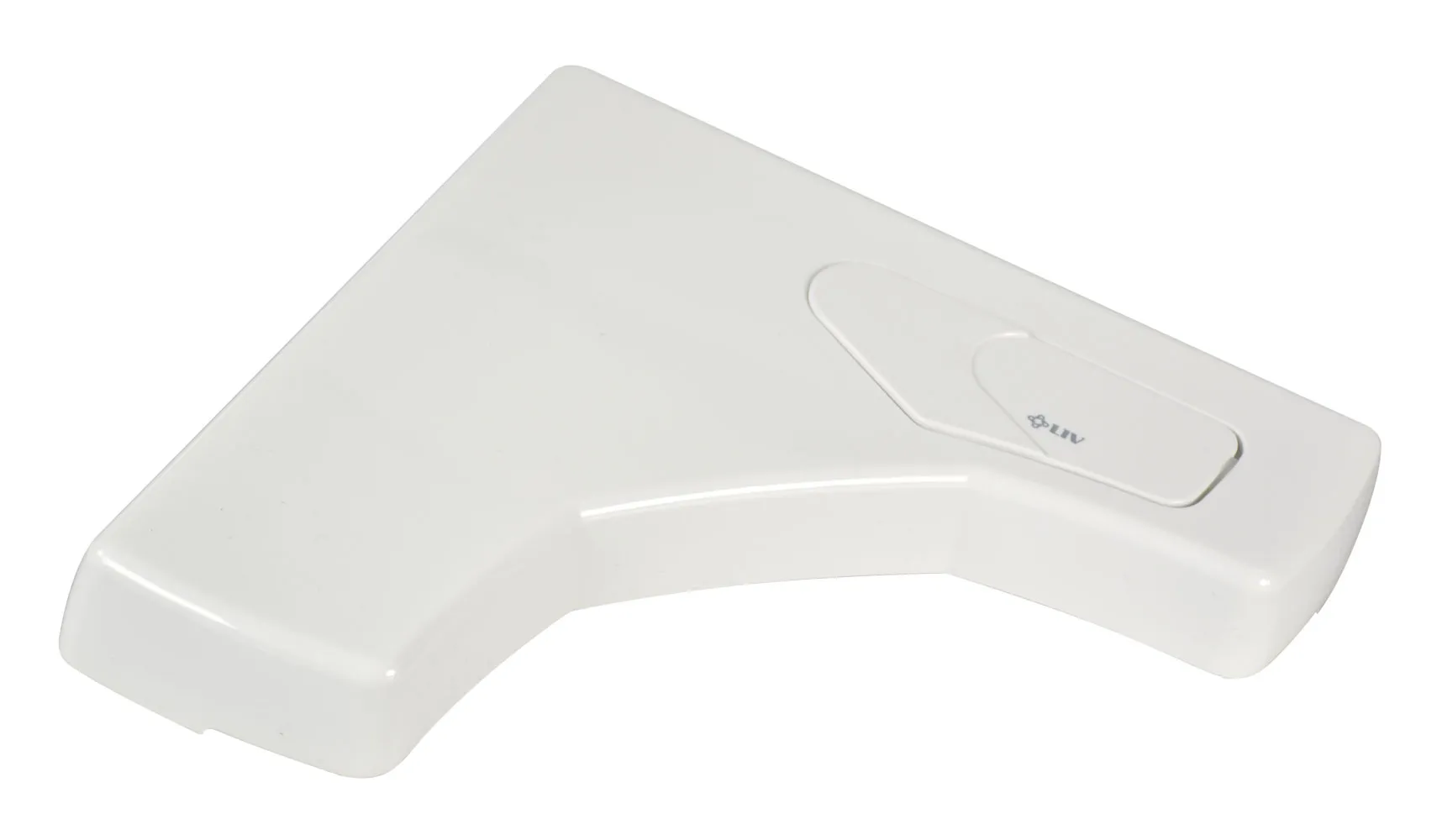

8050410401 | Cistern cover with a function button, cistern Linea, white |
![]() |

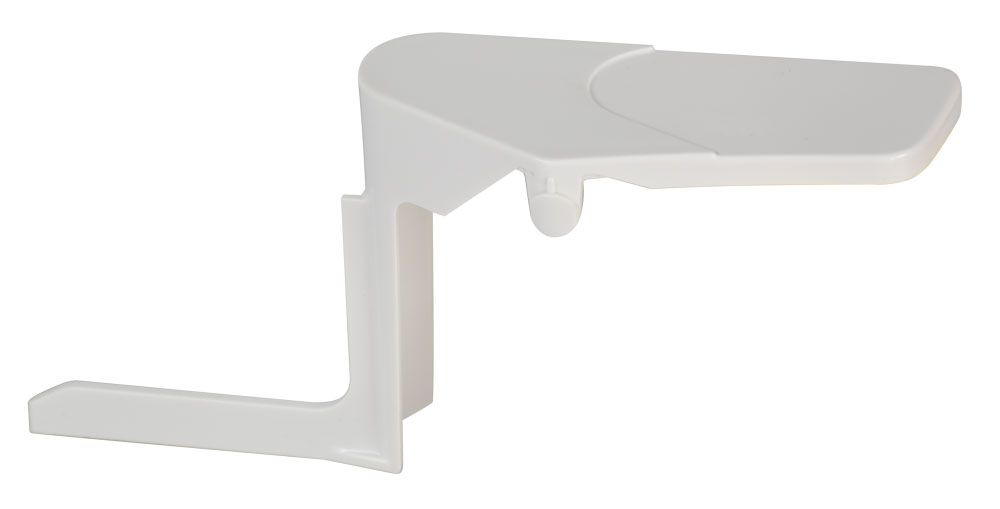

8050411701 | Function button, white (from september 1999) |
![]() |

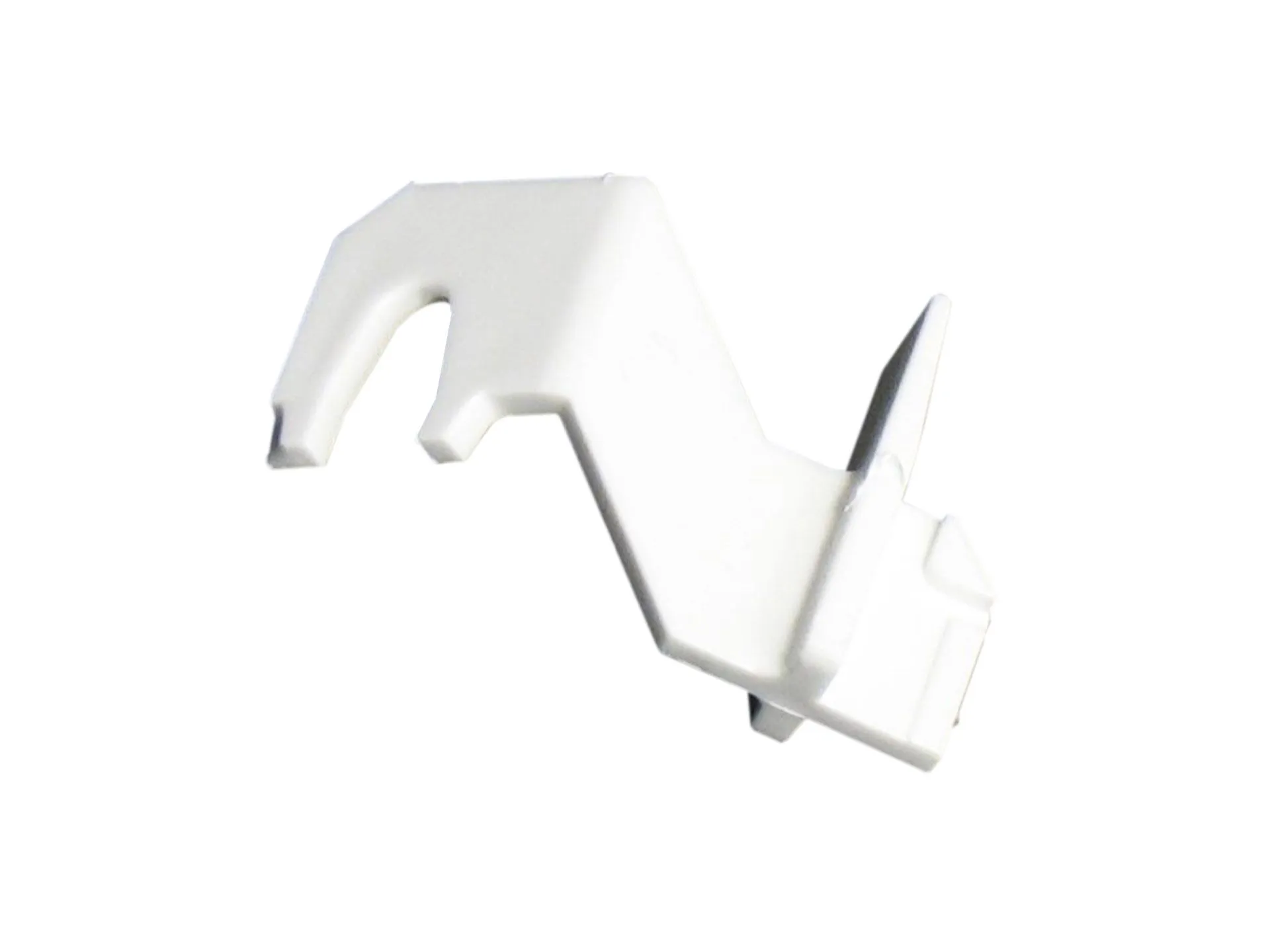

8050887076 | Bridge (from 09/1999) |
![]() |
8050882382 | Rosette, white |
![]() |

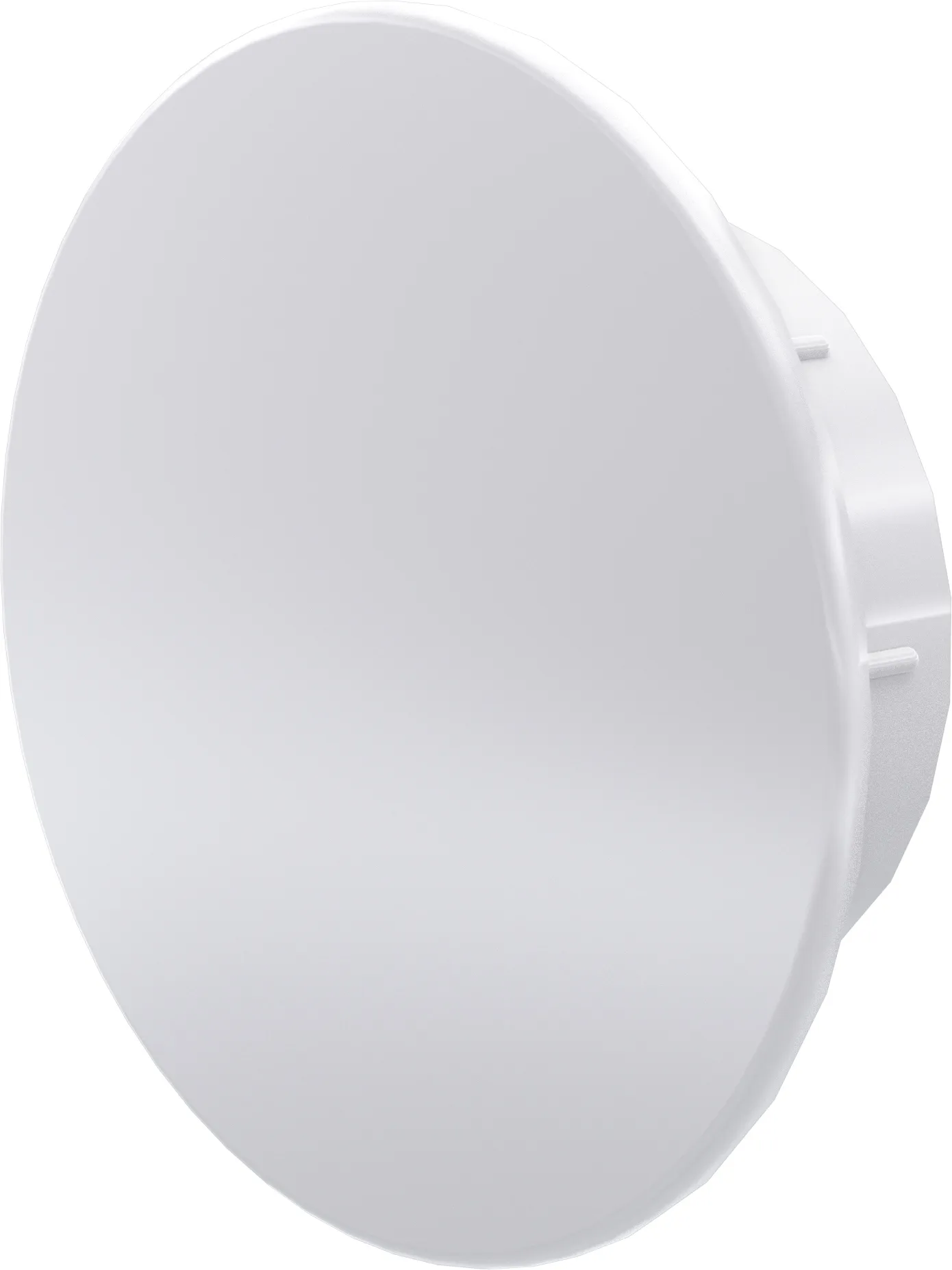

8050882480 | Closing cap, cistern Fortuna, Linea, W250/870/1250, AP210/AP260, white |
![]() |

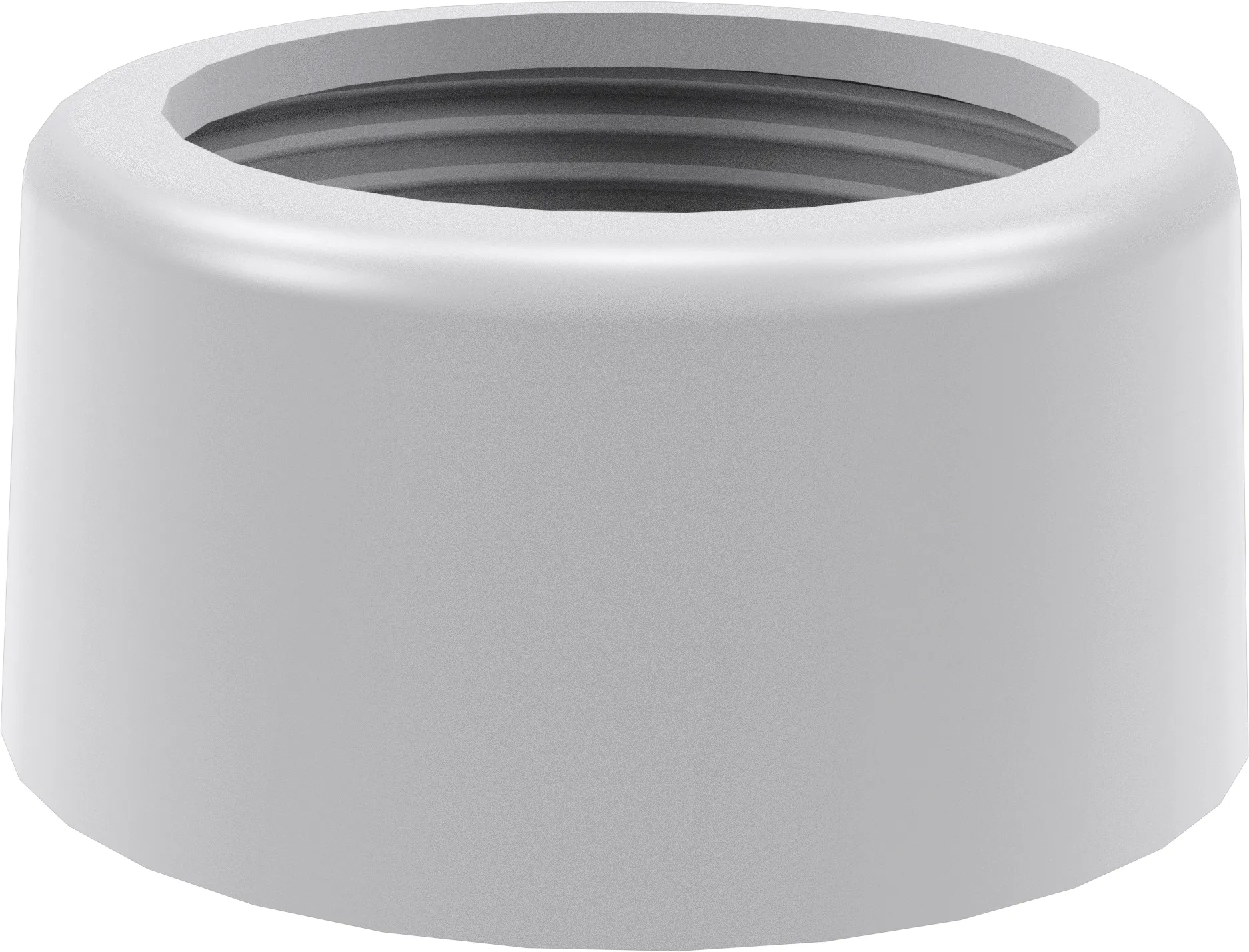

8050882430 | Flush pipe rosette, white |
![]() |
8050110101 | Flush pipe elbow, 230 x 210 mm, white |
![]() |

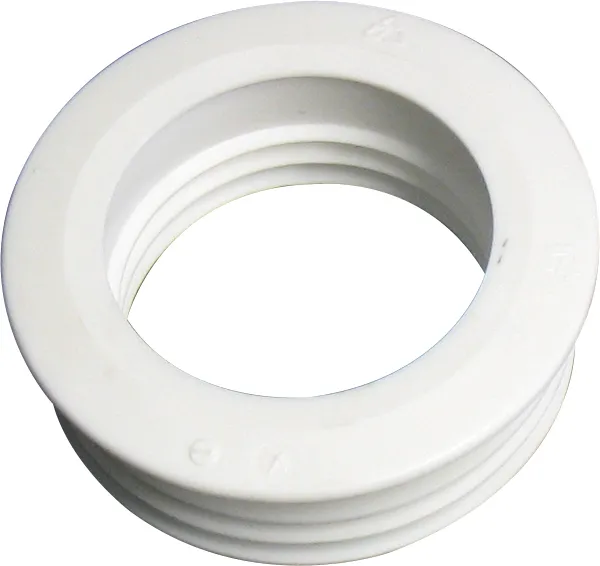

8050985530 | WC Flush pipe connector seal No. 101 |
![]() |

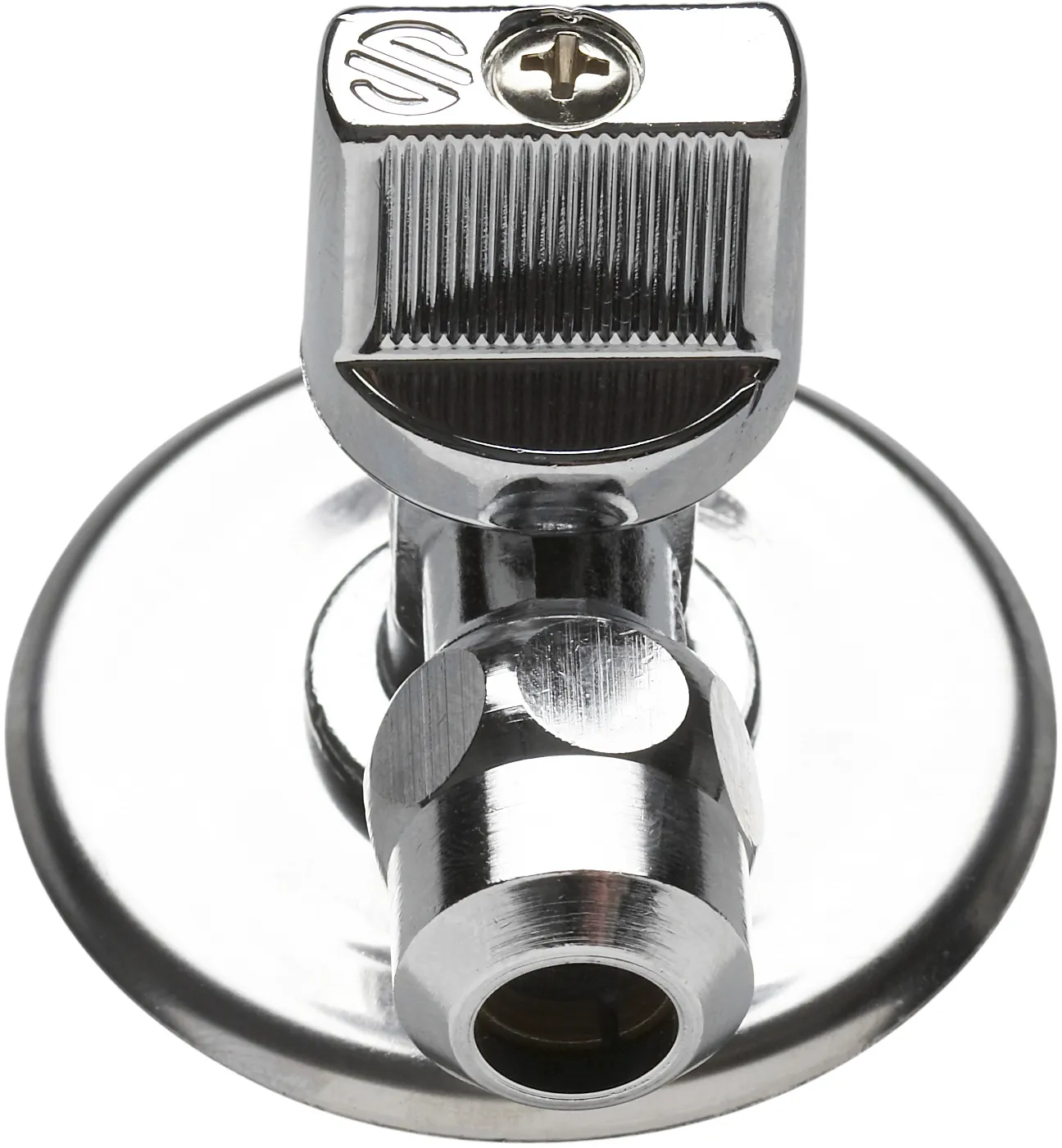

1403987112 | Angle valve G 1/2 |
![]() |

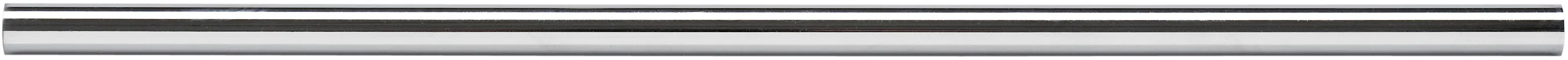

1405987119 | Copper connection pipe |
![]() |

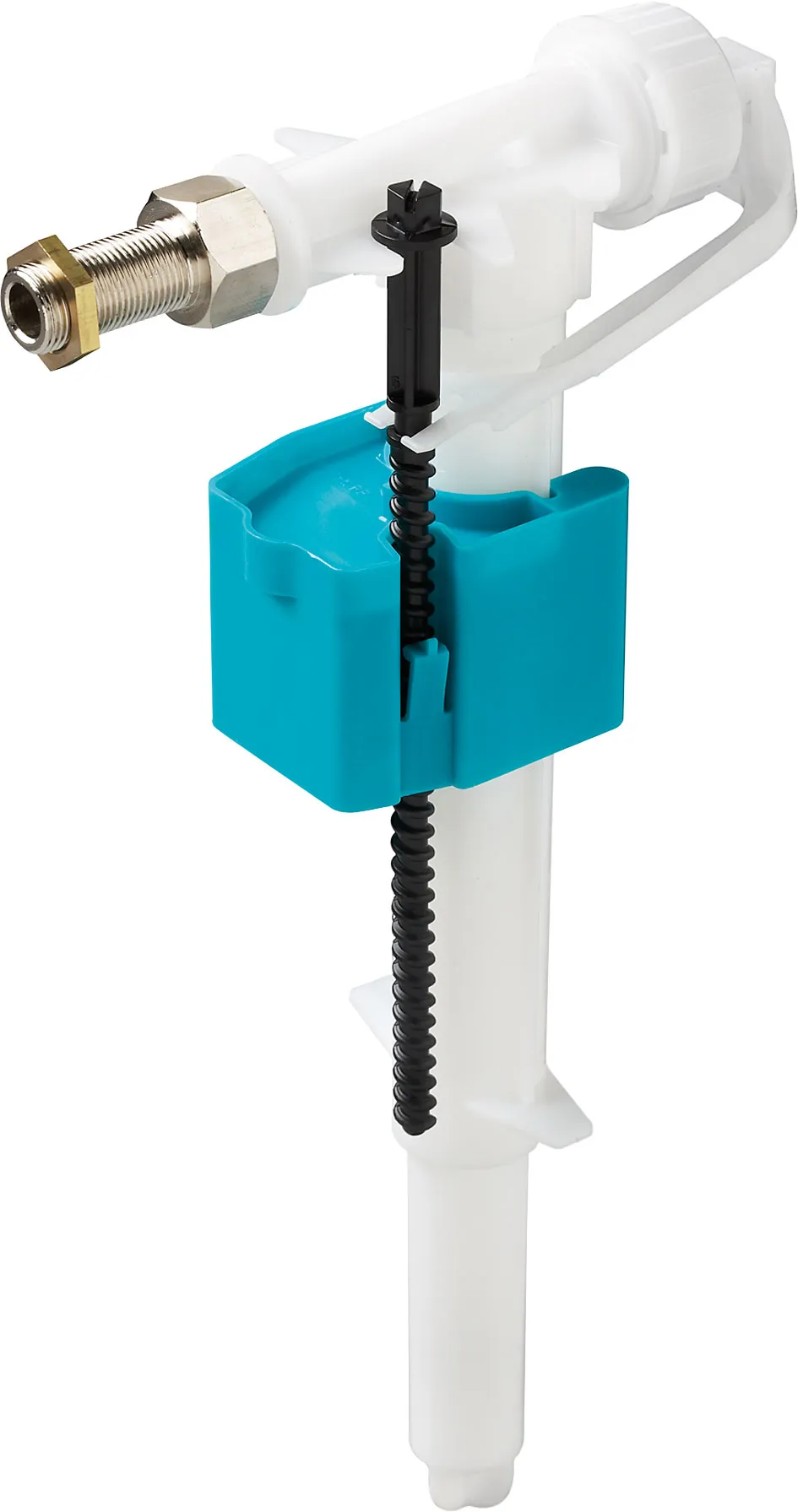

8035432572 | Fill valve HVK G 3/8 |
![]() |

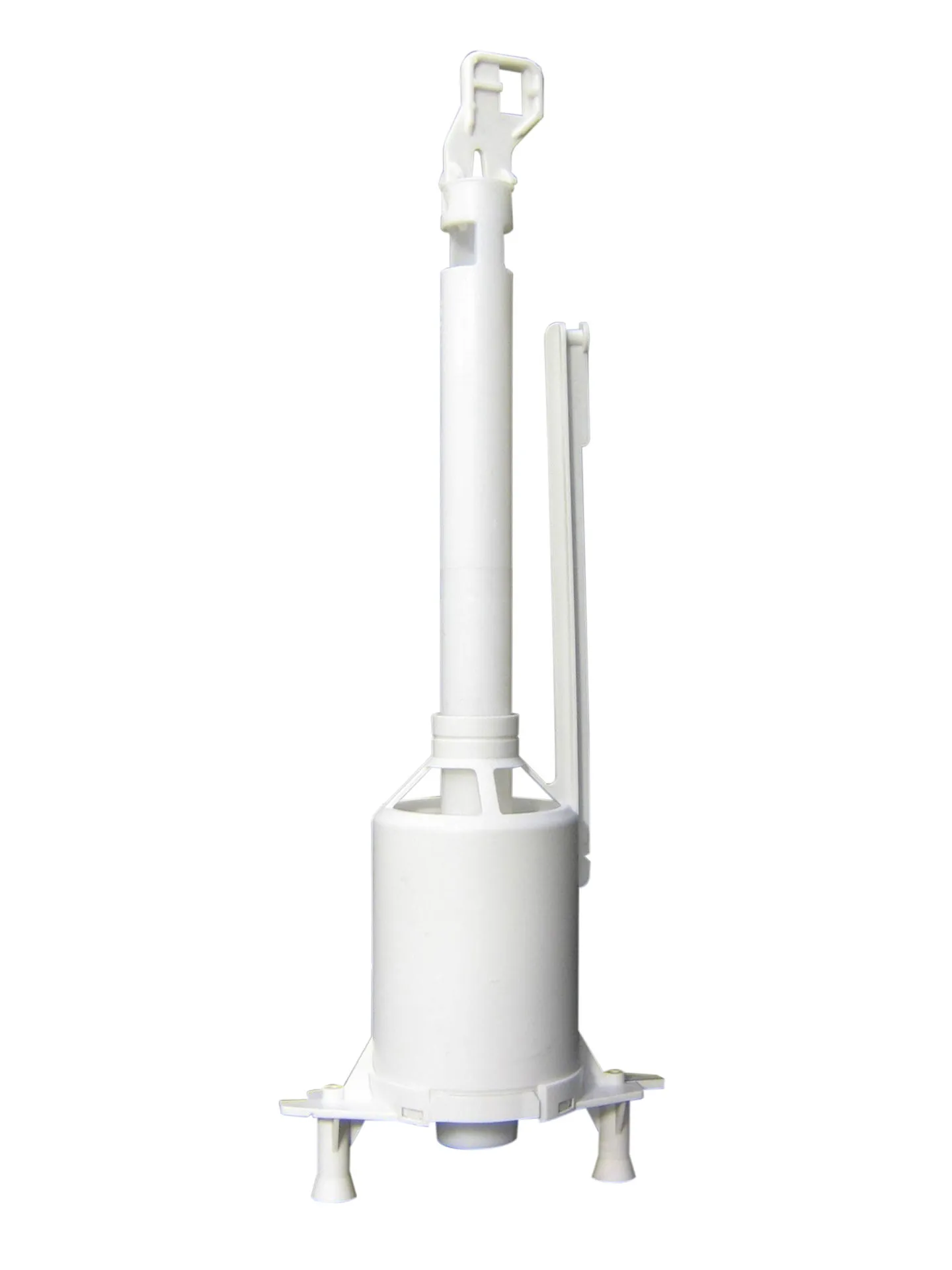

8050800527 | Flush valve with rubber gasket |
![]() |
8050410414 | Cistern cover with a function button, pergamon |
![]() |

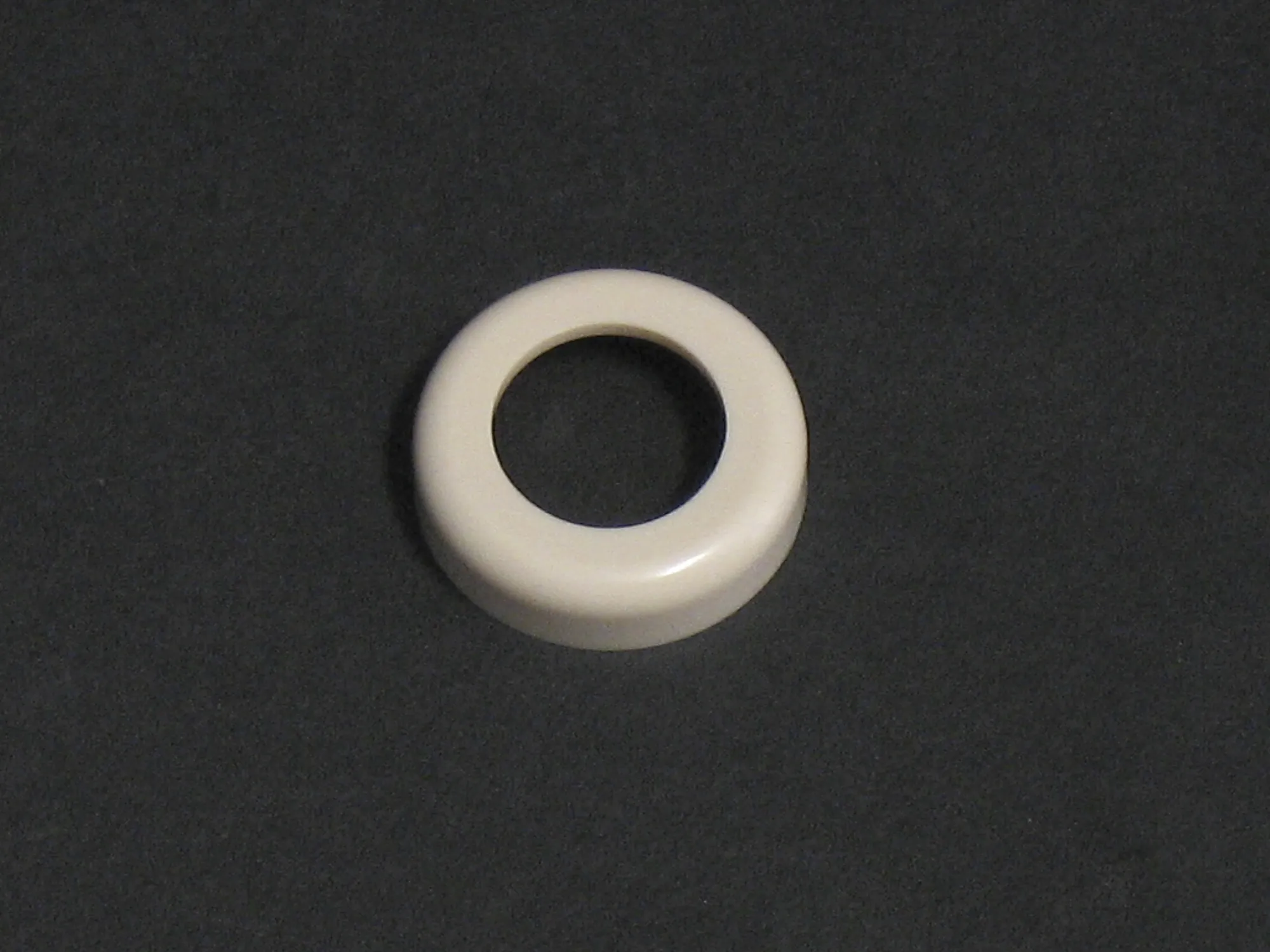

8050886394 | Closing cap, beige |
![]() |

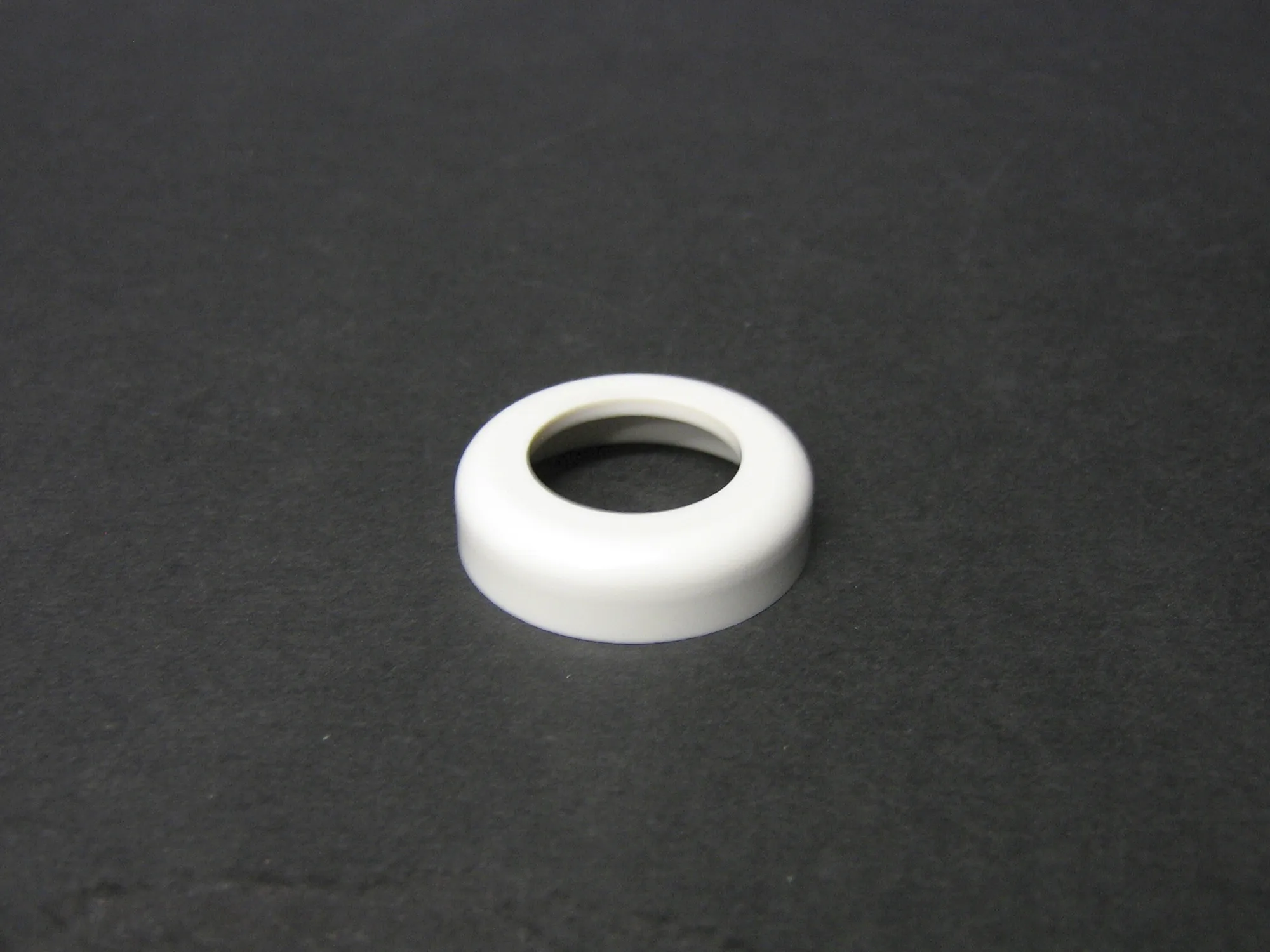

8050886379 | Closing cap, manhattan |
![]() |

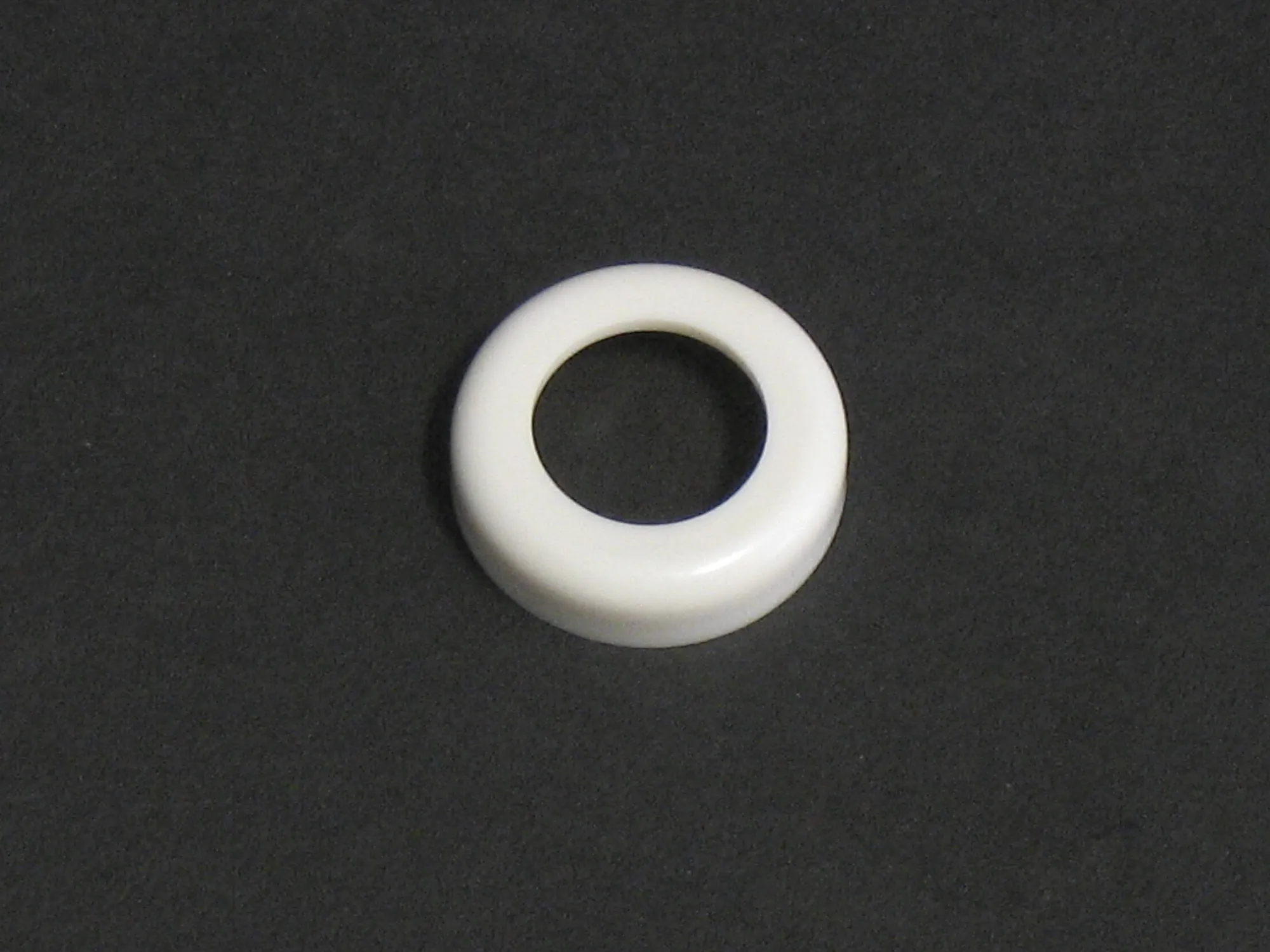

8050886397 | Closing cap, pergamon |
![]() |

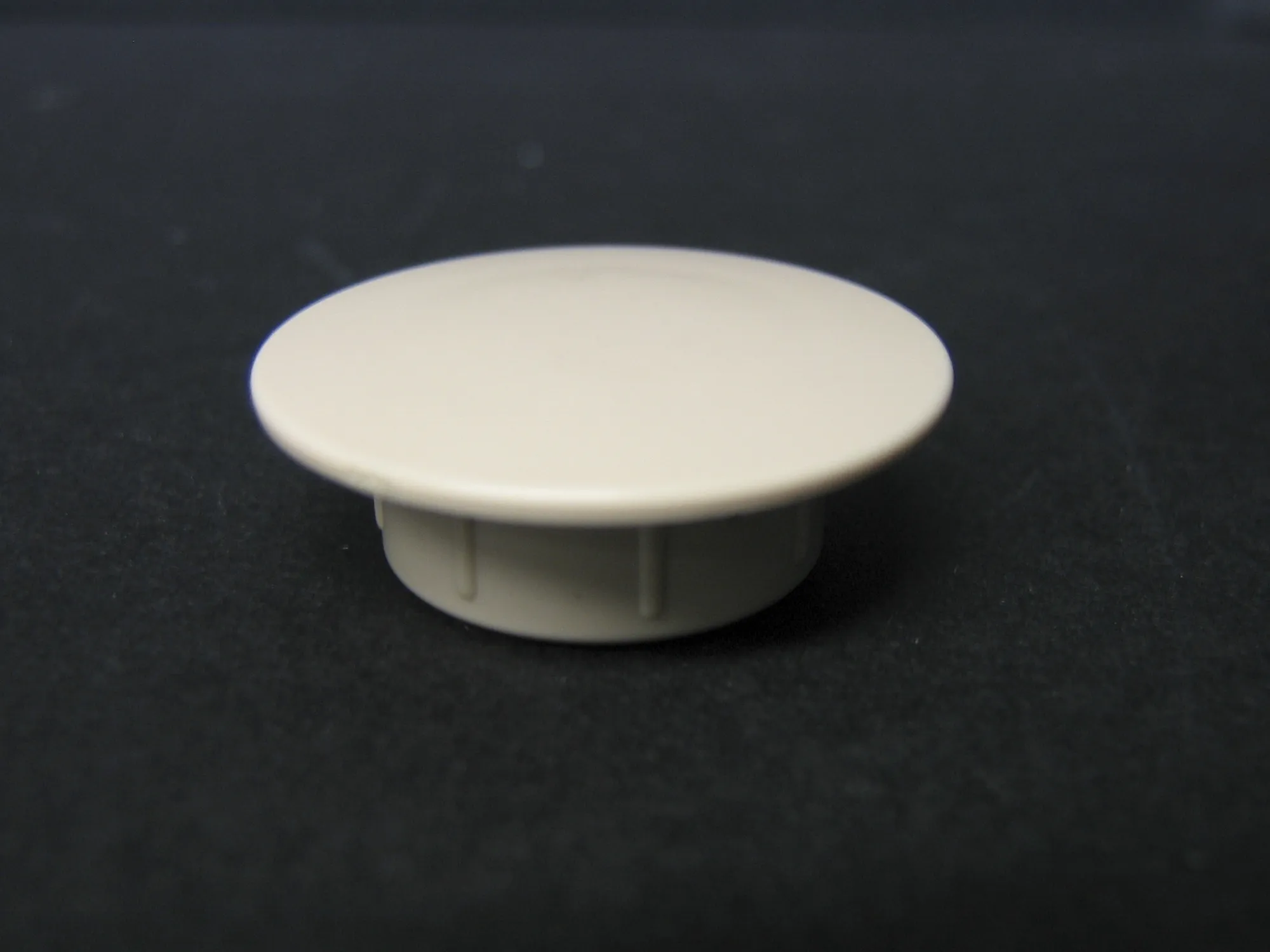

8050882482 | Closing cap, beige |
![]() |

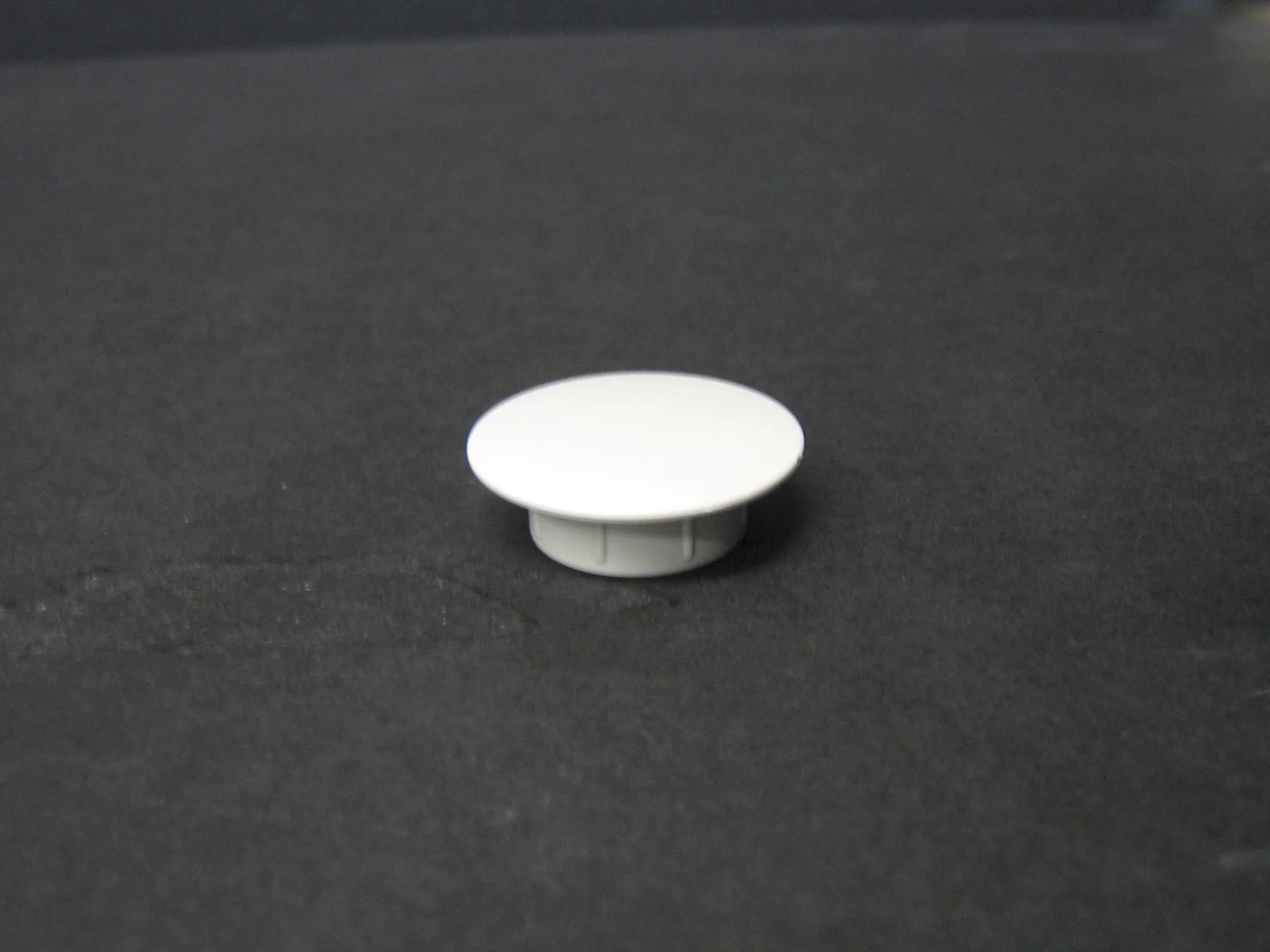

8050886249 | Closing cap, manhattan |
![]() |

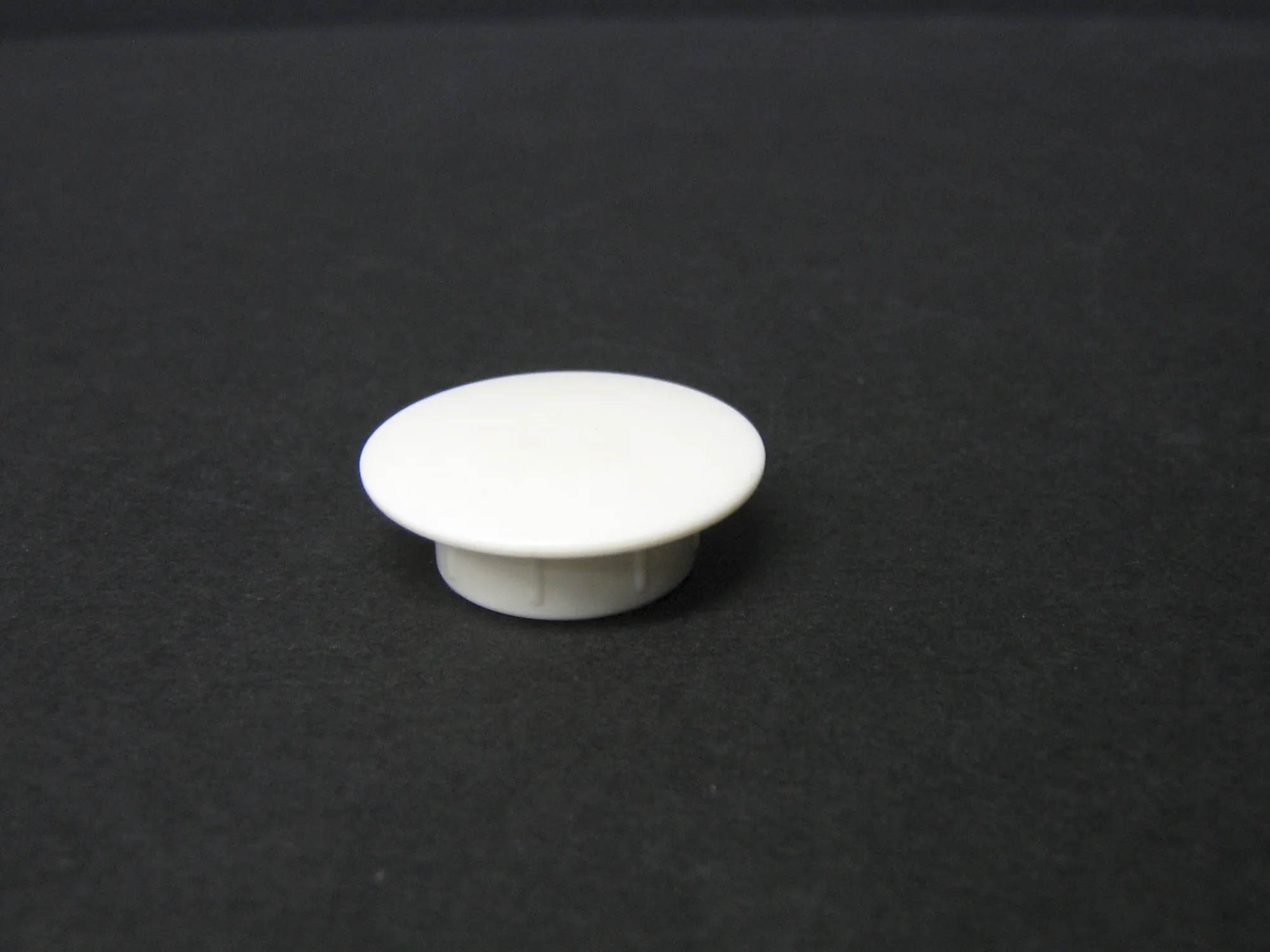

8050886237 | Closing cap, pergamon |
![]() |

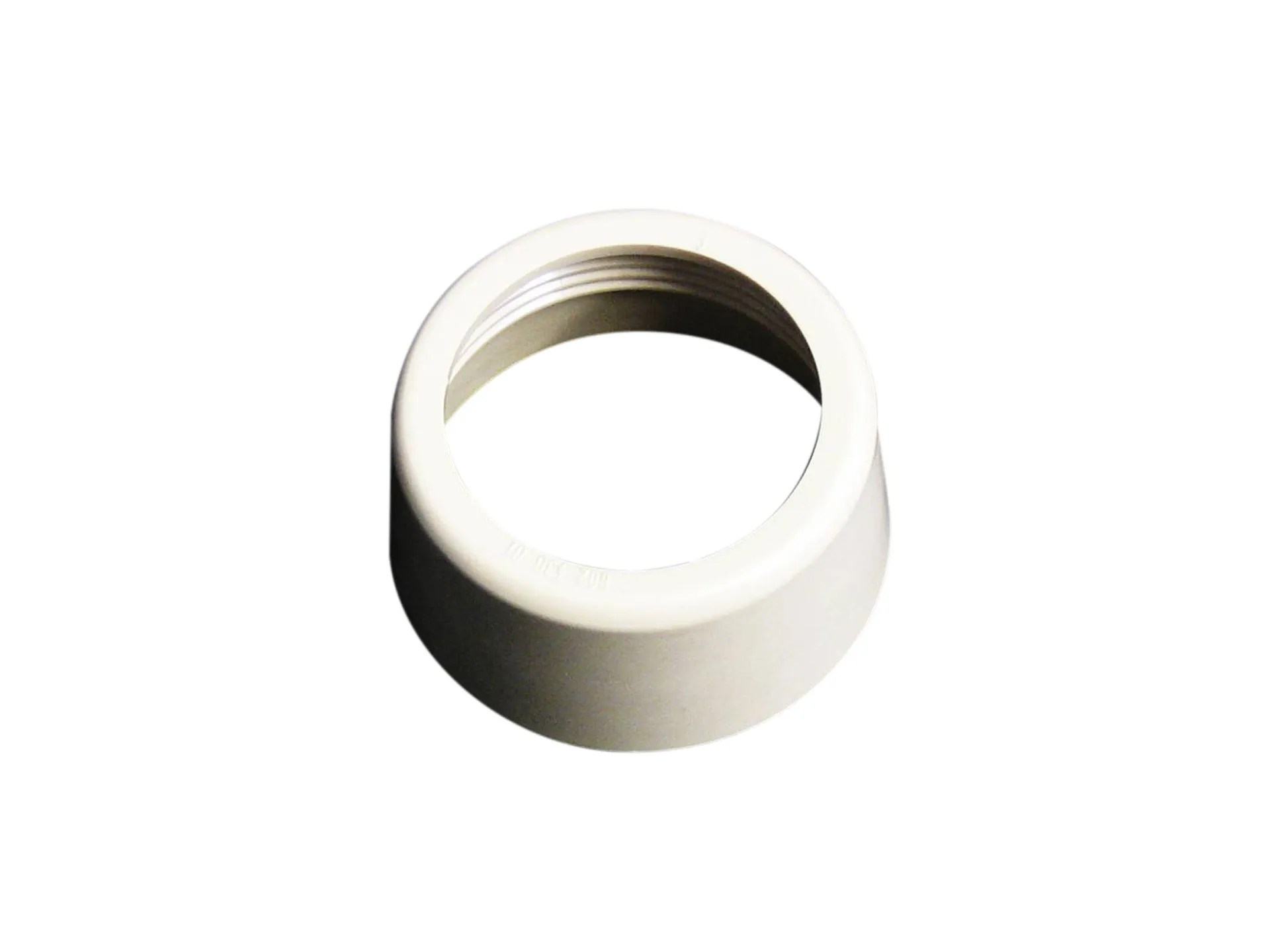

8050882432 | Nut for flush pipe, beige |
![]() |
8050882224 | Nut for flush pipe, manhattan |
![]() |

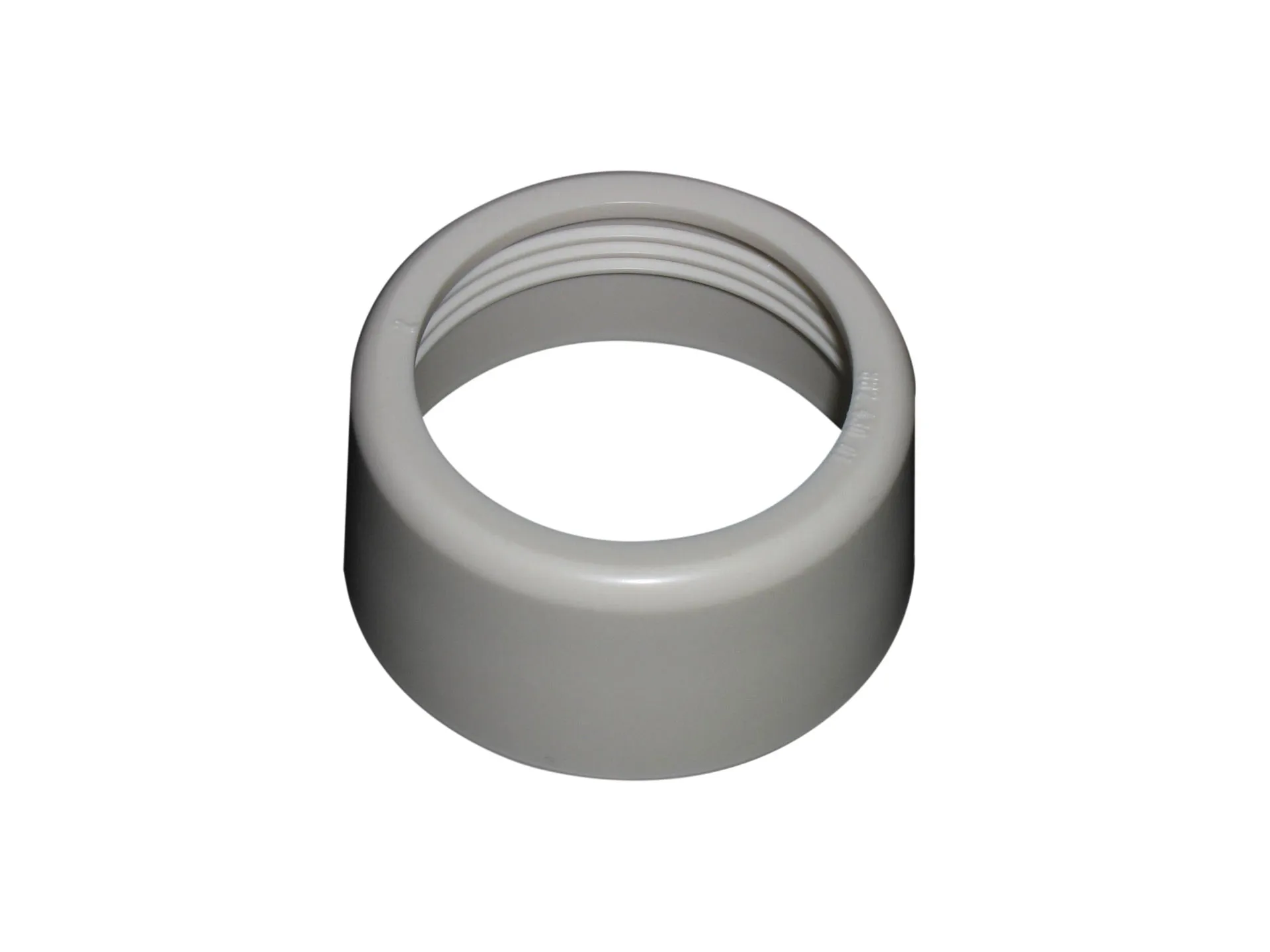

8050882227 | Nut for flush pipe, pergamon |
![]() |
8050110103 | Flush pipe elbow, 230 x 210 mm, beige |
![]() |
8050110110 | Flush pipe elbow, 230 x 210 mm, manhattan |
![]() |

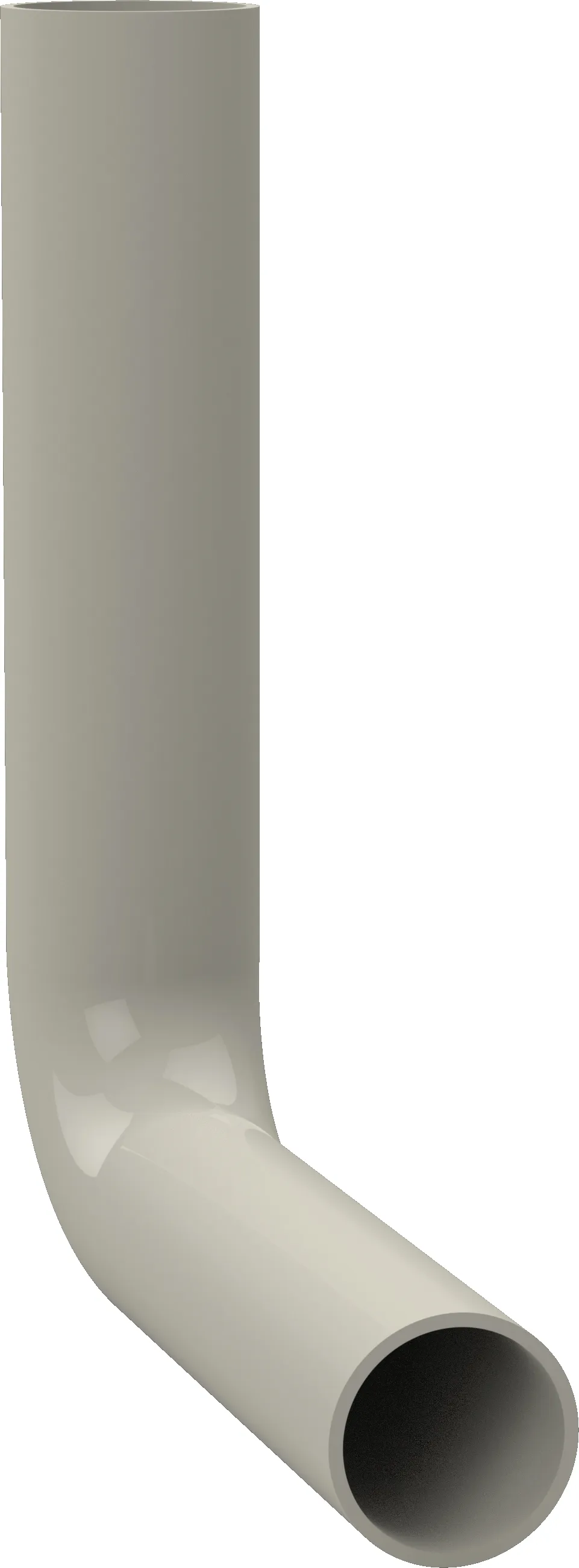

8050110114 | Flush pipe elbow, 230 x 210 mm, pergamon |
![]() |

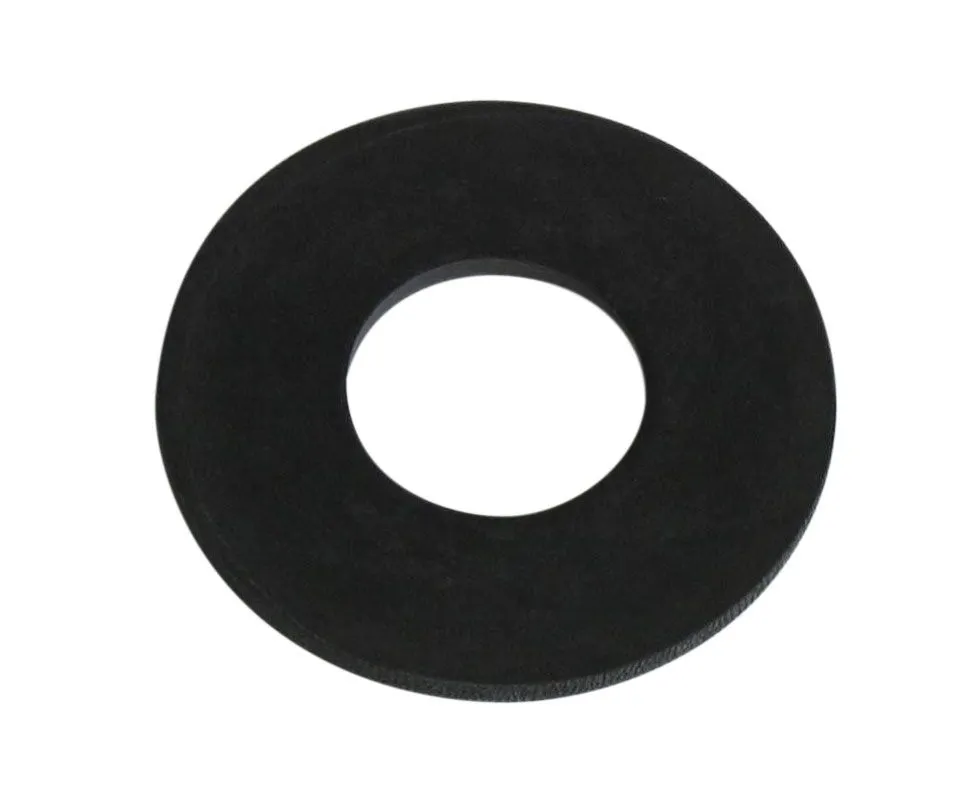

8050390037 | Bag of rubber gaskets for flush valve 28 x 65 x 3 (5 pc.) |
![]() |

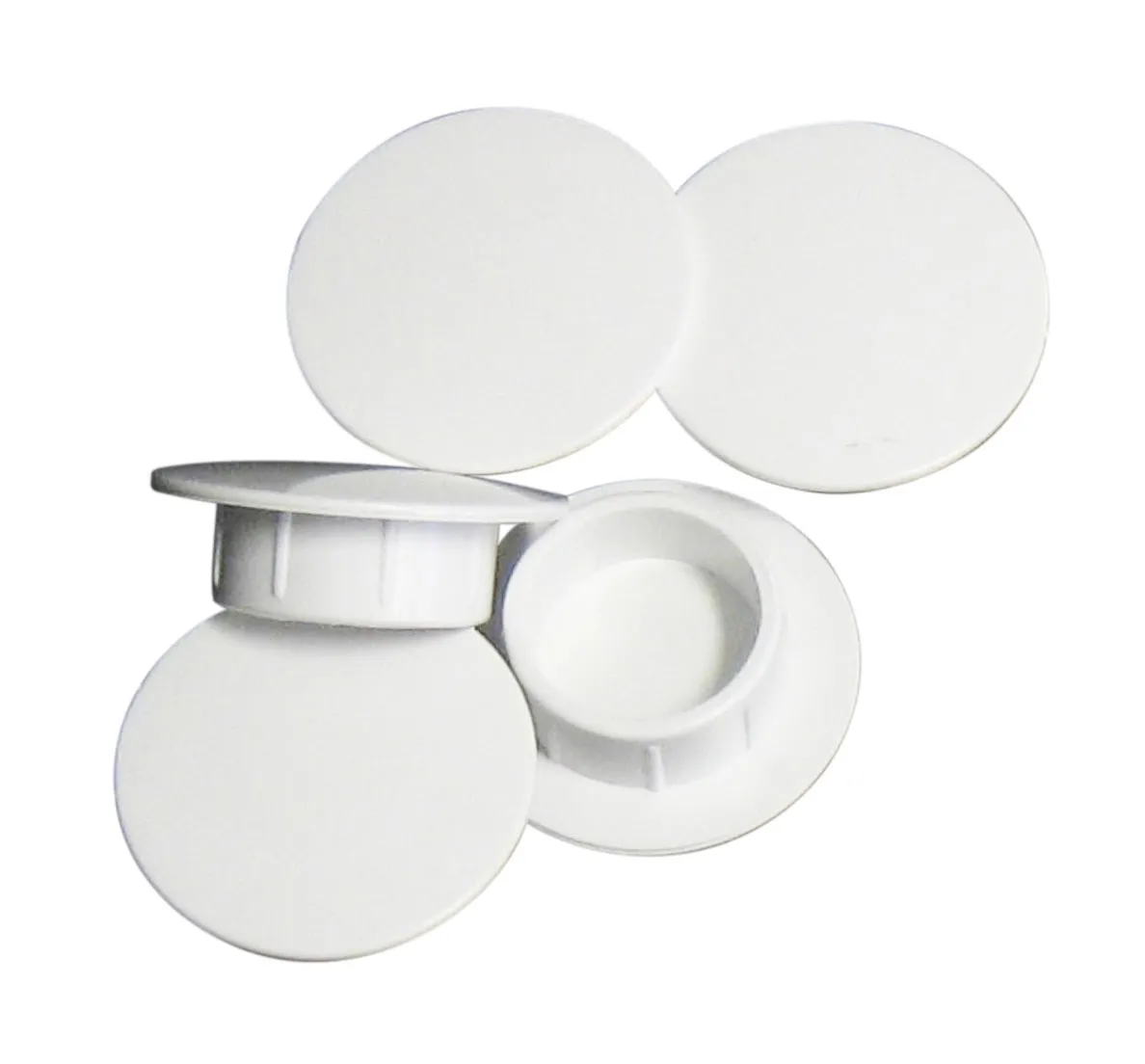

8050390067 | Bag of decoration caps, white (5 pc.) |
![]() |

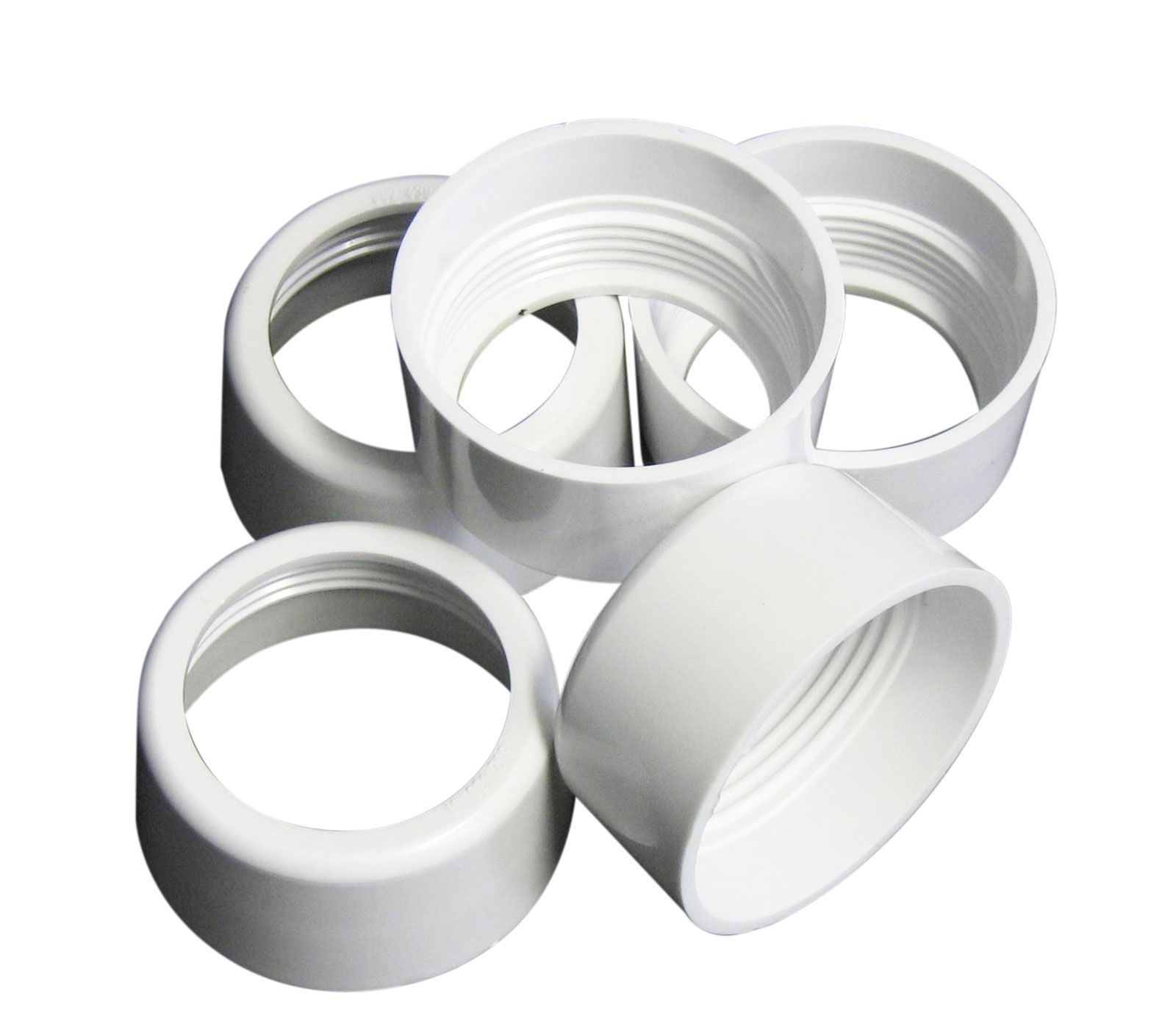

8050390002 | Bag of nuts for flush pipe white (5 pc.) |
![]() |

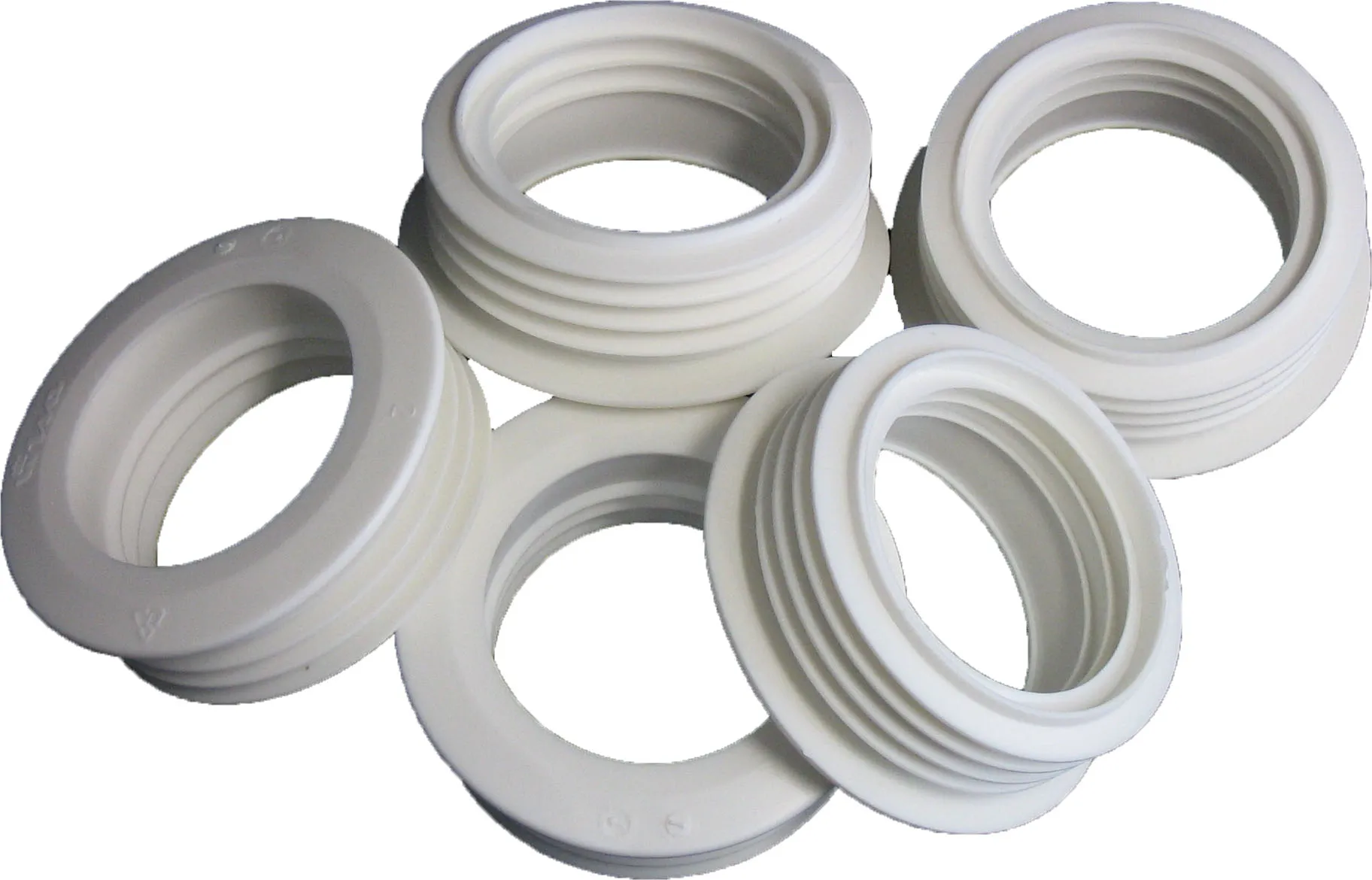

8050390093 | WC flush pipe connector seals (5 pcs) |
![]() |

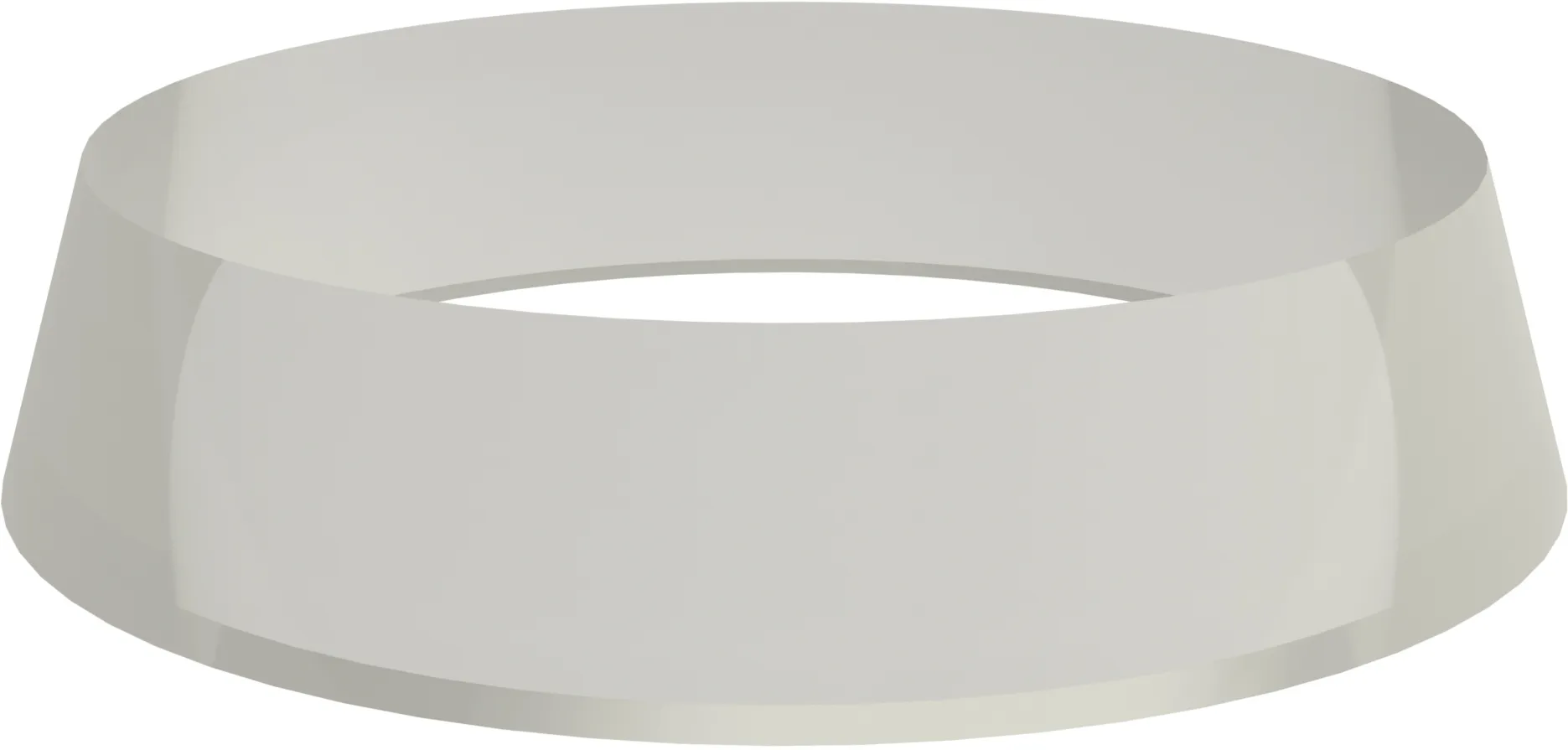

8050390025 | Bag of gaskets for flush pipe (5 pc.) |
![]() |
