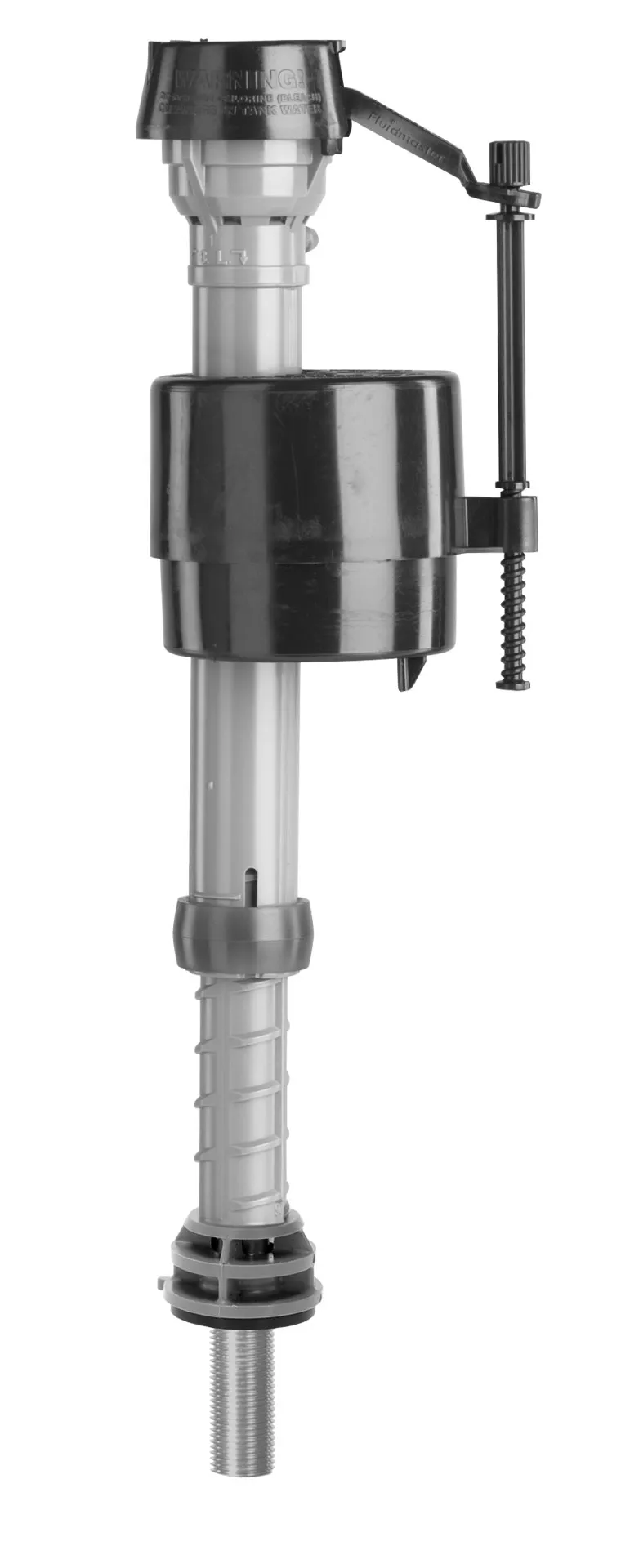

Fill valve 400 G 3/8 plastic

The number one best-selling fill valve globally, meticulously designed for durability, incorporates groundbreaking pilot fill valve technology that harmonizes seamlessly with water pressure instead of resisting it. This bottom-mounted valve offers exceptional adaptability, making it suitable for a wide range of applications.

Product number: 400E-027-P25
EAN: 3838912063465


  • Suitable for exposed plastic and ceramic flushing cistern with bottom water connection
  • Bottom mount valve
  • Adjustable valve height (230 – 355 mm)
  • Suitable for high and low pressure
  • Extremely quiet operation (Class 1)
  • Fast filling time
  • Unique self-cleaning valve mechanism
  • Fast and easy to install
  • Proven and reliable quality
  • Consistent performance
  • Plastic shank G 3/8 x 43 mm

Connection: External thread
Eccentric connection: No
Height: 230 mm
KIWA certified: No
Length of threaded connection: 43 mm
Material of connection: Brass
Max. pressure: 10 bar
Min. pre-pressure: 0.5 bar
Size of threaded connection: 16.66 mm
Size of threaded connection (inch): 3/8 inch
Sound class according to EN ISO 3822: Group I, <=20 dB(A)
