FILL VALVE 747 G 3/8 BRASS

The whisper quiet Fluidmaster 747 Series Fill Valve boasts a compact and modern design. The 747 works efficiently with high or low water pressure. The high level of accuracy provided by the valve makes for an ideal flush volume in any toilet. The durable parts stand up to years of flushes, while the narrow profile allows a proper fit in slim-line WC cisterns with no adjustment needed.
Quality is assured by factory testing of every valve, living up to the highest Fluidmaster quality standards.

Product number: 747E-037-P20
EAN: 3838912063502


  • Suitable for concealed, exposed and ceramic flushing cisterns
  • Durable hydraulic filling valve
  • Compact filling valve
  • Side mount valve
  • Suitable for high and low pressure (restrictor added in the shank)
  • Extremely quiet operation (Class 1)
  • Short filling time
  • Water level adjusting screw
  • Anti-corrosion material
  • Unique self-cleaning valve mechanism
  • Fast and easy to install
  • Proven and reliable quality
  • Consistent performance
  • Brass shank G 3/8 x 39 mm
  • Downloads

    Connection: External thread

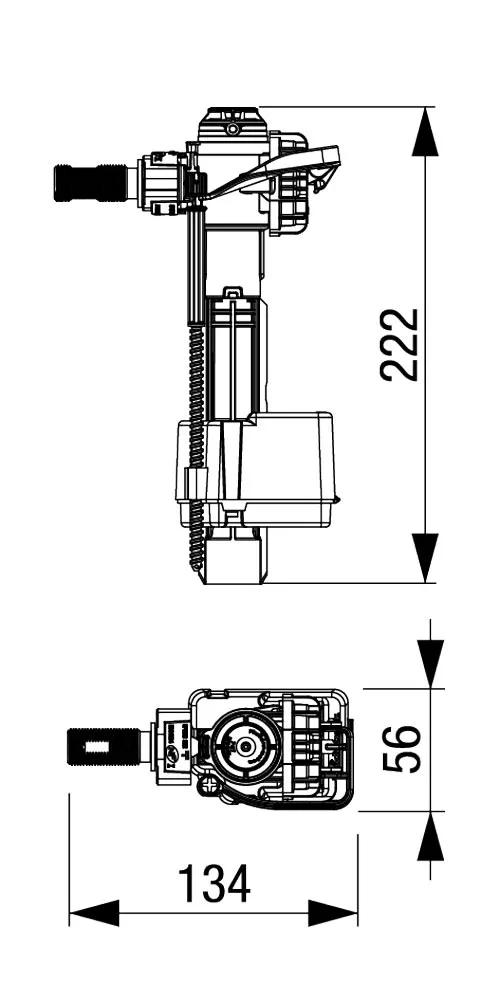

    Depth: 131 mm
    Eccentric connection: No
    Height: 222 mm
    KIWA certified: Yes
    Length of threaded connection: 33 mm
    Material of connection: Brass
    Max. medium temperature (continuous): 30 °C
    Max. pressure: 10 bar
    Min. pre-pressure: 0.5 bar
    Noise class: Group I, , Group I,
    Size of threaded connection (inch): 3/8 inch
    Sound class according to DIN-52 218: Group I,
    Sound class according to EN ISO 3822: Group I,
    Width: 56 mm
