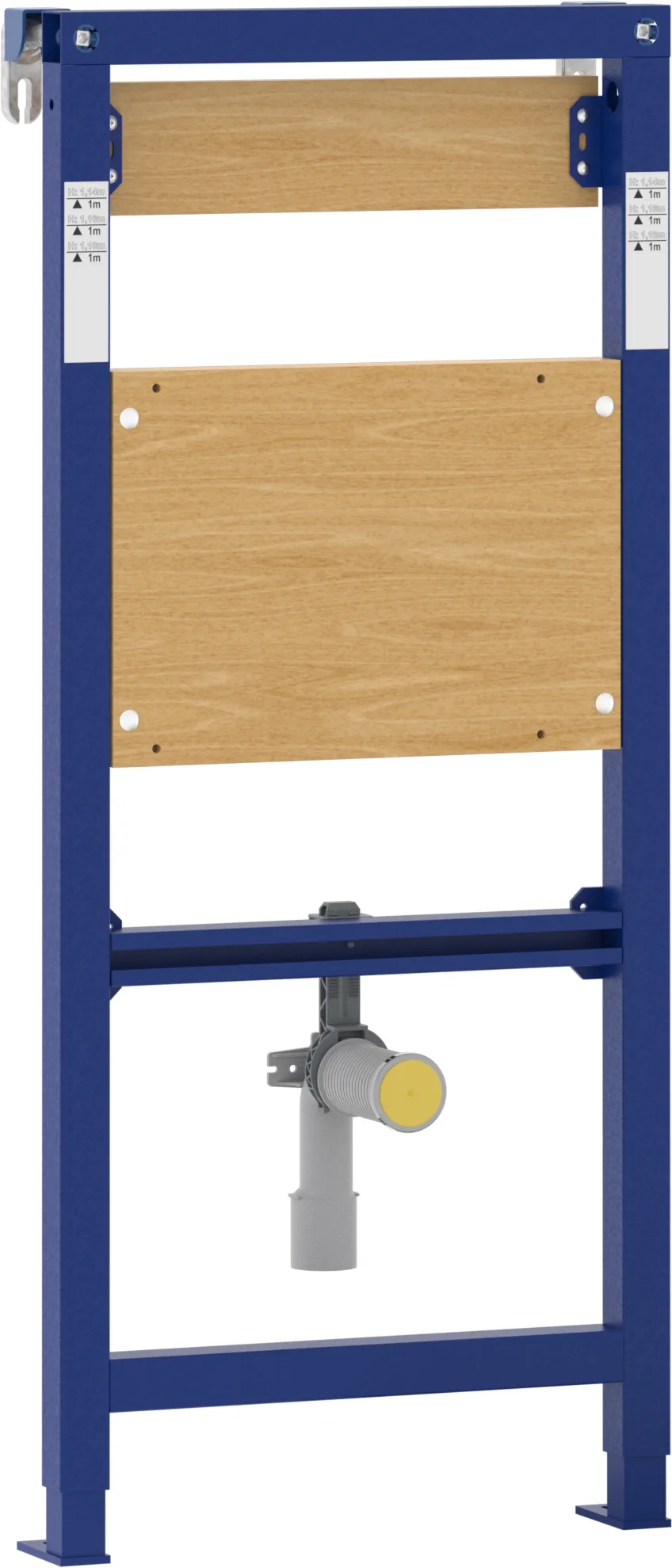

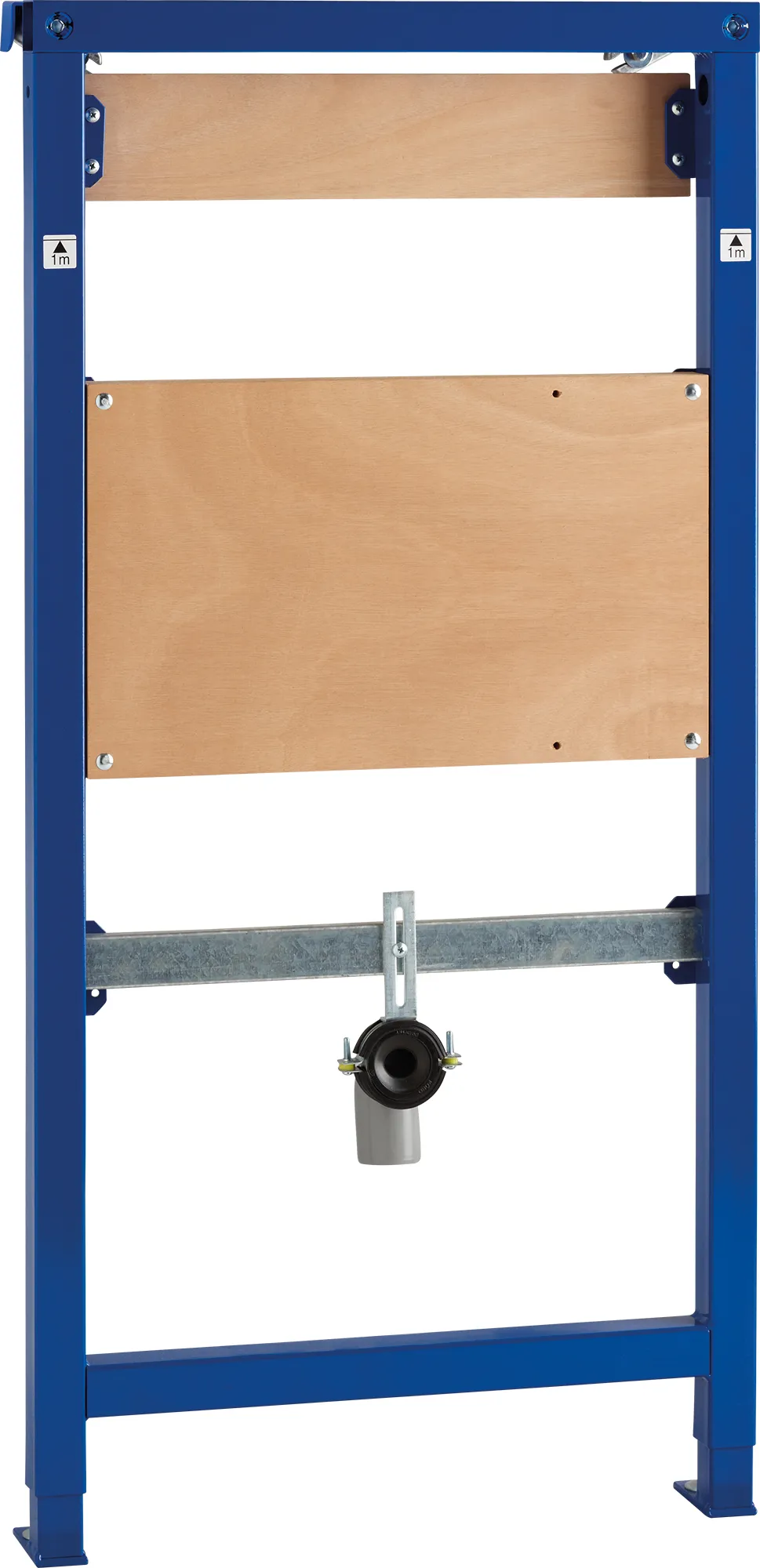

Sink frame

In addition to concealed cisterns and urinal elements, we provide elements for various other applications that offer versatile solutions for different construction projects, whether they involve new buildings or renovations, whether in the private or public sector.
Our element ensure a secure and efficient installation for support bars, urinal panels, etc.

Product number: 8050452724
EAN: 8711778121119


  • Support frame for installation of a sink
  • Blue powder coated frame
  • Adjustable feet (0-200 mm)
  • Pre-assembled wall fixation kit 575 mm wide
  • Incl. fixation materials, elbow 50 mm
  • Available on demand

Adjustable depth: Yes
Adjustable height: Yes
Adjustable sink height: Yes
Adjustable width: No
Depth: 135 to 200 mm
Height: 1140 to 1380 mm
Material: Steel
Outer pipe diameter drainage: 50 mm
Self-bearing construction: Yes
Suitable for drywall: Yes
Suitable for sanitary installation wall system: No
Suitable for solid wall: No
Surface protection: Coated
Tap connecting plate adjustable: Yes
Width: 500 to 500 mm
With built-in siphon: No
With drainage bend: Yes
With mounting material for the element: Yes
With sink attachment materials: No
With tap connecting plate: Yes
