WISA x IPEE XS WC frame 118 cm
Our smart toilet has a number of advantages compared to traditional automatically flushed toilets. The system does not flush unnecessarily and is equipped with blocking detection to prevent flooded floors. You may think logically, but that has not been the case until now. To simplify the selection and installation, we have developed packages: combinations of the best available technology and carefully selected ceramics. The best of both worlds, combined. Each package is equipped as standard with all the features that modern plumbing requires. However, we understand that sometimes there are even more wishes. That is why all our products are available in three versions: Basic, Plus and Premium. The IPEE XS WC installation element is installed in the structural work phase and the toilet pack of your choice in the finishing phase.
Product number:
8050452734
EAN:
8711778220416
- Pre-installed WC cistern with support frame
- Blue powder coated frame
- Adjustable feet (20 cm)
- Extensible up to 130 cm
- Dual flush 3/6 L or 6 L single flush
- Flush volume adjustable between 6 and 7.5 L
- Insulated against condensation
- Quiet hydraulic float valve
- Pre-installed stop valve
- Water connection 1/2”
- Pre-assembled wall fixation kit
- Pre-assembled transit for Ipee electronics
- Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 mm
- Incl. insulation kit for pan to wall
- Optional: WISA X IPEE toilet packs
Downloads
| Adjustable depth: | Yes |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | Yes |
| Adjustable toilet height: | No |
| Adjustable width: | No |
| Battery power supply: | No |
| Centre distance of toilet attachment: | 18 cm and 23 cm |
| Declaration of Performance: | 14055 |
| Depth: | 140 to 200 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 6 l |
| Frame suitable for wc with offset > 60cm: | Yes |
| Height: | 1180 to 1380 mm |
| KIWA certified: | Yes |
| Load capacity >= 400 kg according to EN 997: | Yes |
| Material: | Steel |
| Material flushing reservoir: | Plastic |
| Max. flushing water quantity: | 7.5 l |
| Min. flushing water quantity: | 3 l |
| Min. shelf height: | 1180 mm |
| Number of tap water connections: | 1 |
| Outer pipe diameter drainage: | 90 mm |
| Programmable with remote control: | No |
| Quality class flushing reservoir: | Polypropylene (PP) |
| Reservoir type: | WISA XS |
| Self-bearing construction: | Yes |
| Series: | XS |
| Size of tap water connection: | 1/2 inch |
| Sound class according to EN ISO 3822: | Group I, |
| Spacer under reservoir: | No |
| Suitable for drywall: | Yes |
| Suitable for electrical operation: | Yes |
| Suitable for flushing flow throttling: | Yes |
| Suitable for front operation: | Yes |
| Suitable for infrared operation: | Yes |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | No |
| Suitable for radar operation: | No |
| Suitable for sanitary installation wall system: | No |
| Suitable for shelf operation: | No |
| Suitable for shower toilet: | No |
| Suitable for solid wall: | No |
| Suitable for toilets with a reduced contact area: | Yes |
| Surface protection: | Coated |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Width: | 380 to 380 mm |
| With anti-condensation insulation: | Yes |
| With bracket suitable for floor mounting: | Yes |
| With bracket suitable for high wall mounting: | Yes |
| With bracket suitable for low wall mounting: | No |
| With building management system connection: | No |
| With contact sound insulation set: | Yes |
| With control panel: | No |
| With drainage bend: | Yes |
| With electrical connection: | No |
| With fan connection: | No |
| With flushing bend: | Yes |
| With front cladding: | No |
| With inlet and outlet fittings: | Yes |
| With mounting material for the element: | Yes |
| With mounting material for the toilet: | Yes |
| With stop valve: | Yes |
| Product number: | Description | Image |
|---|---|---|
| 8050801525 | Flush valve |
|
| 8050801522 | FLUSH VALVE DFF |
|
| 8050801527 | FLUSH VALVE, CISTERN 4/2 L |
|
| 1411988440 | FLUSH VALVE GASKET, RUBBER, 65 mm, hole 28,5 mm, black |
|

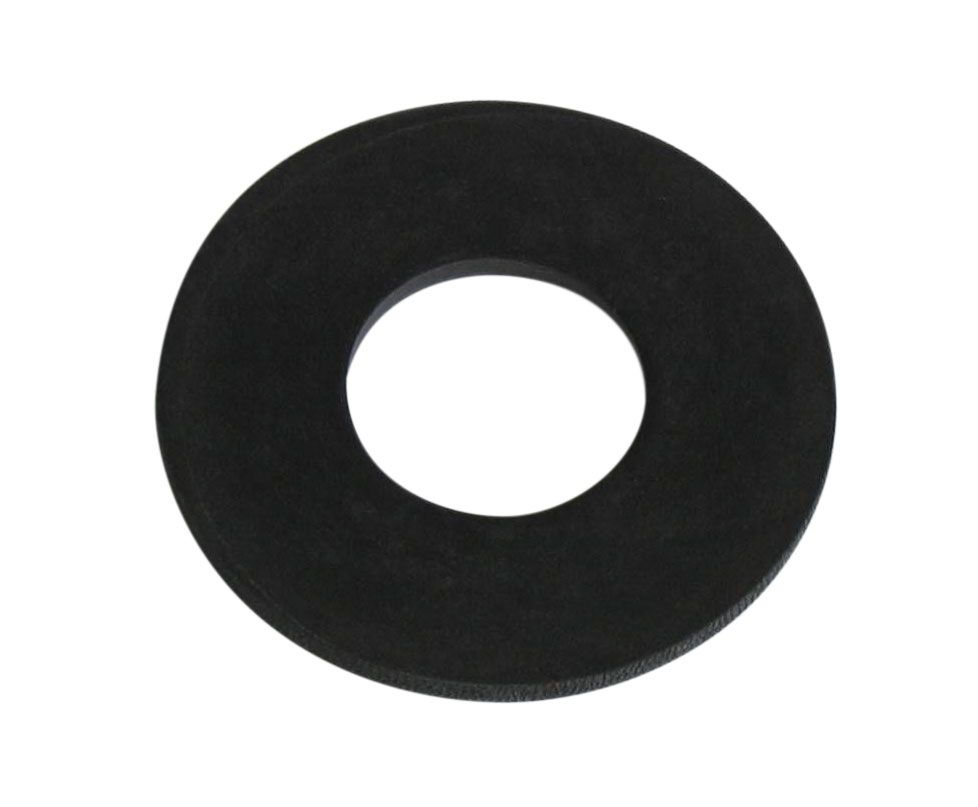

| 8050390037 | BAG OF RUBBER GASKETS FOR FLUSH VALVE 28 x 65 x 3 (5 pc.) |
|
| 8050887175 | TIGHTENING NUT |
|
| 8050887113 | CISTERN LID |
|
| 8050887079 | BRIDGE FOR FILL VALVE |
|
| 8050390034 | CLAMP WITH CONTROL HOCKS, MECHANICAL |
|
| 8050390032 | CLAMP WITH CONTROL HOCKS, PNEUMATIC |
|
| 8050390051 | SF CLAMP WITH CONTROL HOCKS |
|
| 8050390052 | DFF CLAMP WITH CONTROL HOCKS |
|
| 8050390108 | SET OF FIXATION PINS AND CONTROL PINS FOR FLUSH INTERRUPTION PLATES |
|
| 8050390109 | MOUNTING AND REGULATION PIN SET FOR DUO PLATES |
|
| 8050887097 | CLAMP FOR MOUNTING THE DRAIN ELBOW |
|
| 8050887145 | INSPECTION OPENING PROTECTION, front |
|
| 8050887355 | FLUSH PIPE WITH TONGUE |
|
| 8050390061 | SET OF RUBBER SEALS FOR 90 mm DRAIN PIPE AND DRAIN ELBOW |
|
| 8050390090 | DISCHARGE ELBOW Ø 90/90 mm |
|
| 8050390091 | ADAPTER REDUCTION PIECE Ø 90/110 mm |
|
| 8050887372 | ADAPTER Ø 90/110 mm |
|
| 8050390080 | WC CONNECTION KIT Ø 90 mm, L=230mm |
|
| 8050390081 | EXTRA LONG WC CONNECTION KIT Ø 90 mm, L=300mm |
|
| 8050802329 | FLEXIBLE CONNECTION TUBE |
|
| 8050802325 | FLEXIBLE CONNECTION TUBE, EUROZONE INTERIOR |
|
| 8050802326 | FLEXIBLE CONNECTION TUBE, G 1/2 INTERIOR |
|
