Concealed cistern UP 380
Product number:
4060452802
EAN:
8711778218543
- Pre-wall installation or installation into a solid wall
- UP 380 concealed cistern
- Frontal flushing, for start-stop (6 L) or dual flushing (3/6 L)
- Flush volume adjustable between 6 and 7.5 L
- Water connection possibility on four positions
- Fully insulated against condensation
- Quiet Mechanical Fill valve (Noise class 1 ISO 3822)
- Concealed cistern equipped with pre-installed stop valve – top middle
- Water connection 1/2”
- Flush pipe L=300 mm
- Mounting brackets
- Complete installation and fixing materials
- Flushing plate needs to be ordered separately
- Possible installation of flushing plates: NEA, VERIA, ATENA, ARTE, ITEA
- EN 14055 CL 1 6 NL I VR I
| Adjustable depth: | No |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | No |
| Adjustable toilet height: | No |
| Adjustable width: | No |
| Depth: | 140 to 140 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 7.5 l |
| Height: | 470 to 470 mm |
| Material flushing reservoir: | Plastic |
| Outer pipe diameter tap water: | 20.96 mm |
| Quality class flushing reservoir: | Polyethylene (PE) |
| Size of tap water connection: | 1/2 inch |
| Suitable for electrical operation: | Yes |
| Suitable for front operation: | Yes |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | Yes |
| Suitable for shelf operation: | No |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Width: | 380 to 380 mm |
| With control panel: | No |
| With front cladding: | No |
| With inlet and outlet fittings: | Yes |
| With mounting material for the element: | Yes |
| With mounting material for the toilet: | No |
| With stop valve: | Yes |
| Product number: | Description | Image |
|---|---|---|
| 8035432572 | Fill valve HVK G 3/8 |
|
| 8050801525 | Flush valve |
|

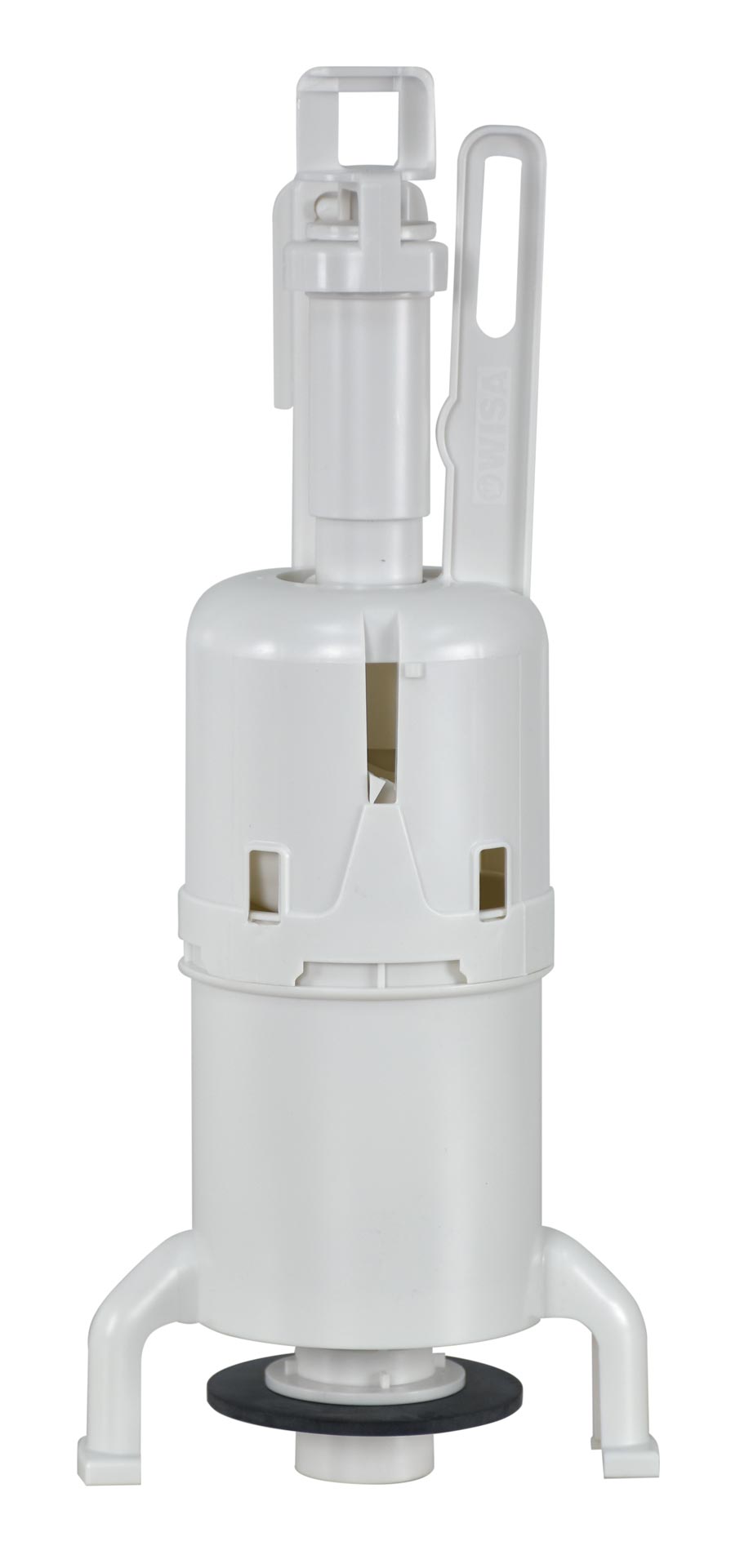

| 8050801525FM | Flush valve with rubber seal |
|
| 8050801522 | Flush valve (DFF) |
|
| 8050801527 | FLUSH VALVE, CISTERN 4/2 L |
|
| 1411988440 | Flush valve rubber gasket 28 x 65 x 3 mm, black |
|
| 8050887175 | Tightening nut |
|
| 8050887113 | Cistern lid, cisterns XS, 380, 3800 |
|
| 8050887079 | Bridge for fill valve |
|
| 8050390034 | Clamp with control hooks, cisterns 3800/380, mechanical |
|
| 8050390032 | Clamp with control hooks, pneumatic |
|
| 8050390052 | DFF clamp with control hooks |
|
| 8050390108 | Set of fixation pins and control pins for XS, 380, 3800 FI plates |
|
| 8050390109 | Mounting and regulation pin set for DUO plates, cisterns 3800/380 |
|
| 8050887097 | Clamp for mounting the drain elbow |
|
| 8050887145 | Inspection opening protection, front |
|
| 8050887355 | Flush pipe with tongue |
|
| 8050390061 | Set of rubber seals for 90 mm drain pipe and drain elbow |
|
| 8050390090 | Discharge elbow Ø 90/90 mm |
|
| 8050390091 | Adapter reduction piece Ø 90/110 mm |
|
| 8050390080 | WC connection kit Ø 90 mm, L=230 mm |
|
| 8050390081 | Extra long WC connection kit Ø 90 mm, L=300 mm |
|
| 8050802329 | Flexible hose |
|
| 8050802325 | Flexible hose with G3/8 F - G1/2 Eurocone + ball valve |
|
| 8050802326 | FLEXIBLE CONNECTION TUBE, G 1/2 INTERIOR |
|

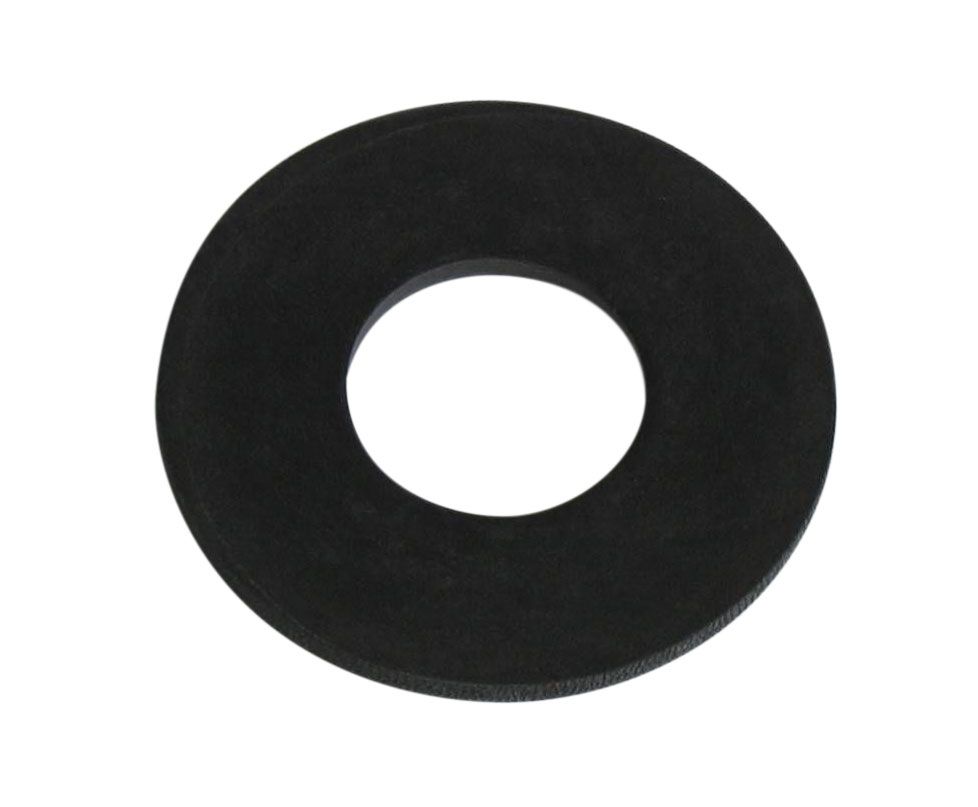

| 8050390037 | Bag of rubber gaskets for flush valve 28 x 65 x 3 (5 pc.) |
|
| 8035432795 | Fill valve HVK G 3/8 brass shank |
|
