SET WC 189 BLOCK
Product number:
383586
EAN:
3838912025326
- For installation on or in solid walls
- Galvanized WC element with pre-assembled 189 UP concealed cistern
- Frontal flushing, for start-stop (6 L) or dual flushing (3/6 L)
- Flush volume adjustable (large fl ush 5/6/7 L, small fl ush 3/4 L)
- Water connection possibility on four positions
- Fully insulated against condensation
- Quiet Mechanical Fill valve (Noise class 1 ISO 3822)
- Cistern completely protected by Styrofoam housing
- Concealed cistern equipped with pre-installed stop valve – top right
- Water connection 1/2”
- PE drain elbow Ø 90 mm with a gasket
- Eccentric PE adapter Ø 90 / 110 mm with a gasket
- Complete installation and fixing material
- Flushing plate needs to be ordered separately

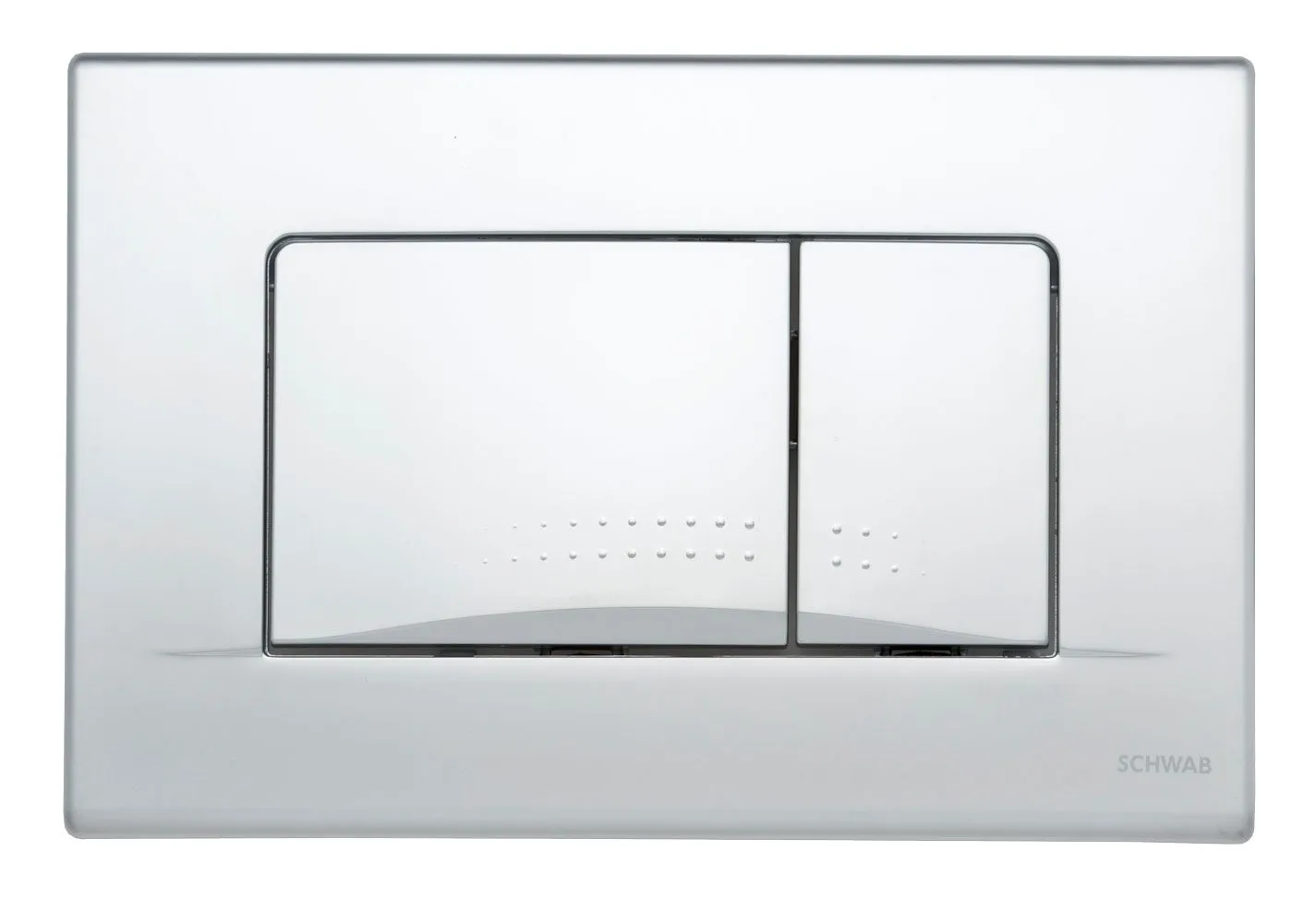

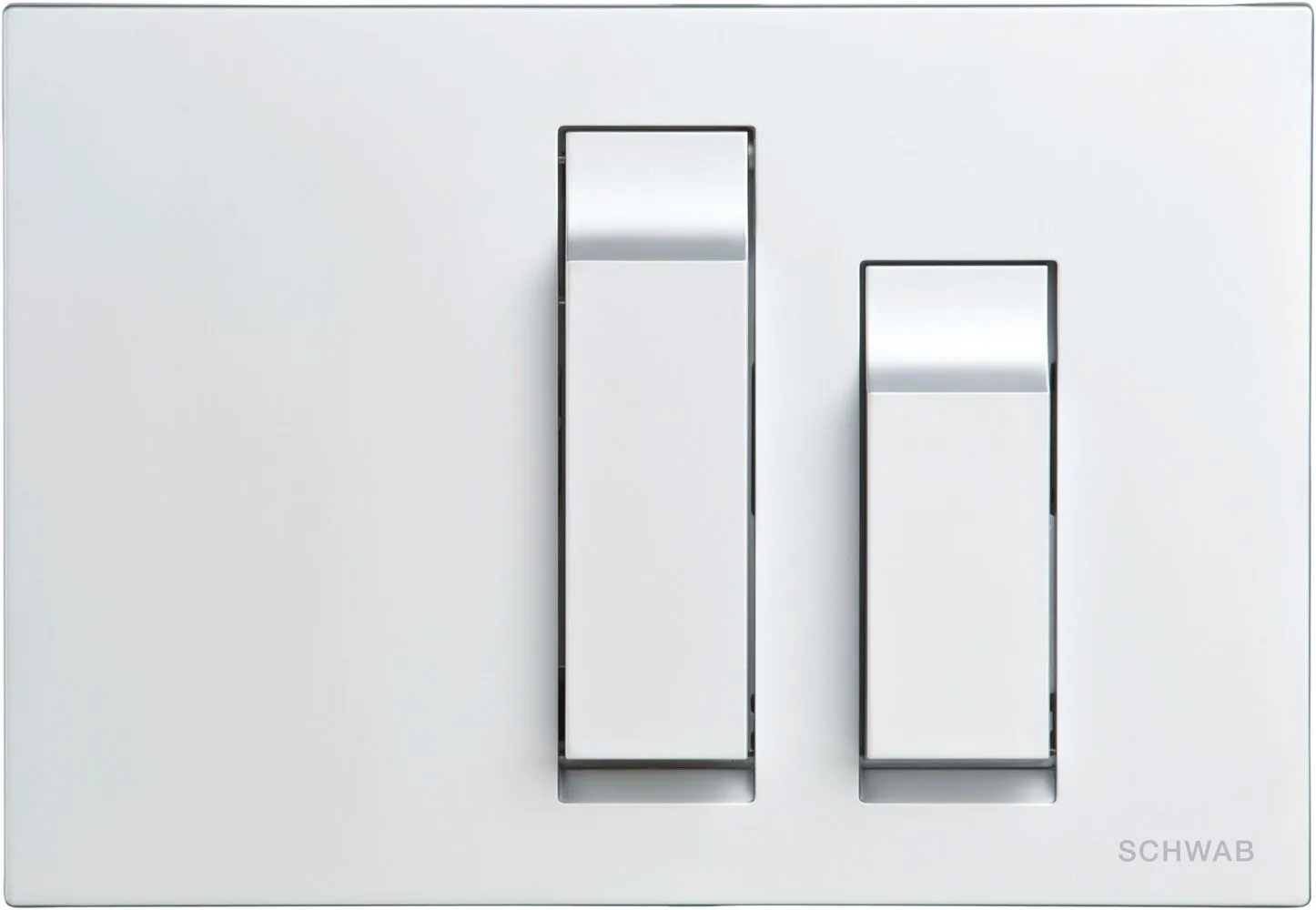

- Possible installation of flushing plates: CARO, CIRCLE, GENERA, FUTURA, VIVO, DURA, OVATE DUO, DOTS DUO
- EN 14055 - CL 1 - 6 - NL I - VR I
| Adjustable depth: | No |
|---|---|
| Adjustable flushing water quantity: | Yes |
| Adjustable height: | No |
| Adjustable toilet height: | No |
| Adjustable width: | No |
| Depth: | 136 to 136 mm |
| Flushing: | Two quantities |
| Flushing water quantity: | 3 to 7 l |
| Frame suitable for wc with offset > 60cm: | Yes |
| Height: | 830 to 830 mm |
| Material: | Steel |
| Material flushing reservoir: | Plastic |
| Outer pipe diameter connection tap water: | 20.96 mm |
| Outer pipe diameter drainage: | 110 mm |
| Programmable with remote control: | No |
| Quality class flushing reservoir: | Polyethylene (PE) |
| Reservoir type: | 189 |
| Self-bearing construction: | No |
| Series: | 189 |
| Size of tap water connection: | 1/2 inch |
| Spacer under reservoir: | No |
| Suitable for drywall: | No |
| Suitable for electrical operation: | No |
| Suitable for front operation: | Yes |
| Suitable for infrared operation: | No |
| Suitable for manual operation: | Yes |
| Suitable for pneumatic operation: | No |
| Suitable for radar operation: | No |
| Suitable for shelf operation: | No |
| Suitable for solid wall: | Yes |
| Surface protection: | Coated |
| Tap water connection: | External thread |
| Warranty: | 10 years |
| Width: | 500 to 500 mm |
| With bracket suitable for floor mounting: | No |
| With bracket suitable for high wall mounting: | No |
| With bracket suitable for low wall mounting: | No |
| With contact sound insulation set: | Yes |
| With control panel: | No |
| With drainage bend: | Yes |
| With front cladding: | No |
| With mounting material for the element: | Yes |
| With mounting material for the toilet: | Yes |
| With stop valve: | Yes |
| With supply and drainage fittings: | Yes |
