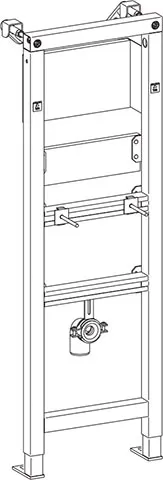

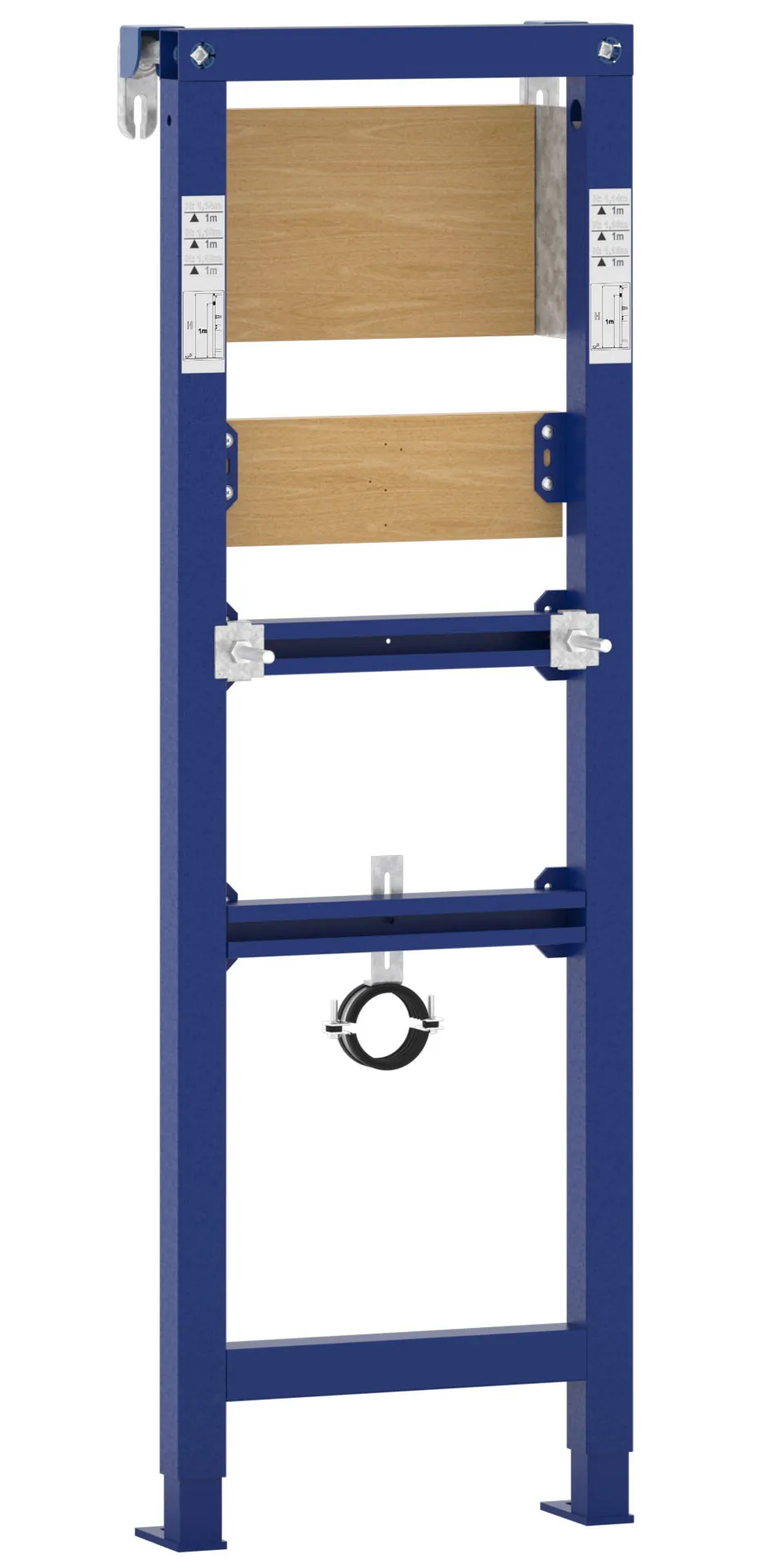

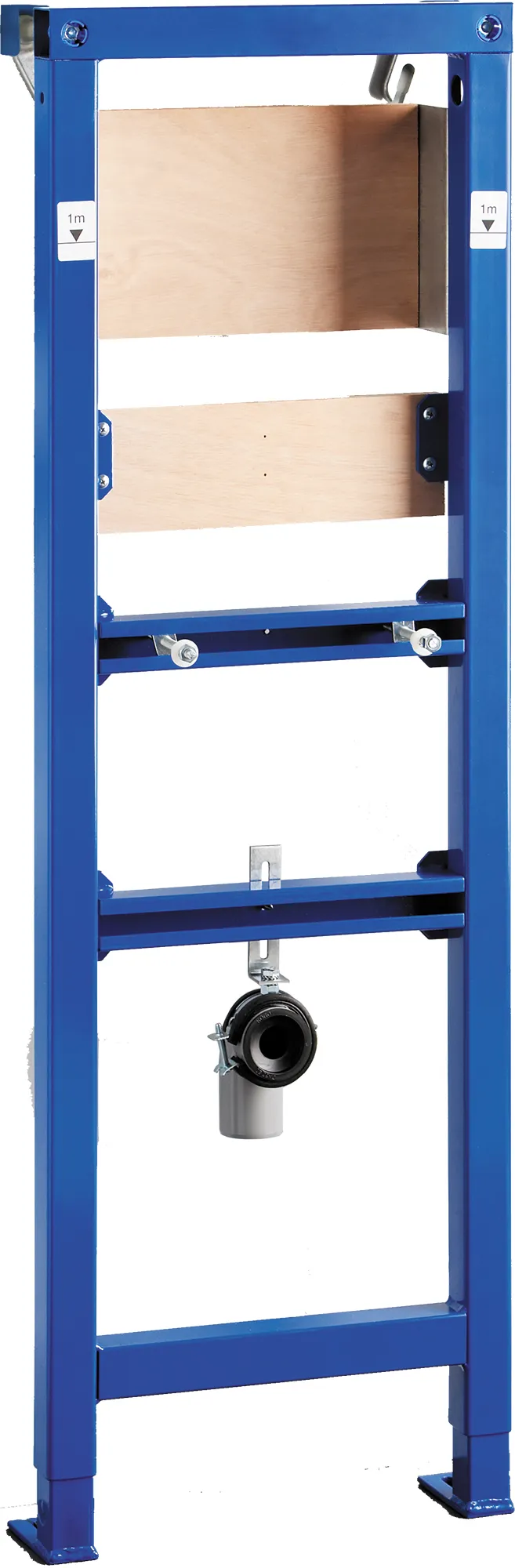

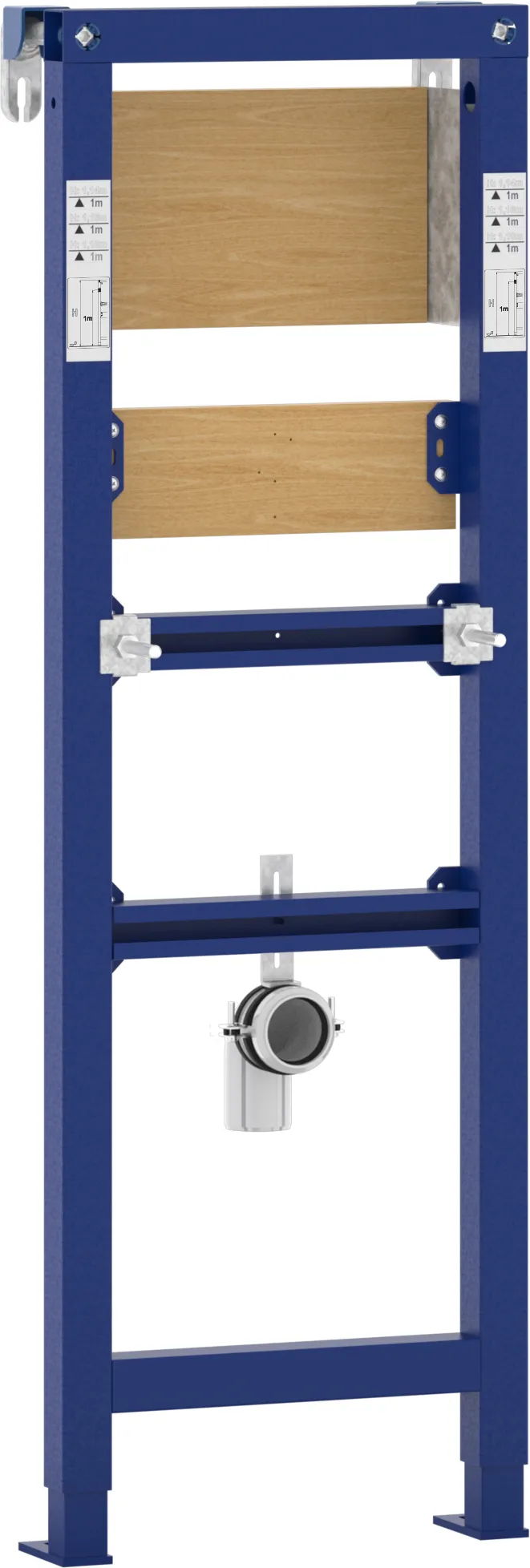

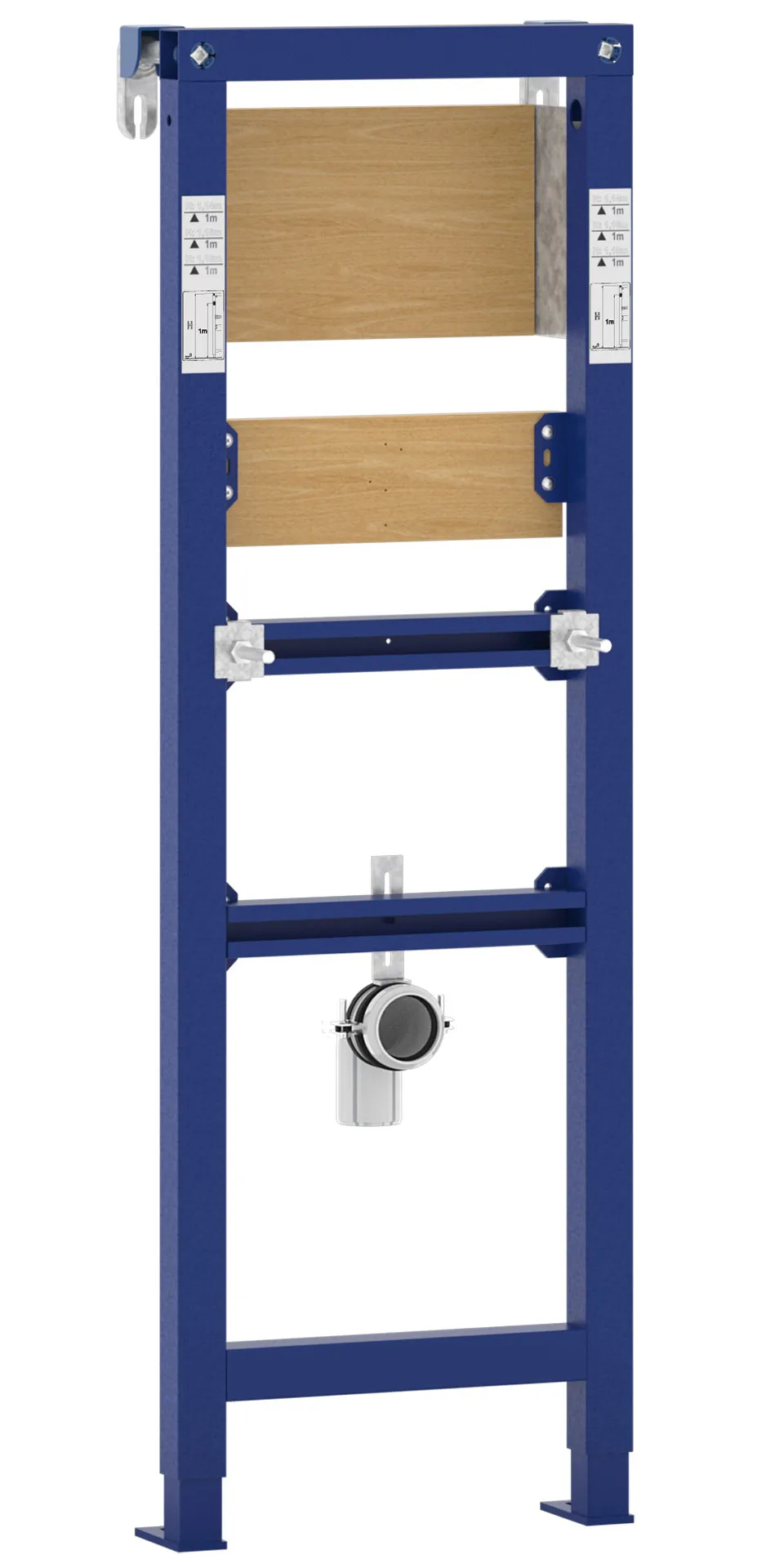

Urinal frame 380

In addition to concealed cisterns, we provide elements for various other applications that offer versatile solutions for different construction projects, whether they involve new buildings or renovations, whether in the private or public sector.
Our urinal elements ensure a reliable and efficient installation of the urinal, providing a range of features to meet various requirements.

Product number: 8050452751
EAN: 8711778118645


  • Urinal support frame
  • Blue powder coated frame
  • Adjustable feet (20 cm)
  • Pre-assembled wall fixation kit 380 mm wide
  • Incl. fixation materials, elbow 50 mm
  • Max 280 offset for urinal fixation

Adjustable depth: Yes
Adjustable height: Yes
Adjustable urinal height: Yes
Adjustable width: No
Depth: 135 to 200 mm
Height: 1140 to 1380 mm
Height of drainage bend adjustable: Yes
Material: Steel
Outer pipe diameter drainage: 50 mm
Self-bearing construction: Yes
Suitable for drywall: Yes
Suitable for sanitary installation wall system: No
Suitable for solid wall: No
Surface protection: Coated
Warranty: 10 years
Width: 380 to 380 mm
With drainage bend: Yes
With mounting material for the element: Yes
